Texas Instruments SN74LVC374ADW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

RS Stock No.:: 663-2886
Mfr. Part No.:: SN74LVC374ADW
Brand:: Texas Instruments

Texas Instruments SN74LVC374ADW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

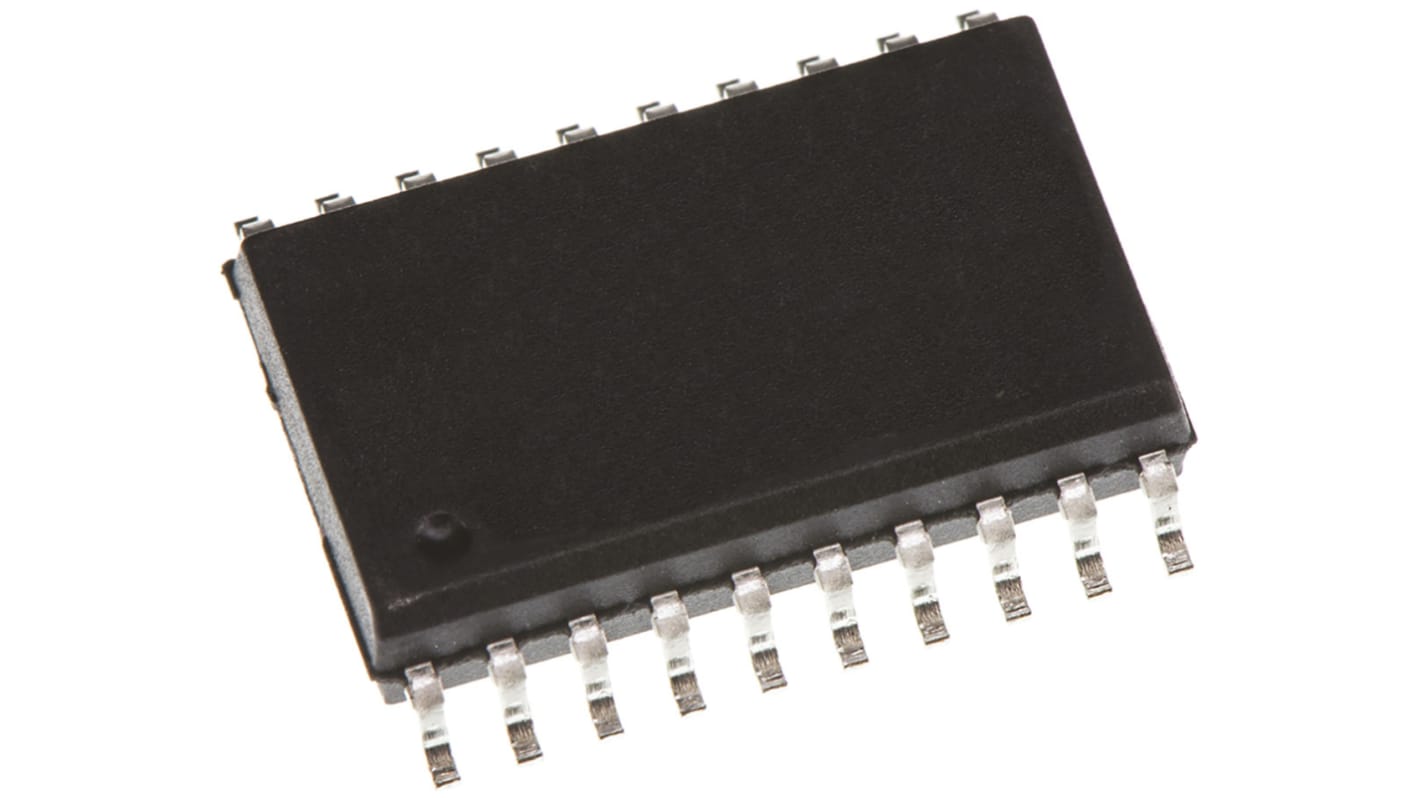

This image is representative of the product range

159 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 10)

$0.903

(exc. GST)

$0.993

(inc. GST)

Units	Per unit	Per Pack*
10 - 10	$0.903	$9.03
20 - 40	$0.877	$8.77
50 - 90	$0.851	$8.51
100 - 190	$0.824	$8.24
200 +	$0.798	$7.98

*price indicative

RS Stock No.:: 663-2886
Mfr. Part No.:: SN74LVC374ADW
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Family	LVC
Logic Function	D Type
Input Type	Single Ended
Output Type	3 State
Output Signal Type	Single Ended
Triggering Type	Positive Edge
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	20
Number of Elements per Chip	8
Maximum Propagation Delay Time @ Maximum CL	8.1 ns @ 2.7 V
Maximum Operating Supply Voltage	3.6 V
Dimensions	12.8 x 7.52 x 2.35mm
Width	7.52mm
Minimum Operating Supply Voltage	1.65 V
Propagation Delay Test Condition	50pF
Length	12.8mm
Minimum Operating Temperature	-40 °C
Height	2.35mm
Maximum Operating Temperature	+85 °C

Texas Instruments SN74LVC374ADW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

74LVC Family Flip-Flops & Latches, Texas Instruments
