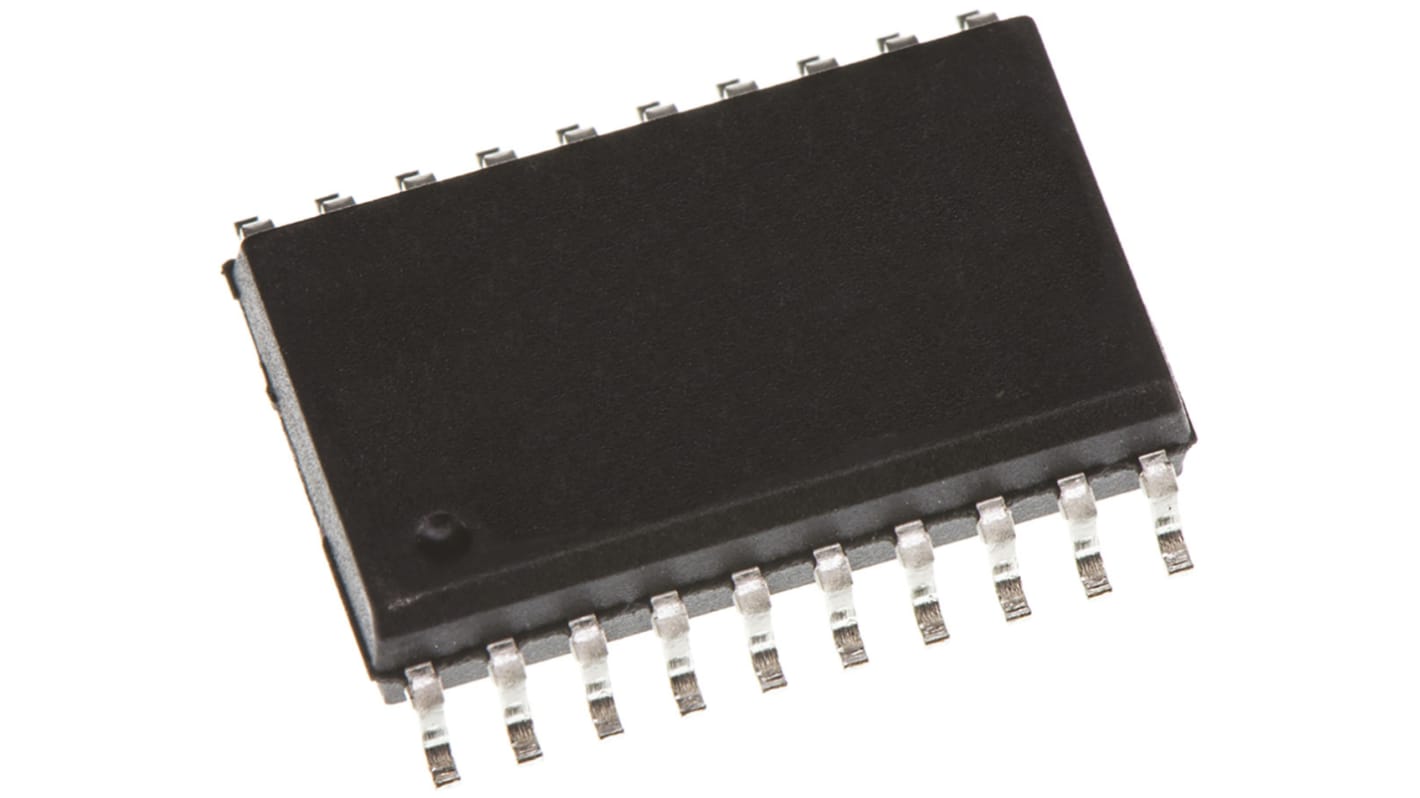

Texas Instruments SN74LVC574ADW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC
- RS Stock No.:
- 178-9067
- Mfr. Part No.:
- SN74LVC574ADW
- Brand:
- Texas Instruments
Available for back order.
Added
Price (ex. GST) Each (In a Tube of 25)
$0.782
(exc. GST)
$0.86
(inc. GST)
| Units | Per unit | Per Tube* |
| 25 + | $0.782 | $19.55 |
| *price indicative | ||
- RS Stock No.:
- 178-9067
- Mfr. Part No.:
- SN74LVC574ADW
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
74LVC Family Flip-Flops & Latches, Texas Instruments
Texas Instruments range of Flip-Flops and Latches from the 74LVC Family of Low-voltage CMOS Logic ICs. The 74LVC Family use silicon gate CMOS technology and is designed to operate at 3.3V, allowing a significant reduction in power consumption when compared to 5V systems.
Operating Voltage: 1.65 to 3.6V
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
5V tolerant inputs
Compatibility: Input LVTTL/TTL, Output LVCMOS
Latch-up performance exceeds 250 mA per JESD 17
ESD protection exceeds JESD 22
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
74LVC Family
Specifications
Attribute | Value |
|---|---|
| Logic Family | LVC |
| Logic Function | D Type |
| Input Type | Single Ended |
| Output Type | 3 State |
| Output Signal Type | Single Ended |
| Triggering Type | Positive Edge |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Number of Elements per Chip | 8 |
| Maximum Propagation Delay Time @ Maximum CL | 7.8 ns @ 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Dimensions | 12.8 x 7.52 x 2.35mm |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay Test Condition | 50pF |
| Height | 2.35mm |
| Maximum Operating Temperature | +125 °C |
| Width | 7.52mm |
| Length | 12.8mm |
| Minimum Operating Supply Voltage | 1.65 V |
