Texas Instruments SN74AC374DW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

RS Stock No.:: 145-6131
Mfr. Part No.:: SN74AC374DW
Brand:: Texas Instruments

Texas Instruments SN74AC374DW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

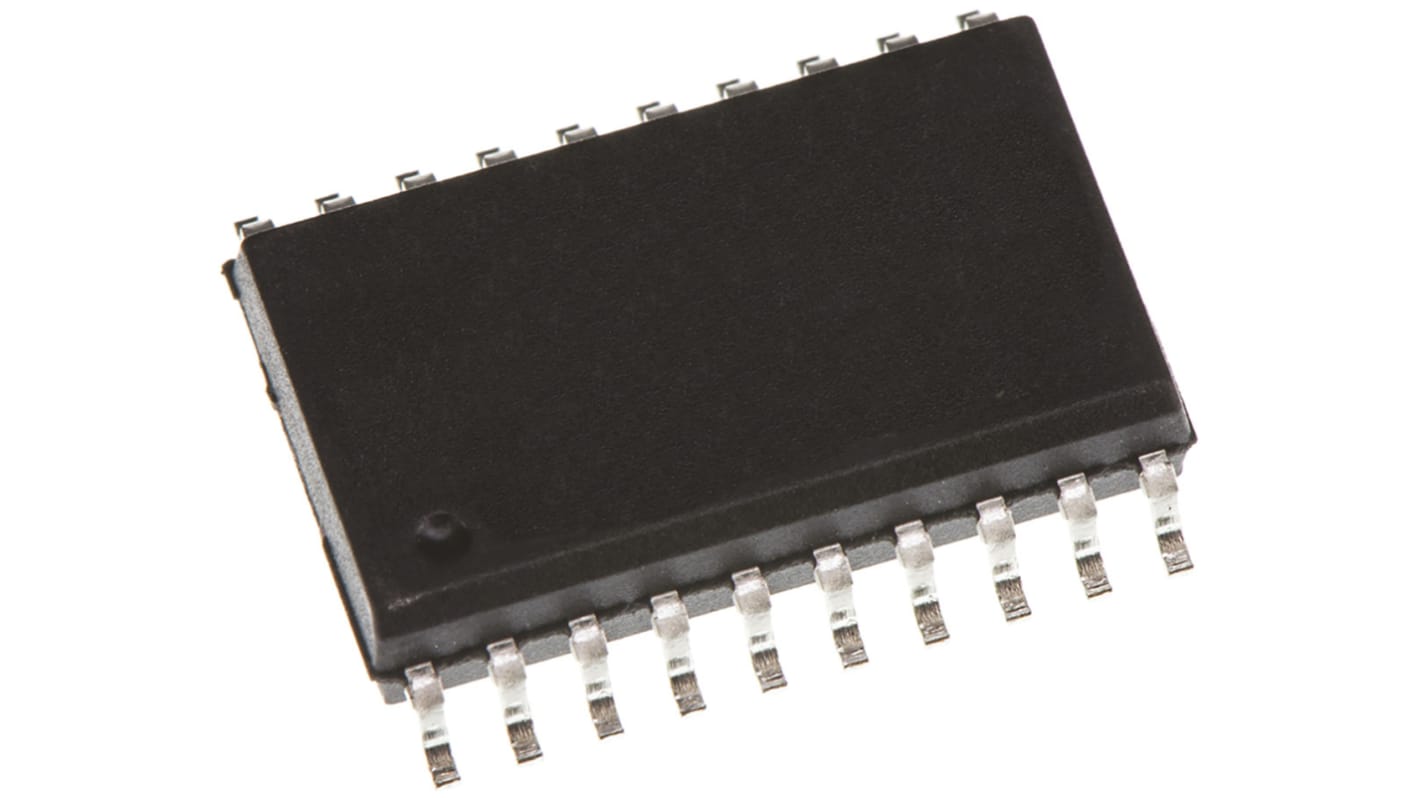

This image is representative of the product range

Price (ex. GST) Each (In a Tube of 25)

$0.905

(exc. GST)

$0.995

(inc. GST)

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit	Per Tube**
25 +	$0.905	$22.625

**price indicative

RS Stock No.:: 145-6131
Mfr. Part No.:: SN74AC374DW
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Logic Family	AC
Logic Function	D Type
Input Type	Single Ended
Output Type	3 State
Output Signal Type	Single Ended
Triggering Type	Positive Edge
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SOIC
Pin Count	20
Number of Elements per Chip	8
Maximum Propagation Delay Time @ Maximum CL	13.5 ns @ 3.3 V
Dimensions	12.8 x 7.52 x 2.35mm
Maximum Operating Supply Voltage	6 V
Minimum Operating Supply Voltage	2 V
Length	12.8mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Propagation Delay Test Condition	50pF
Width	7.52mm
Height	2.35mm

Texas Instruments SN74AC374DW Octal D Type Flip Flop IC, 3-State, 20-Pin SOIC

FREE delivery for orders over $80.00 ex GST

74AC Family, Texas Instruments
