Amphenol Industrial, Epower Lite RADSOK Plug with HVIL EV Connector Male, 70A

View all EV Connectors
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

$54.30

(exc. GST)

$59.73

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 52 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4$54.30
5 - 9$52.40
10 +$50.80

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
124-4110
Mfr. Part No.:
ELP4A02 / C10-737488-4AS2
Brand:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Product Type

EV Connector

Series

Epower Lite

Current

70A

Connector Type

RADSOK Plug with HVIL

Number of Rows

2

Number of Contacts

4

Wire Size

4mm²

Operating Voltage

800V

Connector Gender

Male

Minimum Operating Temperature

-40°C

Termination Type

Crimp

Maximum Operating Temperature

125°C

Contact Gender

Female

Orientation

Straight

Standards/Approvals

IEC 60529, UL 94 V-0

Width

40.9mm

Key Type

Type A

Height

40.4mm

Depth

58.5mm

Colour

Orange

IP Rating

IP67

Better World Claim

Renewable Energy Solution

Mount Type

Cable

Better World Product

Yes

Pin Diameter

3.6mm

Housing Material

Plastic

For Use With

4 Position ePower-Lite Receptacle with HVIL

ePower-Lite Connector, A Coding

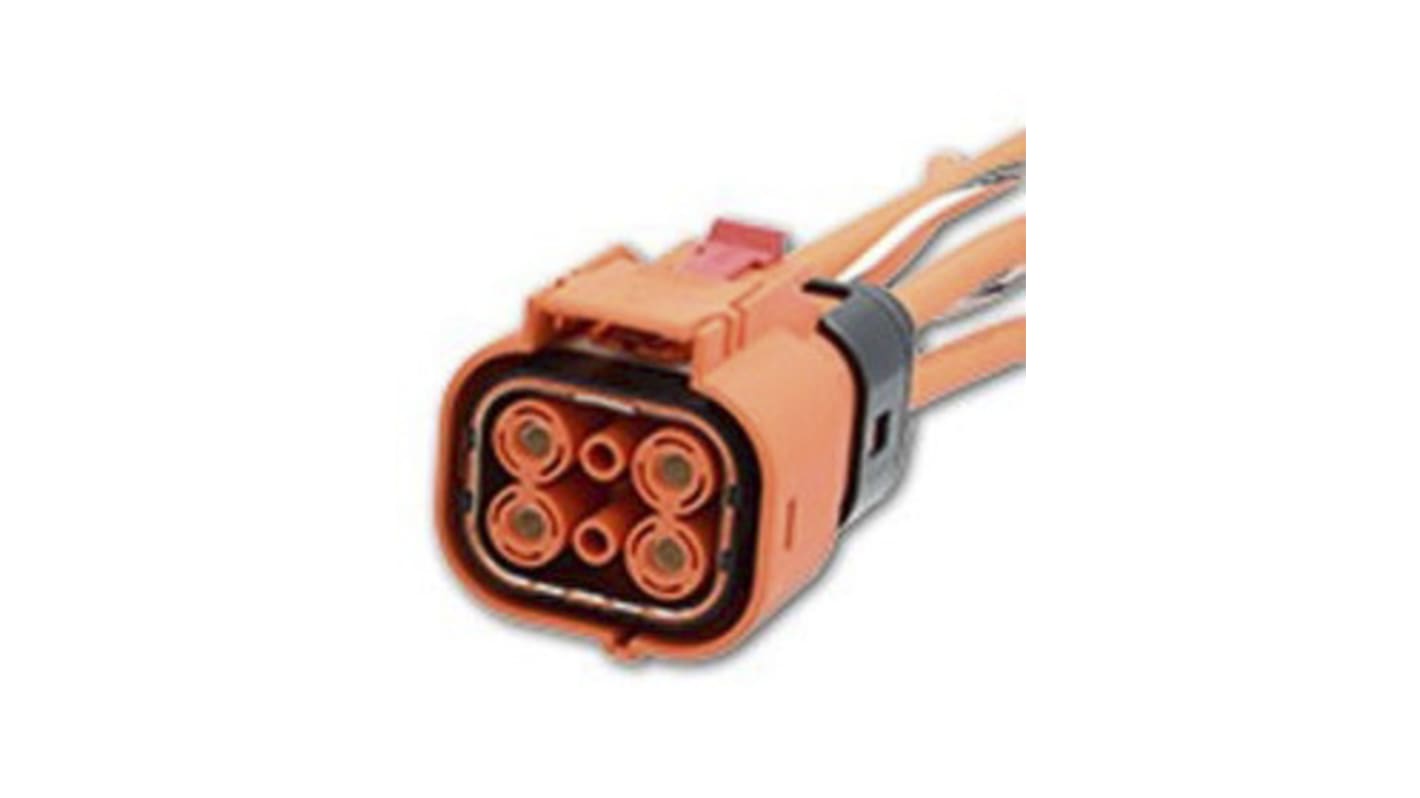

From Amphenol, the ePower-Lite is a compact and lightweight hybrid electric vehicle connector. With a robust temperature resistant shell, dielectric protection for the connector is assured. The connector is field installable and repairable, and features a CPA to prevent mis-mating.

Using RADSOK technology, the low-resistance connector features higher amperage, lower T-rise and voltage drop. With a compact design and small footprint, the ePower-Lite is ideal for EV and Hybrid applications.

Features and Benefits


• Compact and Lightweight Connector

• A-Coding

• Durability of over 100 mating cycles

• Waterproof: IP67

• Touch Proof: IEC 60529

• Flammability: UL 94V-0
