Phoenix Contact SAC, 2 m Cat5 Ethernet Cable, Blue, Shielded 2 Cross Linked Polyethylene, Polypropylene Sheath

View all Ethernet Cable

Subtotal (1 unit)*

$103.74

(exc. GST)

$114.11

(inc. GST)

Add to Basket
Select or type quantity
Orders below $60.00 (exc. GST) cost $12.95.
In Stock
  • Plus 5 unit(s) shipping from 23 February 2026
  • Plus 13 unit(s) shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$103.74

*price indicative

RS Stock No.:
190-2081
Mfr. Part No.:
1407361
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Ethernet Cable

Series

SAC

LAN Category

Cat5

Cable Length

2m

Shield Type

Shielded

Jacket Material

Cross Linked Polyethylene, Polypropylene

Jacket Colour

Blue

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Fire Behaviour

Flame Retardant, Halogen Free

Core Strands

7

Standards/Approvals

UL, IEC 61076-2-101, cUL, EAC

Conductor Material

Bare Copper

Cross Sectional Area

0.14 mm²

Number of Cores

2

Voltage

48 V ac

Outside Diameter

6.4 mm

COO (Country of Origin):
PL

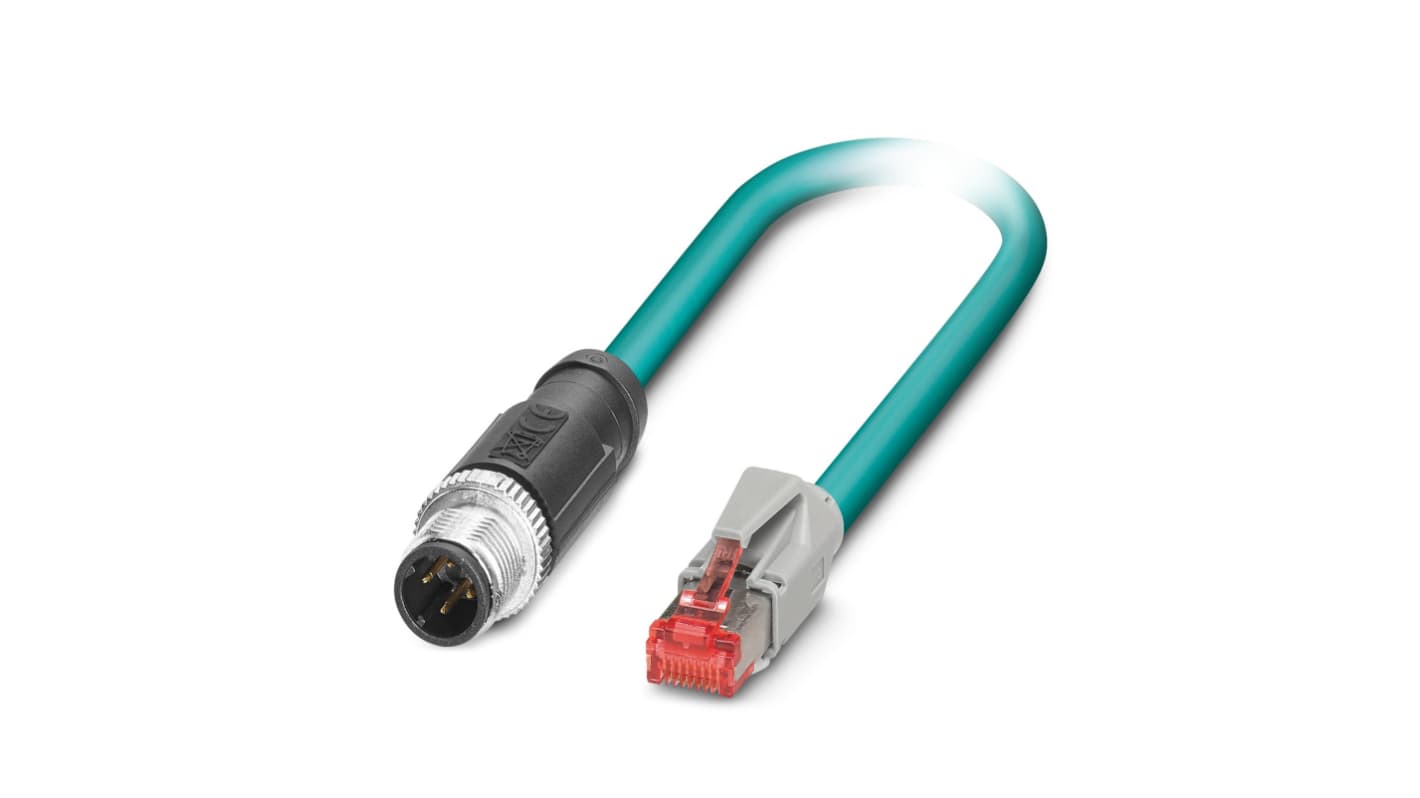

Phoenix Contact Sensor Actuator Cable, 2m - NBC-MSD/ 2,0-93E/R4AC SCO - 1407361


Safely connect your industrial equipment to a computer network with this actuator cable from Phoenix Contact. It comes with a four-pin M12 connector that's compatible with a range of devices, as well as a standard RJ45 (Registered Jack) connector to link to your network. The M12 connector has an IP67 (ingress protection) rating, meaning it's both dust-proof and water-resistant. This makes it a good choice for use in harsh environments such as factories and warehouses.

As the outer sheath is made from PUR (polyurethane)material, it offers maximum flexibility for ease of connection as well as resistance to chemicals and mechanical wear. This coating is also flame-retardant for enhanced safety in the event of a fire. It's a Cat5 Ethernet cable with twisted pairs, meaning it's capable of high data transfer rates of 100Mbps (megabits per second) to keep your operations running smoothly. The cable has an aluminium foil and tinned-copper braid shield for minimal signal interference.

Features & Benefits


• Comes in a long 2m length for maximum flexibility when connecting equipment

• Wide operating temperature range of -25°C to +60°C for use in harsh environments

• Blue cable for colour-coding multiple machine and network connections
