Festo 75 mm, 2810N, 8061280 400mm/s

View all Electric Linear Actuators
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

$1,511.89

(exc. GST)

$1,663.08

(inc. GST)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4$1,511.89
5 +$1,469.56

*price indicative

RS Stock No.:
181-6729
Mfr. Part No.:
EGSC-BS-KF-25-75-6P
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Electrical Linear Actuator

Stroke Length

75mm

Maximum Load

2810N

Maximum Speed

400mm/s

Series

EGSC-BS

Motor Technology

Stepper Motor, Servo Motor

Maximum Force

669N

Duty Cycle

100%

IP Rating

IP40

Overall Length Closed

25mm

Spindle Type

Ball Screw

Minimum Operating Temperature

0°C

Maximum Operating Temperature

50°C

Weight

315g

Standards/Approvals

RoHS

COO (Country of Origin):
CN

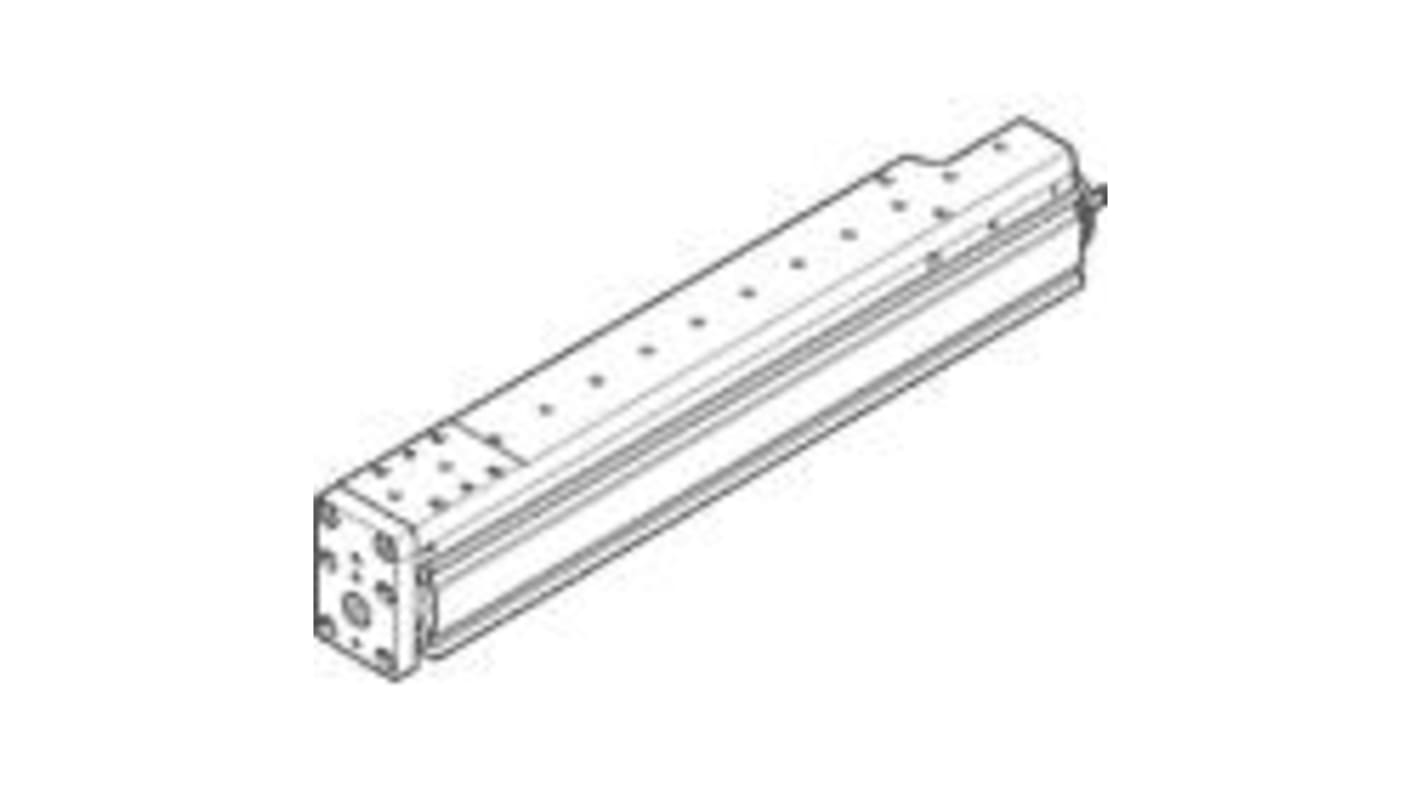

Festo EGSC-BS Series Electrical Linear Actuator, 75mm Stroke Length, 669N Maximum Force - EGSC-BS-KF-25-75-6P, Numeric Part Number:8061280


This electrical linear actuator provides precise linear motion for automation and mechanical systems, converting rotary drive into controlled linear travel suitable for assembly, positioning and test equipment. It is designed for continuous operation in industrial environments and pairs with stepper or servo drives to deliver repeatable actuation and positional control.

Features and Benefits:


• Ball screw drive delivers high-force motion up to 669 N practical thrust
• 100% duty cycle enables continuous operation without rest periods
• 400 mm/s Peak speed supports Rapid positioning tasks
• 75mm stroke offers Compact but usable travel for short excursions
• IP40 enclosure allows use in protected indoor control cabinets
• Low mass of 315 g reduces moving inertia and eases mounting loads

Applications


• Suitable for pick-and-place modules in automated production lines
• Ideal for laboratory test rigs requiring repeatable travel
• Used for fine adjustment in optical alignment systems
• Can be used for valve or damper actuation within enclosures
• Used with motion controllers for prototype machinery

Which motor types can be connected to this actuator?


It accepts either stepper motors or servo motors, allowing selection according to control precision, torque and feedback needs.

What operating temperature range should be maintained for reliable function?


Operate the unit between 0°C and 50°C to remain within rated thermal limits for performance consistency.

How should load capacity be interpreted for mounting purposes?


The actuator can carry up to 2810 N as a maximum load

designers should account for dynamic forces, safety factors and mounting stiffness when specifying attachments.

Is the device suitable for RoHS-required equipment builds?


The construction complies with RoHS requirements, permitting integration into assemblies where restricted substances must be avoided.
