Microchip, 2 kB Serial EEPROM, 900 ns 8-Pin SOIC Serial-I2C (2 Wire)
- RS Stock No.:
- 239-5553
- Mfr. Part No.:
- 24AA02E48T-I/SN
- Brand:
- Microchip

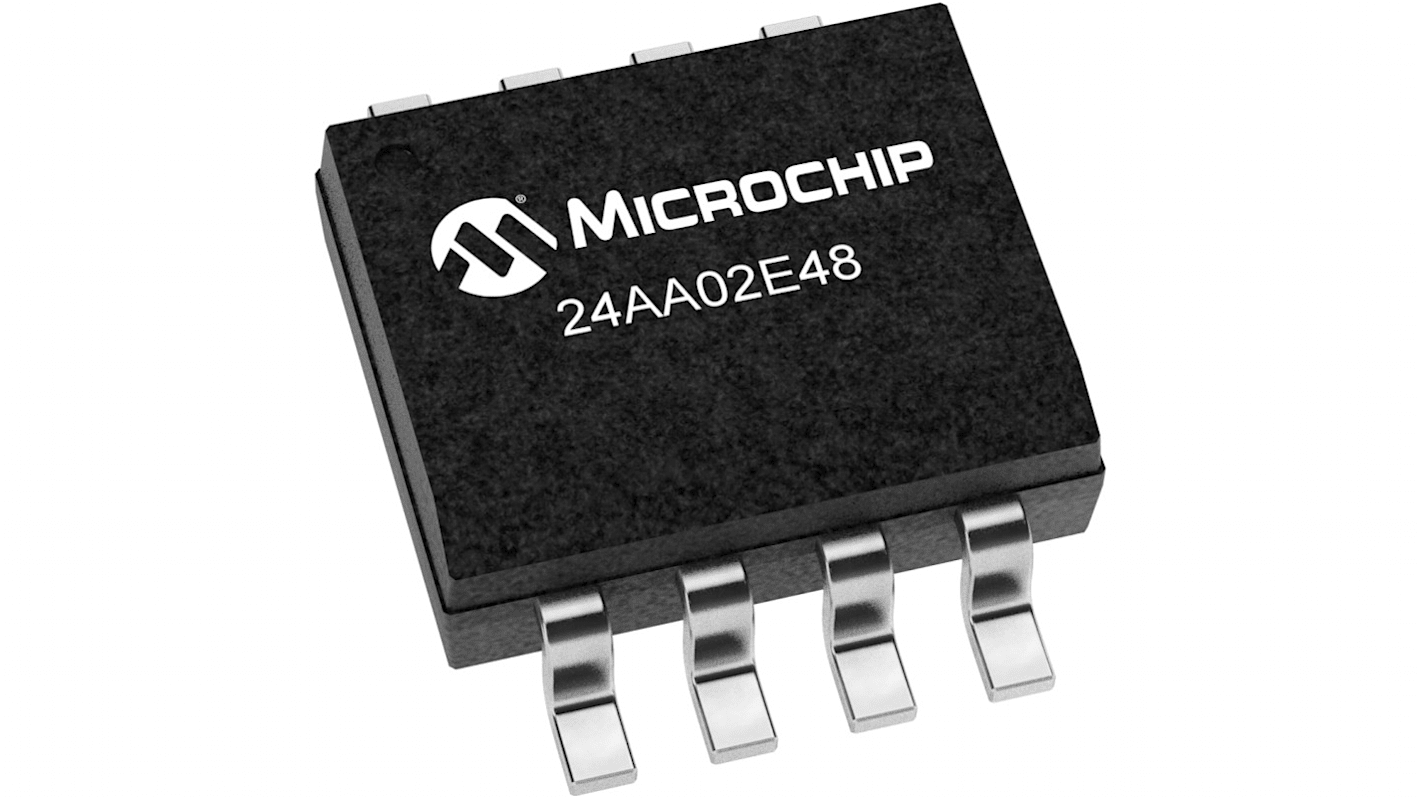

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 239-5553
- Mfr. Part No.:
- 24AA02E48T-I/SN
- Brand:
- Microchip
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Memory Size | 2kB | |
| Product Type | Serial EEPROM | |
| Interface Type | Serial-I2C (2 Wire) | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 1000kHz | |
| Minimum Supply Voltage | 1.7V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.75mm | |
| Standards/Approvals | RoHS | |
| Length | 4.9mm | |
| Automotive Standard | No | |
| Data Retention | 200year | |
| Number of Words | 256 | |
| Maximum Random Access Time | 900ns | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Memory Size 2kB | ||
Product Type Serial EEPROM | ||
Interface Type Serial-I2C (2 Wire) | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 1000kHz | ||
Minimum Supply Voltage 1.7V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Height 1.75mm | ||
Standards/Approvals RoHS | ||
Length 4.9mm | ||
Automotive Standard No | ||
Data Retention 200year | ||
Number of Words 256 | ||
Maximum Random Access Time 900ns | ||
The Microchip 24AA02E48 series of 2 Kbit EEPROM offers a low-power CMOS technology device which is organized as two blocks of 128 x 8-bit memory with a 2-wire serial interface. The factory programming is available for the device. Along with more than 1 million read/write cycles it provides data retention of over 200 years. Also, ESD Protection of more than 4000 V. The device offers 2-wire serial interface which are I2C compatible. Also, Schmitt trigger inputs for noise suppression. The device offers 100 kHz and 400 kHz clock compatibility and self-timed erase/write cycle.
Single supply with operation down to 1.7 V
Maximum read current is 1 mA
Maximum industrial standby current is 1 μA
Temperature range for industrial applications is 40°C to +85°C
