- RS Stock No.:
- 190-7652
- Mfr. Part No.:
- M24C16-WDW6TP
- Brand:
- STMicroelectronics
On back order for despatch 19/11/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Pack of 50)
$0.362
(exc. GST)
$0.398
(inc. GST)
Units | Per unit | Per Pack* |
50 - 950 | $0.362 | $18.10 |
1000 - 1950 | $0.353 | $17.65 |
2000 + | $0.347 | $17.35 |
*price indicative |
- RS Stock No.:
- 190-7652
- Mfr. Part No.:
- M24C16-WDW6TP
- Brand:
- STMicroelectronics
Technical data sheets
Legislation and Compliance
Product Details

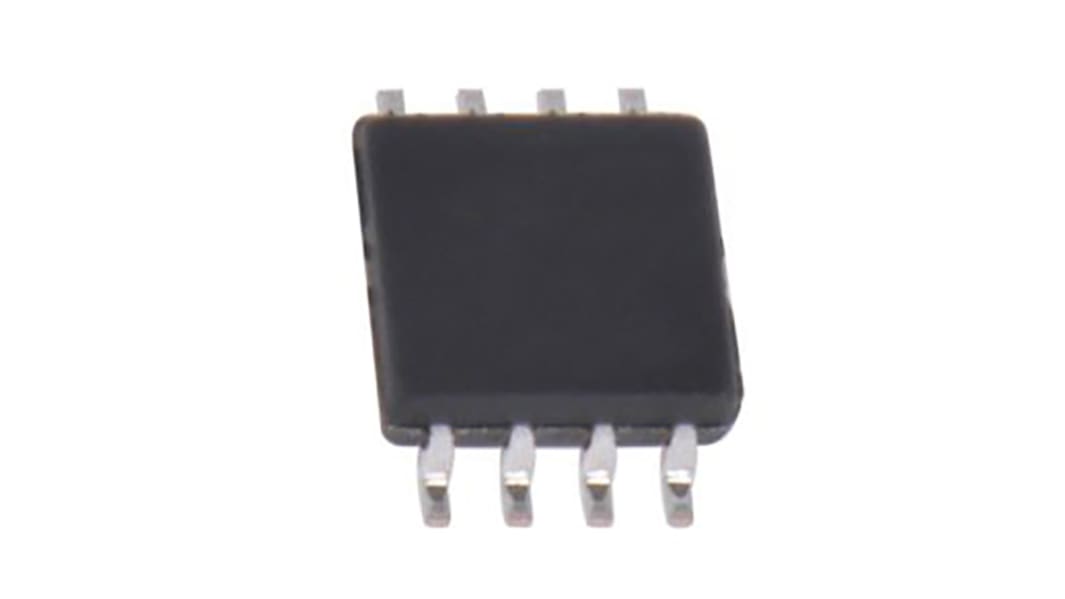

The M24C16 is a 16-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 K x 8 bits.
Compatible with all I2C bus modes:
400 kHz
100 kHz
Memory array:
16 Kbit (2 Kbyte) of EEPROM
Page size: 16 byte
Single supply voltage:
M24C16-W: 2.5 V to 5.5 V
M24C16-R: 1.8 V to 5.5 V
M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
Write:
Byte Write within 5 ms
Page Write within 5 ms
Operating temperature range:
from -40 °C up to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
More than 4 million Write cycles
More than 200-years data retention
Packages
PDIP8
SO8
TSSOP8
UFDFPN8
UFDFPN5
Unsawn wafer (each die is tested)
400 kHz
100 kHz
Memory array:
16 Kbit (2 Kbyte) of EEPROM
Page size: 16 byte
Single supply voltage:
M24C16-W: 2.5 V to 5.5 V
M24C16-R: 1.8 V to 5.5 V
M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
Write:
Byte Write within 5 ms
Page Write within 5 ms
Operating temperature range:
from -40 °C up to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
More than 4 million Write cycles
More than 200-years data retention
Packages
PDIP8
SO8
TSSOP8
UFDFPN8
UFDFPN5
Unsawn wafer (each die is tested)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Memory Size | 16kbit |
Interface Type | Serial-I2C |
Package Type | TSSOP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Organisation | 2 K x 8 |
Minimum Operating Supply Voltage | 2.5 V |
Maximum Operating Supply Voltage | 5.5 V |
Programming Voltage | 2.5 → 5.5V |
Number of Bits per Word | 8bit |
Dimensions | 3.1 x 4.5 x 1.05mm |
Maximum Random Access Time | 900ns |
Maximum Operating Temperature | +85 °C |
Number of Words | 2 K |
Data Retention | 200yr |
Automotive Standard | AEC-Q100 |
Minimum Operating Temperature | -40 °C |
