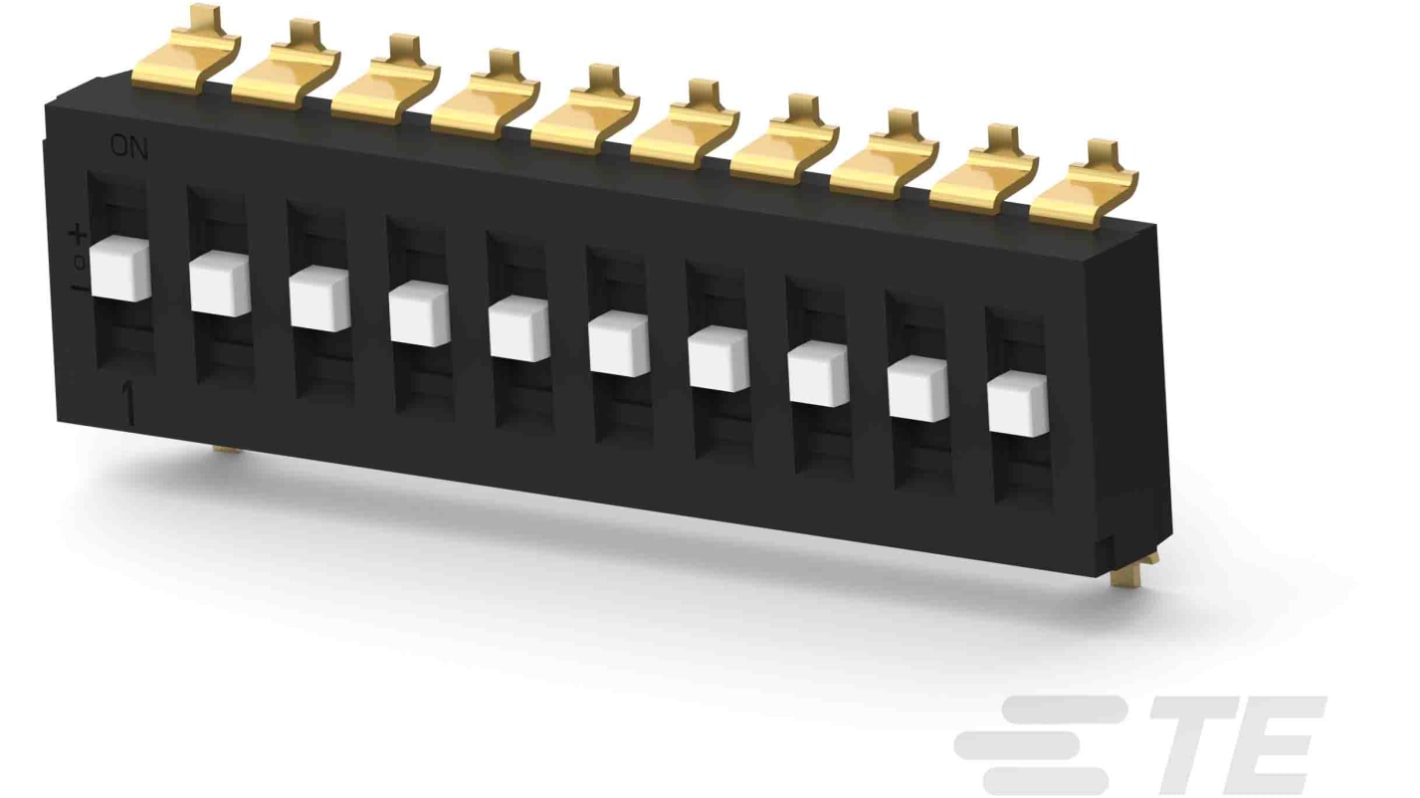

TE Connectivity 10 Way Surface Mount DIP Switch SPTT, Raised Actuator
- RS Stock No.:
- 223-4095
- Mfr. Part No.:
- TDS10SGNNTR04
- Brand:
- TE Connectivity
900 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 900)
$4.888
(exc. GST)
$5.377
(inc. GST)
| Units | Per unit | Per Reel* |
| 900 - 3600 | $4.888 | $4,399.20 |
| 4500 + | $4.399 | $3,959.10 |
| *price indicative | ||
- RS Stock No.:
- 223-4095
- Mfr. Part No.:
- TDS10SGNNTR04
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The TE Connectivity TDS series ALCOSWITCH DIP switch designed for unique coding and streamlined manufacturing. It is used in industrial and automated control boards, fire and security systems, thermostats, home automation and telecommunication device. It has operating temperature range from -20° C to +85° C.
Tristate positioning
Dielectric strength 500 VAC for 1 minute
RoHS compliant
Dielectric strength 500 VAC for 1 minute
RoHS compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 10 |
| Mounting Type | Surface Mount |
| Contact Configuration | SPTT |
| Contact Material | Au over Nickel Plated, Cu Alloy |
| Actuator Type | Raised |
| Contact Current Rating | 25 @ 24 mA @ V dc |
