Weidmüller AKZ Series Beige, Yellow Feed Through Terminal Block, 2.5mm², Single-Level, Screw Termination, ATEX, IECEx
- RS Stock No.:
- 829-6619
- Mfr. Part No.:
- 0697160000
- Brand:
- Weidmüller
50 In stock for delivery within 1 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
$6.747
(exc. GST)
$7.422
(inc. GST)
Units | Per unit | Per Pack* |
10 + | $6.747 | $67.47 |
*price indicative |
- RS Stock No.:
- 829-6619
- Mfr. Part No.:
- 0697160000
- Brand:
- Weidmüller
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

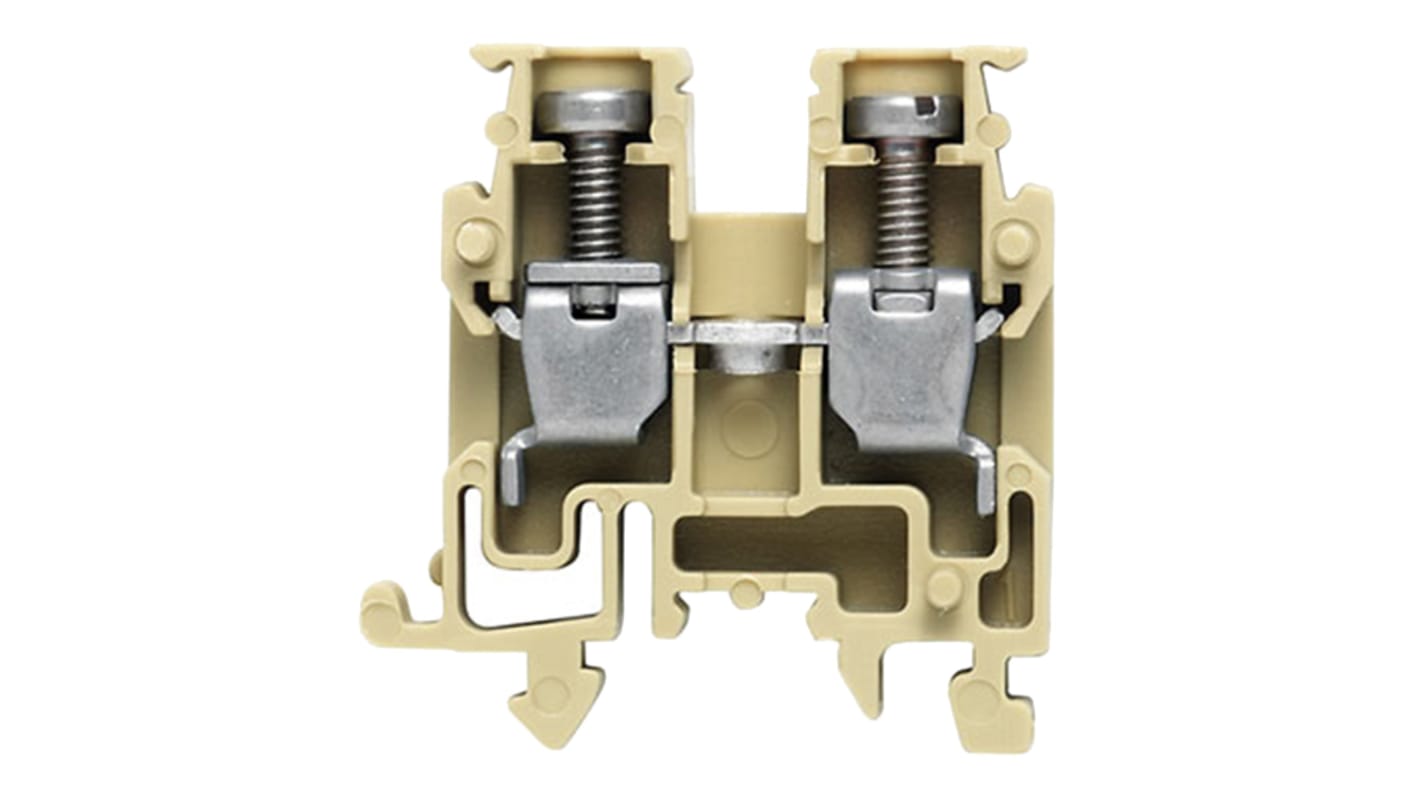

Weidmuller Feed-Through Terminal Block, 24A Current Rating, 250V Voltage Rating - SAK Series - 0697160000
Stop your wiring system from going off the rails with this feed-through terminal block from Weidmuller. It's a handy addition to your setup that helps to prevent surges and short circuits from disrupting your flow. This unit is made from tough PA66 for resistance to impact, abrasion and corrosion. The screw termination method means there's no need for special tools, so you can speed through installation. Thanks to its clamping yoke technology, you can rely on a firm hold for the optimal performance of your connections.
Features & Benefits
• Compact dimensions of 25.5 (H) x 5.1 (W) x 26.3mm (D) make it a space-efficient choice
• Light weight of 3.44g to minimise strain on your setup
• Performs reliably at temperatures between -60°C and +130°C for use in harsh industrial settings
• Light weight of 3.44g to minimise strain on your setup
• Performs reliably at temperatures between -60°C and +130°C for use in harsh industrial settings
Applications
• Factory automation
• Industrial manufacturing
• Robotics systems
• Industrial manufacturing
• Robotics systems
Is this feed-through terminal block fire-safe?
Yes. It's made from flame-retardant material, so burning subsides in under one minute for safety in the event of a fire.
Which wire sizes are compatible with this component?
This versatile block is compatible with wire sizes between 26 and 12AWG.
SAK Series
Terminals manufactured from polymide 6.6 with a working temperature of -50°C to +100°C except the fused terminal block (425-689) which is high grade melamine with a working temperature of -60°C to +130°C. Asymmetric rail (G-profile) to B 5825:1980 EN 50035 mounting
Specifications
Attribute | Value |
---|---|
Colour | Beige, Yellow |
Number of Levels | Single |
Series | AKZ |
American Wire Gauge | 26 → 10AWG |
Termination Method | Screw |
Cable CSA | 2.5mm² |
Fused | No |
Voltage Rating | 250 V |
Current Rating | 24A |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +130°C |
Hazardous Area Certification | ATEX, IECEx |
Standards Met | ATEX, CCC, CE, CSA, UKCA, UR |
