Weidmuller 1016200000 WPE Series Green/Yellow, 2.5mm², Single-Level, Screw Termination, ATEX, IECEx

RS Stock No.:: 202-186
Mfr. Part No.:: 1016200000
Brand:: Weidmüller

Weidmuller 1016200000 WPE Series Green/Yellow, 2.5mm², Single-Level, Screw Termination, ATEX, IECEx

View this category

Subtotal (1 bag of 10 units)**

$67.77

(exc. GST)

$74.55

(inc. GST)

1 In AU stock for next working day delivery*

26 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Bag(s)	Per Bag	Per unit**
1 +	$67.77	$6.777

**price indicative

RS Stock No.:: 202-186
Mfr. Part No.:: 1016200000
Brand:: Weidmüller

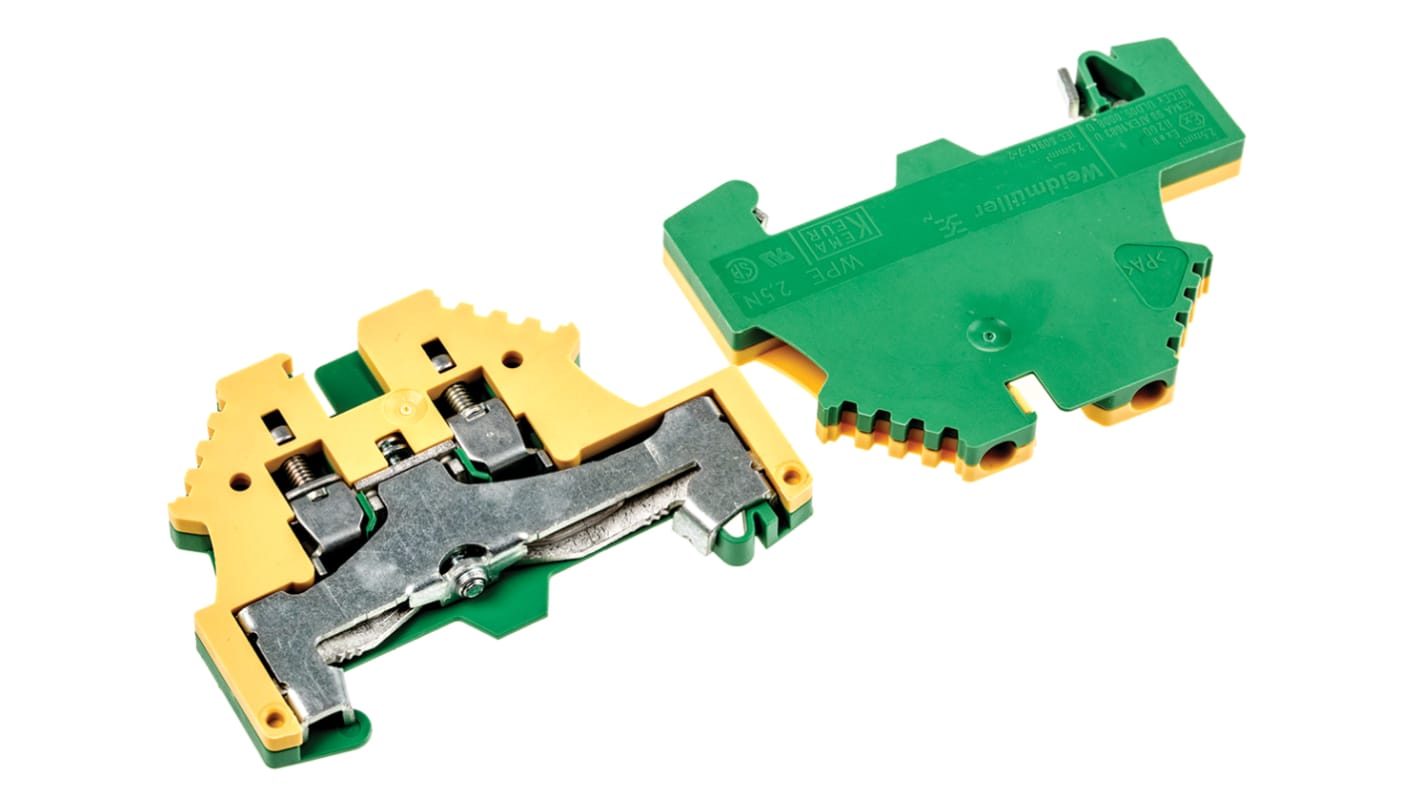

Weidmuller WPE Series Earth Terminal Block, Screw Termination Method, 500 V Voltage Rating - 1016200000

This earth terminal block by Weidmuller is a crucial component in electrical installations. It provides a reliable grounding solution for various applications in the automation and electronics industries.

Features & Benefits

• Screw termination method for secure connections
• Suitable for American Wire Gauge sizes 26-12 AWG
• Designed for use with cables of 2.5 mm² CSA
• Colour coded in green/yellow for easy identification
• Single-level design for streamlined installation
• Voltage rating of 500V for safe operation

Applications

• Used for Grounding and earthing in electrical panels
• Essential for connecting grounding conductors in industrial machinery
• Recommended for securely anchoring exposed metal wiring
• Ideal for electrical safety in high voltage applications

Can it be used for industrial applications?

Yes, this earth terminal block is designed for industrial use to ensure safe electrical installations.

Will it work with different wire sizes?

Yes, it is compatible with a range of Wire Gauge sizes from 26 to 12 AWG.

Is it suitable for high voltage environments?

Yes, with a voltage rating of 500V, it is ideal for high voltage installations.

Can it be used for grounding metal structures?

Yes, it is suitable for grounding metal structures to ensure electrical safety.

Does it require any special tools for installation?

No, it is designed for easy installation with a standard screw connection method.

Approvals

UL, CSA, GOST

Standards

IEC 60947-7-2

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Colour	Green/Yellow
	Number of Levels	Single
	Voltage Rating	500 V
	American Wire Gauge	26 → 12AWG
	Series	WPE
	Termination Method	Screw
	Cable CSA	2.5mm²
	Current Rating	300A
	Hazardous Area Certification	ATEX, IECEx
	Standards Met	CSA, IEC 60947-7-2
	Model Number	WPE 2.5N

	Select all
	Brand Weidmüller
	Colour Green/Yellow
	Number of Levels Single
	Voltage Rating 500 V
	American Wire Gauge 26 → 12AWG
	Series WPE
	Termination Method Screw
	Cable CSA 2.5mm²
	Current Rating 300A
	Hazardous Area Certification ATEX, IECEx
	Standards Met CSA, IEC 60947-7-2
	Model Number WPE 2.5N
