Wago 787 Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 90 → 373V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 240-7969
- Mfr. Part No.:
- 787-712
- Brand:
- Wago
14 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$172.20
(exc. GST)
$189.42
(inc. GST)
Units | Per unit |
---|---|
1 + | $172.20 |
- RS Stock No.:
- 240-7969
- Mfr. Part No.:
- 787-712
- Brand:
- Wago
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

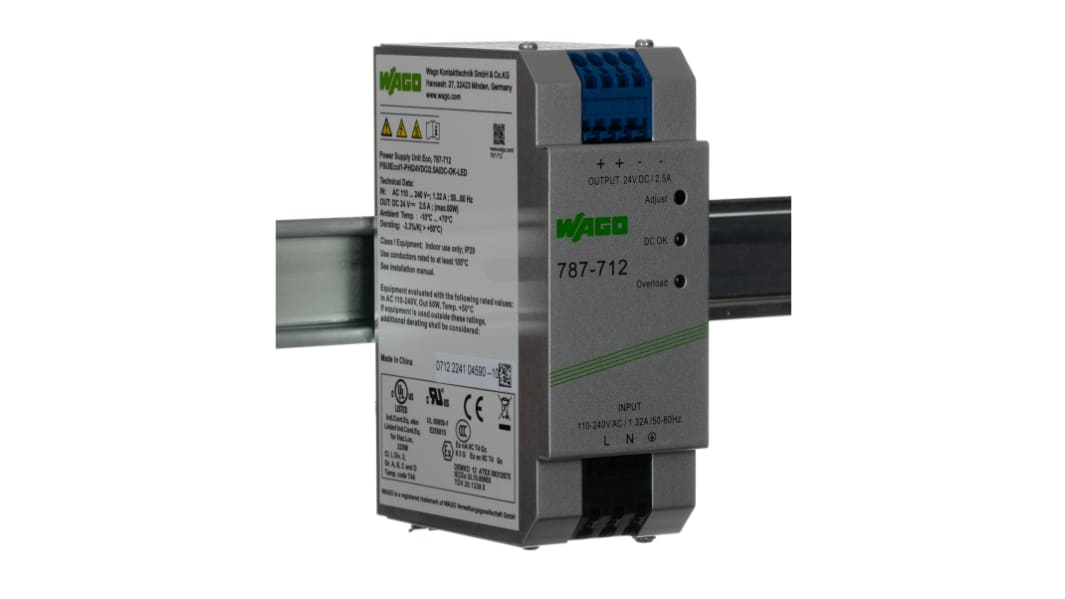

Wago DIN Rail Power Supply, Isolated Outputs, 86% Typical Efficiency - 787 Series - 787-712
Energise your automated industrial components in a flash with this DIN rail power supply from Wago. Its 24V DC output makes it compatible with many standard devices like actuators, sensors and relays, making it a handy operator in your plant. A typical efficiency of 86% means you can rest assured minimal power is lost in the switching process. To save on wiring time, this product features CAGE CLAMP® connections that don't need any special tools.
Features & Benefits
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size
• Short circuit protection minimises the risk of equipment damage
• Green and red LEDs offer convenient and quick status monitoring
• Natural convection cooling when mounted horizontally, so there's no need for a fan
• Short circuit protection minimises the risk of equipment damage
• Green and red LEDs offer convenient and quick status monitoring
• Natural convection cooling when mounted horizontally, so there's no need for a fan
Applications
• Process control
• Marine and offshore industries
• Pharmaceutical manufacturing
• Electrical engineering
• Marine and offshore industries
• Pharmaceutical manufacturing
• Electrical engineering
What size DIN rail is compatible with this power supply?
You can mount this device on a standard 35mm DIN rail, so it easily slots into most control cabinets. A small footprint of 92 (H) x 50 (W) x 136mm (D) lets you maximise packing space on your rail.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Series | 787 |
Type | Switched Mode |
Electrical Phase | 1 |
AC or DC Input Voltage | ac, dc |
Input Voltage | 85 → 264 V ac / 90 → 373V dc |
AC or DC Output Voltage | dc |
Output Voltage | 24V dc |
Output Current | 2.5A |
Power Rating | 60W |
Number of Outputs | 1 |
Depth | 136mm |
Width | 50mm |
Height | 92mm |
Hazardous Area Certification | ATEX |
MTBF | 480000h |
Maximum Temperature | +70°C |
Standards Met | CE |
Efficiency | 86% |
Mounting Type | DIN Rail Mount |
Minimum Temperature | -10°C |
