ASSMANN WSW 2.54 mm Pitch Vertical 18 Way, Through Hole Stamped Pin Open Frame DIL Socket, 1A
- RS Stock No.:
- 674-2441
- Mfr. Part No.:
- A 18-LC-TT
- Brand:
- ASSMANN WSW

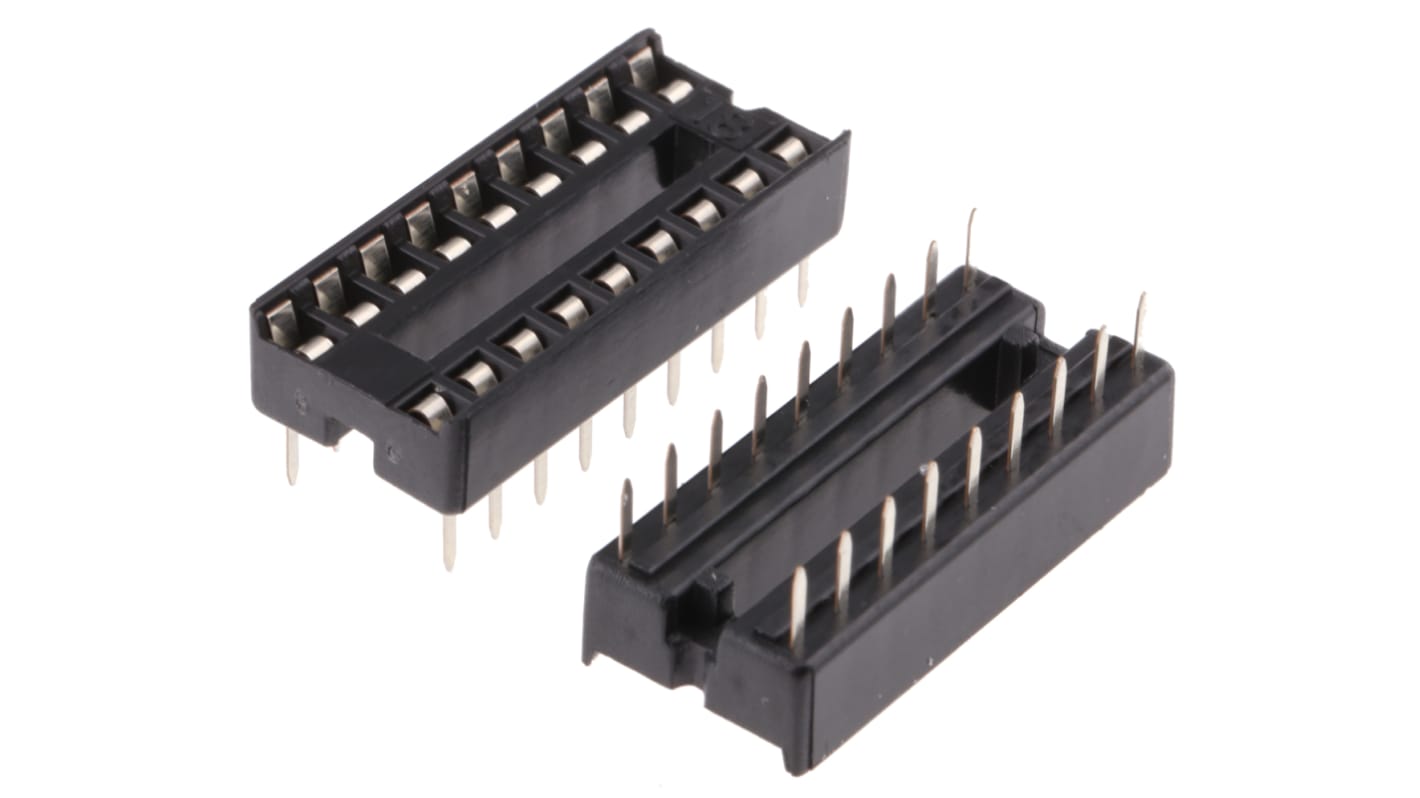

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
$4.34
(exc. GST)
$4.77
(inc. GST)
Add 140 units to get free delivery
In Stock
- 100 unit(s) ready to ship
- Plus 550 unit(s) ready to ship from another location
- Plus 700 unit(s) shipping from 26 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | $0.434 | $4.34 |
| 250 - 740 | $0.413 | $4.13 |
| 750 - 1990 | $0.393 | $3.93 |
| 2000 - 9990 | $0.373 | $3.73 |
| 10000 + | $0.355 | $3.55 |
*price indicative
- RS Stock No.:
- 674-2441
- Mfr. Part No.:
- A 18-LC-TT
- Brand:
- ASSMANN WSW
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ASSMANN WSW | |
| Product Type | DIL Socket | |
| Number of Contacts | 18 | |
| Mount Type | Through Hole | |
| Current | 1A | |
| Pin Type | Stamped | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Voltage | 150 V | |
| Frame Type | Open Frame | |
| Contact Plating | Tin | |
| Orientation | Vertical | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Width | 5.16 mm | |
| Length | 22.76mm | |
| Standards/Approvals | No | |
| Depth | 9.96mm | |
| Housing Material | Polyethylene Terephthalate | |
| Contact Material | Phosphor Bronze | |
| Select all | ||
|---|---|---|
Brand ASSMANN WSW | ||
Product Type DIL Socket | ||
Number of Contacts 18 | ||
Mount Type Through Hole | ||
Current 1A | ||
Pin Type Stamped | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Voltage 150 V | ||
Frame Type Open Frame | ||
Contact Plating Tin | ||
Orientation Vertical | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Width 5.16 mm | ||
Length 22.76mm | ||
Standards/Approvals No | ||
Depth 9.96mm | ||
Housing Material Polyethylene Terephthalate | ||
Contact Material Phosphor Bronze | ||
- COO (Country of Origin):
- TW
Assmann 2.54mm Open Frame IC DIP Sockets with Stamped Contacts
A range of open frame IC DIP sockets with a 2.54mm pitch. These 2.54mm PCB through hole mount IC DIP sockets have a black UL94V-0 PBT insulator and stamped tin plated phosphor bronze contacts.
