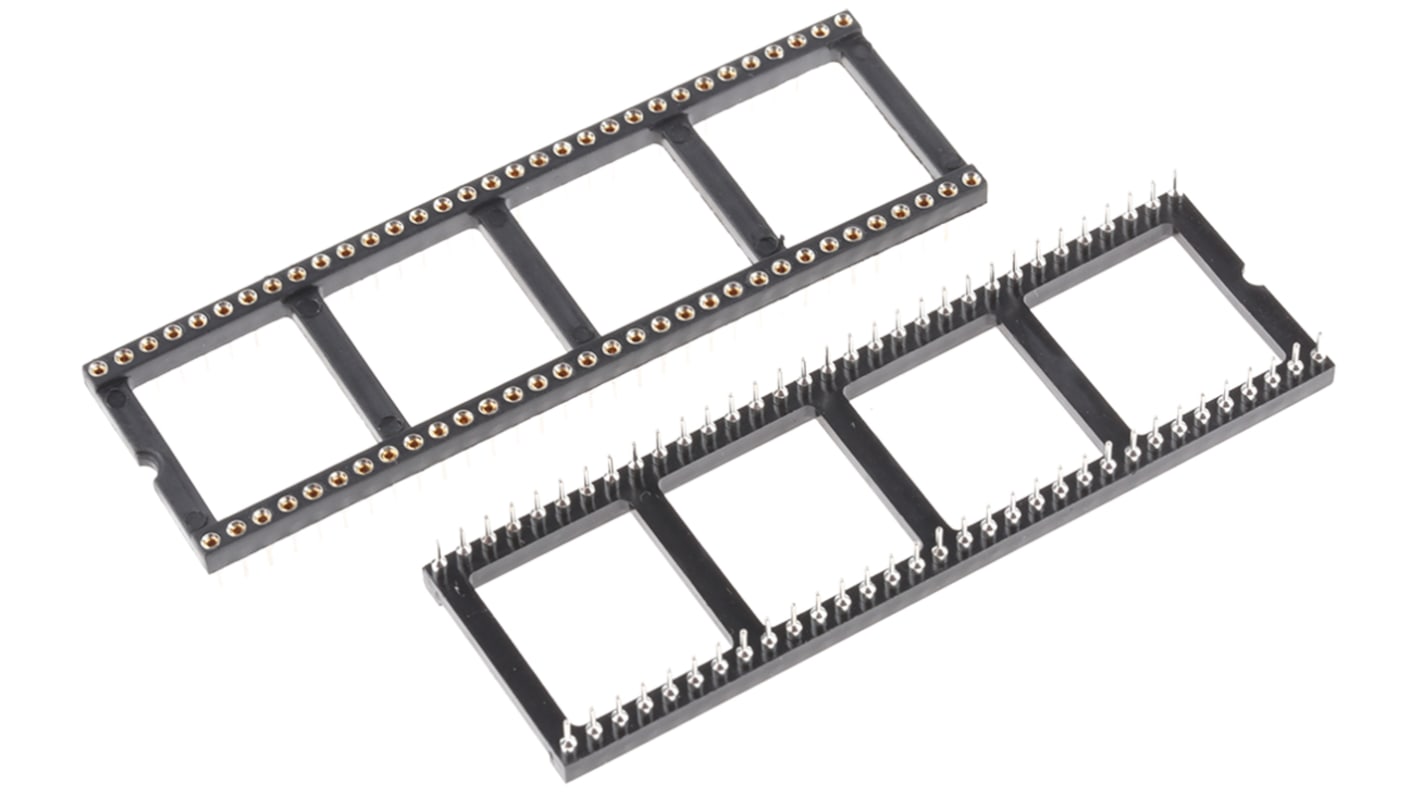

Winslow 2.54mm Pitch Vertical 64 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A
- RS Stock No.:
- 813-200
- Mfr. Part No.:
- W30564TRC
- Brand:
- Winslow
Bulk discount available
Subtotal (1 pack of 5 units)**
$60.01
(exc. GST)
$66.01
(inc. GST)
55 In Global stock for delivery within 10 working day(s)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 120 | $12.002 | $60.01 |
| 125 - 370 | $11.588 | $57.94 |
| 375 + | $11.142 | $55.71 |
**price indicative
- RS Stock No.:
- 813-200
- Mfr. Part No.:
- W30564TRC
- Brand:
- Winslow
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Number of Contacts | 64 | |
| Mounting Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 22.86mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold, Tin | |
| Current Rating | 5A | |
| Orientation | Vertical | |
| Length | 81.2mm | |
| Width | 4.6mm | |
| Depth | 25.38mm | |
| Dimensions | 81.2 x 4.6 x 25.38mm | |
| Contact Material | Beryllium Copper | |
| Housing Material | PBT | |
| Maximum Operating Temperature | +150°C | |
| Minimum Operating Temperature | -65°C | |
Select all | ||
|---|---|---|
Brand Winslow | ||
Number of Contacts 64 | ||
Mounting Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 22.86mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Gold, Tin | ||
Current Rating 5A | ||
Orientation Vertical | ||
Length 81.2mm | ||
Width 4.6mm | ||
Depth 25.38mm | ||
Dimensions 81.2 x 4.6 x 25.38mm | ||
Contact Material Beryllium Copper | ||
Housing Material PBT | ||
Maximum Operating Temperature +150°C | ||
Minimum Operating Temperature -65°C | ||
