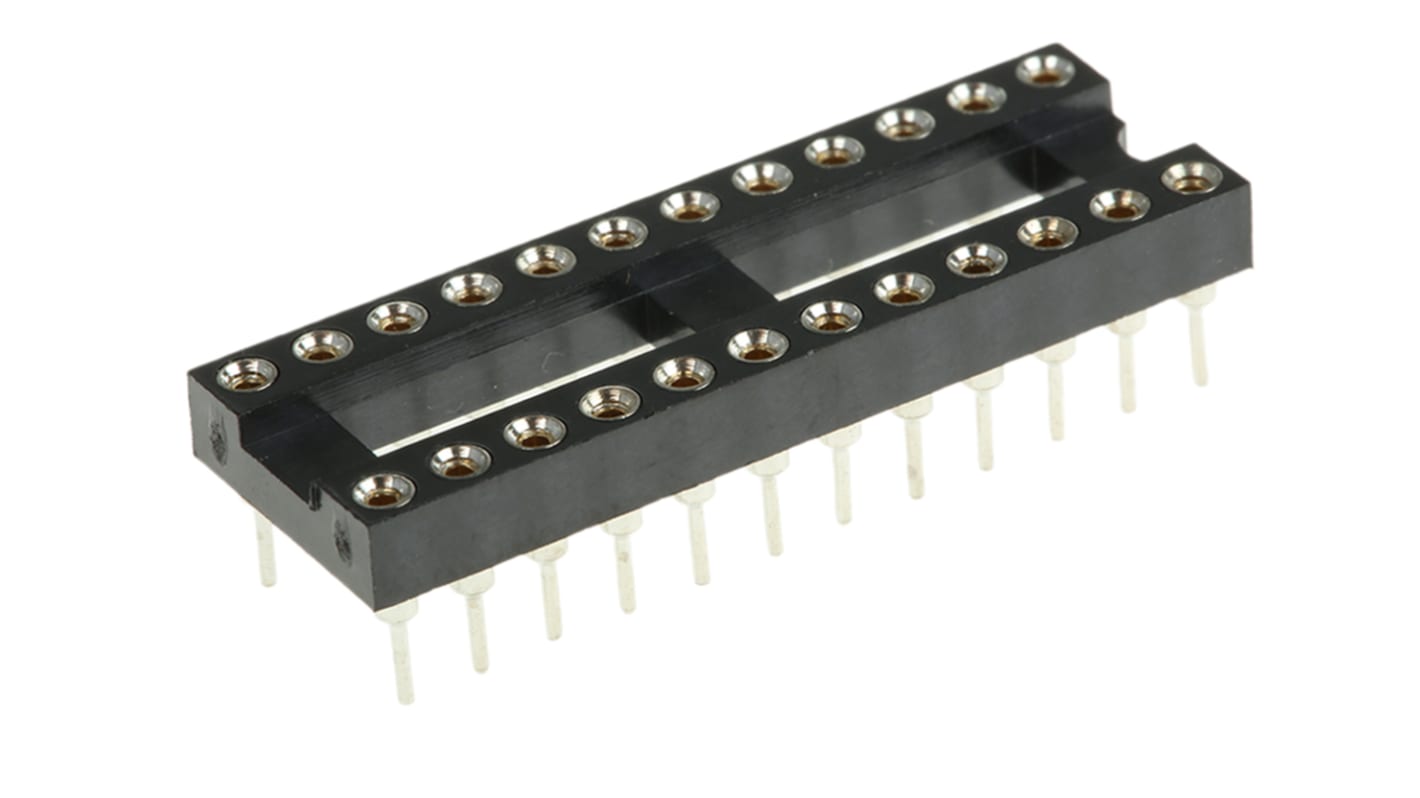

Winslow 2.54mm Pitch Vertical 24 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 5A
- RS Stock No.:
- 801-780
- Mfr. Part No.:
- W30524/3TRC
- Brand:
- Winslow
Bulk discount available
Subtotal (1 pack of 5 units)**
$8.13
(exc. GST)
$8.945
(inc. GST)
15 In AU stock for next working day delivery*
205 In Global stock for delivery within 10 working day(s)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Real time qty checker
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 370 | $1.626 | $8.13 |
| 375 - 1995 | $1.60 | $8.00 |
| 2000 + | $1.538 | $7.69 |
**price indicative
- RS Stock No.:
- 801-780
- Mfr. Part No.:
- W30524/3TRC
- Brand:
- Winslow
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Winslow | |
| Number of Contacts | 24 | |
| Mounting Type | Through Hole | |
| Pin Type | Turned | |
| Pitch | 2.54mm | |
| Row Width | 7.62mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Gold, Tin | |
| Current Rating | 5A | |
| Orientation | Vertical | |
| Length | 30.4mm | |
| Width | 10.14mm | |
| Depth | 3mm | |
| Dimensions | 30.4 x 10.14 x 3mm | |
| Minimum Operating Temperature | -65°C | |
| Contact Material | Beryllium Copper | |
| Housing Material | Glass Fibre Reinforced PET | |
| Maximum Operating Temperature | +150°C | |
Select all | ||
|---|---|---|
Brand Winslow | ||
Number of Contacts 24 | ||
Mounting Type Through Hole | ||
Pin Type Turned | ||
Pitch 2.54mm | ||
Row Width 7.62mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Gold, Tin | ||
Current Rating 5A | ||
Orientation Vertical | ||
Length 30.4mm | ||
Width 10.14mm | ||
Depth 3mm | ||
Dimensions 30.4 x 10.14 x 3mm | ||
Minimum Operating Temperature -65°C | ||
Contact Material Beryllium Copper | ||
Housing Material Glass Fibre Reinforced PET | ||
Maximum Operating Temperature +150°C | ||
