Dormer No Die, M4 x 0.7mm Pitch, 20mm od
- RS Stock No.:
- 272-9313
- Mfr. Part No.:
- F100M4
- Brand:
- Dormer
On back order for despatch 29/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$91.42
(exc. GST)
$100.56
(inc. GST)
| Units | Per unit |
| 1 + | $91.42 |
- RS Stock No.:
- 272-9313
- Mfr. Part No.:
- F100M4
- Brand:
- Dormer
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

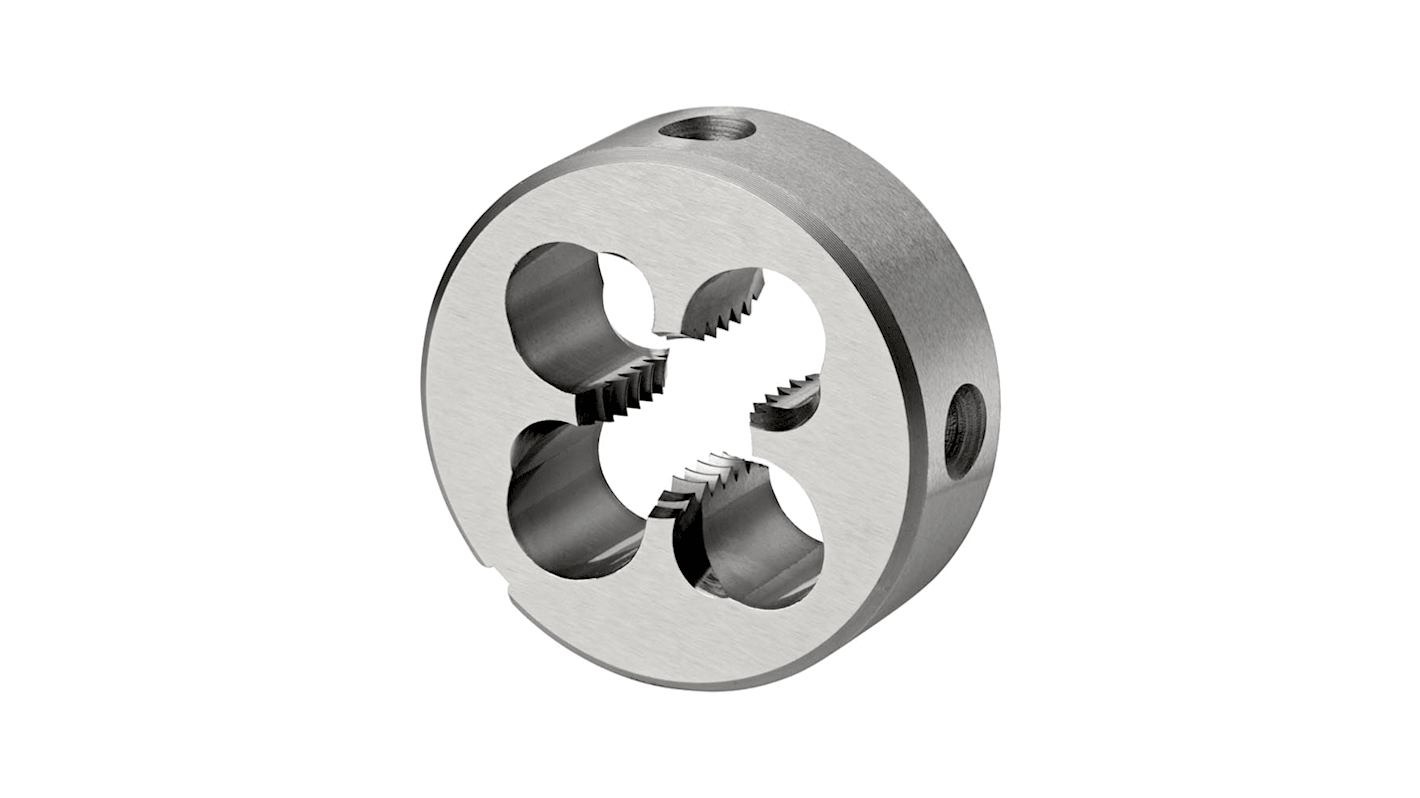

The Dormer M Gun nosed die is a solid die for external thread. It is generally for use on lathes, small diameters can be produced by hand with a die stock holder. The gun nose will drive the chip ahead of the cutting edge, increasing performance. The bright finish lapped surface prevents the work piece material from sticking and improves the threading action.
Thread tolerance class
ISO 2568 Die standards
High speed steel tool material
Right hand rotation and cutting
Thread form and metric coarse
ISO 2568 Die standards
High speed steel tool material
Right hand rotation and cutting
Thread form and metric coarse
Specifications
Attribute | Value |
|---|---|
| Thread Size | M4 |
| Pitch | 0.7mm |
| Outside Diameter | 20mm |
| Thickness | 5mm |
| Material | HSS |
| Left Hand Thread | No |
