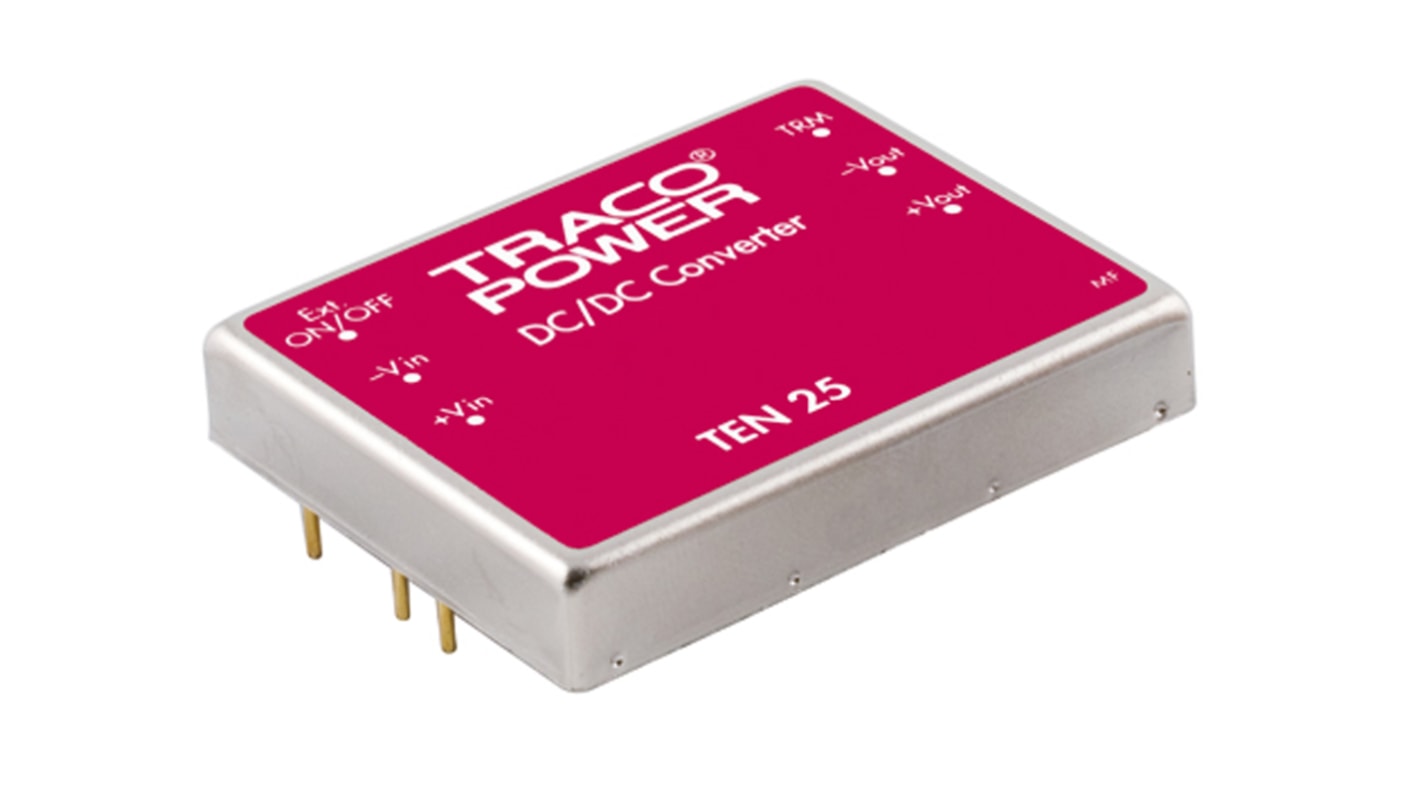

TRACOPOWER TEN 25 DC-DC Converter, 12V dc/ 2.5A Output, 36 → 75 V dc Input, 25W, Through Hole, +85°C Max Temp

RS Stock No.:: 161-9729
Mfr. Part No.:: TEN 25-4812
Brand:: TRACOPOWER

TRACOPOWER TEN 25 DC-DC Converter, 12V dc/ 2.5A Output, 36 → 75 V dc Input, 25W, Through Hole, +85°C Max Temp

Bulk discount available

Price (ex. GST) 1 Tube of 5**

$557.23

(exc. GST)

$612.95

(inc. GST)

Stock check temporarily unavailable - call for stock availability

FREE delivery for orders over $80.00 ex GST

Tube(s)	Per Tube	Per unit**
1 - 1	$557.23	$111.446
2 - 3	$544.99	$108.998
4 +	$533.30	$106.66

**price indicative

RS Stock No.:: 161-9729
Mfr. Part No.:: TEN 25-4812
Brand:: TRACOPOWER

Traco 25W & 30W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 25 Series

5W & 30W single/dual output regulated isolated DC-DC converter modules with a high power density and input voltage range. These regulated isolated DC-DC converter modules have a high efficiency which enables a safe operating temperature range of -40°C to +71°C. Typical applications for these regulated isolated DC-DC converters include industrial electronics, battery operated equipment and distributed power systems.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Wide 2:1 input range
Continuous short circuit protection
Input filtering to EN 55022 Class A and FCC Level A without external components
Remote on/off
Shielded metal case with insulated baseplate
Industry standard-pinout

Standards

UL /cUL 60950, IEC/EN 60950 compliance up to 60 VDC input voltage (SELV limit)

Approvals

cUL/UL , IEC/EN, CSA File No. 226037

TRACOPOWER TEN 25 Series DC-DC Converter, 12V DC Output Voltage, 25W/30W Power Rating - TEN 25-4812

This isolated DC-DC converter efficiently transforms an input voltage ranging from 36V to 75V DC into a stable 12V DC output. With features such as high efficiency and robust performance, this power supply solution is relevant for professionals in automation, electronics, and industrial applications. Its dependable operation across a wide temperature range enhances its significance in varied settings.

Features & Benefits

• Delivers a steady output of 2.5A for effective power delivery
• Operates with a high efficiency rating of 89% to minimise energy loss
• Compact dimensions fit well in space-constrained installations, such as through-hole mounting
• Designed to withstand extreme temperatures from -40 to +85°C
• Complies with IEC/UL 60950-1 standards for safe usage
• Provides ±0.5% load regulation for stable voltage output

Applications

• Suitable for powering circuits in automation systems
• Utilised in industrial equipment to convert higher voltages
• Ideal for electronic devices that require a dependable 12V supply
• Employed in various where isolated power is necessary

What type of mounting is required for this device?

It is designed for through-hole mounting, making installation on PCBs straightforward.

Can it maintain performance in extreme cold conditions?

Yes, it functions effectively in temperatures as low as -40°C.

Is this product suitable for medical applications?

No, it is not approved for medical use.

How does this device ensure safety during operation?

It is IEC/UL certified and adheres to rigorous safety standards.

What is the significance of its isolation feature?

The isolation enhances safety by preventing interference between input and output circuits.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	36 → 75 V dc
Power Rating	25 W, 30W
Input Voltage Nominal	48 V dc
Output Current	2.5A
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	1.6 x 2 in
Isolation Voltage	1.5kV dc
Depth	9.5mm
Width	50.8mm
Length	40.6mm
Series	TEN 25
Load Regulation	±0.5%
Efficiency	89%
Maximum Temperature	+85°C
Minimum Temperature	-40°C
