Fluke 1734/EUS Three Phase Power Energy Monitor & Logger, USB Mini-Port, USB, WiFi, Bluetooth

RS Stock No.:: 134-7349
Distrelec Article No.:: 300-88-978
Mfr. Part No.:: FLUKE-1734/EUS
Brand:: Fluke

Fluke 1734/EUS Three Phase Power Energy Monitor & Logger, USB Mini-Port, USB, WiFi, Bluetooth

Subtotal (1 unit)*

$6,191.00

(exc. GST)

$6,810.10

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$6,191.00

*price indicative

RS Stock No.:: 134-7349
Distrelec Article No.:: 300-88-978
Mfr. Part No.:: FLUKE-1734/EUS
Brand:: Fluke

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Energy Monitor & Logger
	Accuracy	0.1 °C, ± (1 % + 0.1 %)
	Model Number	1734/EUS
	Measurement Parameters	Current, Frequency, Voltage, THD Current, THD Voltage
	Interface Type	USB Mini-Port, USB, WiFi, Bluetooth
	Data Logger Type	Three Phase Power
	Power Source	Battery
	IP Rating	IP50
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Standards/Approvals	IEC 61010-1IEC 61010-2-031: CAT IV 600 V/CAT III 1000 VEN 60529 (IP50)EN 61326-1CISPR 11: Group 1Class AMIL-T-28800EIEEE 1459Korea (KCC): Class AUSA (FCC): 47 CFR 15 subpart B
	Hazardous Area Certification	No
	Length	167mm
	Height	198mm
	Width	55 mm
	Resolution	0.1 %
	Display Type	LCD
	Battery Type	Rechargeable Lithium-ion
	Alarm	No

	Select all
	Brand Fluke
	Product Type Energy Monitor & Logger
	Accuracy 0.1 °C, ± (1 % + 0.1 %)
	Model Number 1734/EUS
	Measurement Parameters Current, Frequency, Voltage, THD Current, THD Voltage
	Interface Type USB Mini-Port, USB, WiFi, Bluetooth
	Data Logger Type Three Phase Power
	Power Source Battery
	IP Rating IP50
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Standards/Approvals IEC 61010-1IEC 61010-2-031: CAT IV 600 V/CAT III 1000 VEN 60529 (IP50)EN 61326-1CISPR 11: Group 1Class AMIL-T-28800EIEEE 1459Korea (KCC): Class AUSA (FCC): 47 CFR 15 subpart B
	Hazardous Area Certification No
	Length 167mm
	Height 198mm
	Width 55 mm
	Resolution 0.1 %
	Display Type LCD
	Battery Type Rechargeable Lithium-ion
	Alarm No

RoHS Status: Exempt

COO (Country of Origin):: RO

FLUKE Energy Monitor and Logger, Vibration Resistant, IP50 Rating - FLUKE-1734/EUS

Want a bells-and-whistles bit of kit combining on-the-go performance with WiFi connectivity? This FLUKE data and energy logger's just the thing. Its intuitive touchscreen and crystal-clear LCD display help you measure, analyse and manipulate info on the voltage, current and power of connected circuits or devices, even when you're in the field. If you prefer to download or wirelessly transfer your data for use later, this device gives you plenty of options with its Energy Analyze Plus software, WiFi support and Fluke Connect compatibility. You can even set the logger to transmit readings automatically making it practically impossible to lose critical measurements.

Features & Benefits

• Intelligent verification function indicates incorrect connections to boost accuracy

• Comes with leads and alligator clips so you can get testing right away

• Includes three flexible current probes, meaning you can measure all three electrical phases

Applications

• Manufacturing facilities

• Research and development labs

• Consumer electronics

What kind of environments can I use this product in?

The logger's IP50 approval means its enclosure is dustproof but doesn't protect against moisture. Combined with an operating temperature range of -10°C to +50°C, this makes it a great shout for harsh industrial environments where moisture's kept below 95% relative humidity.

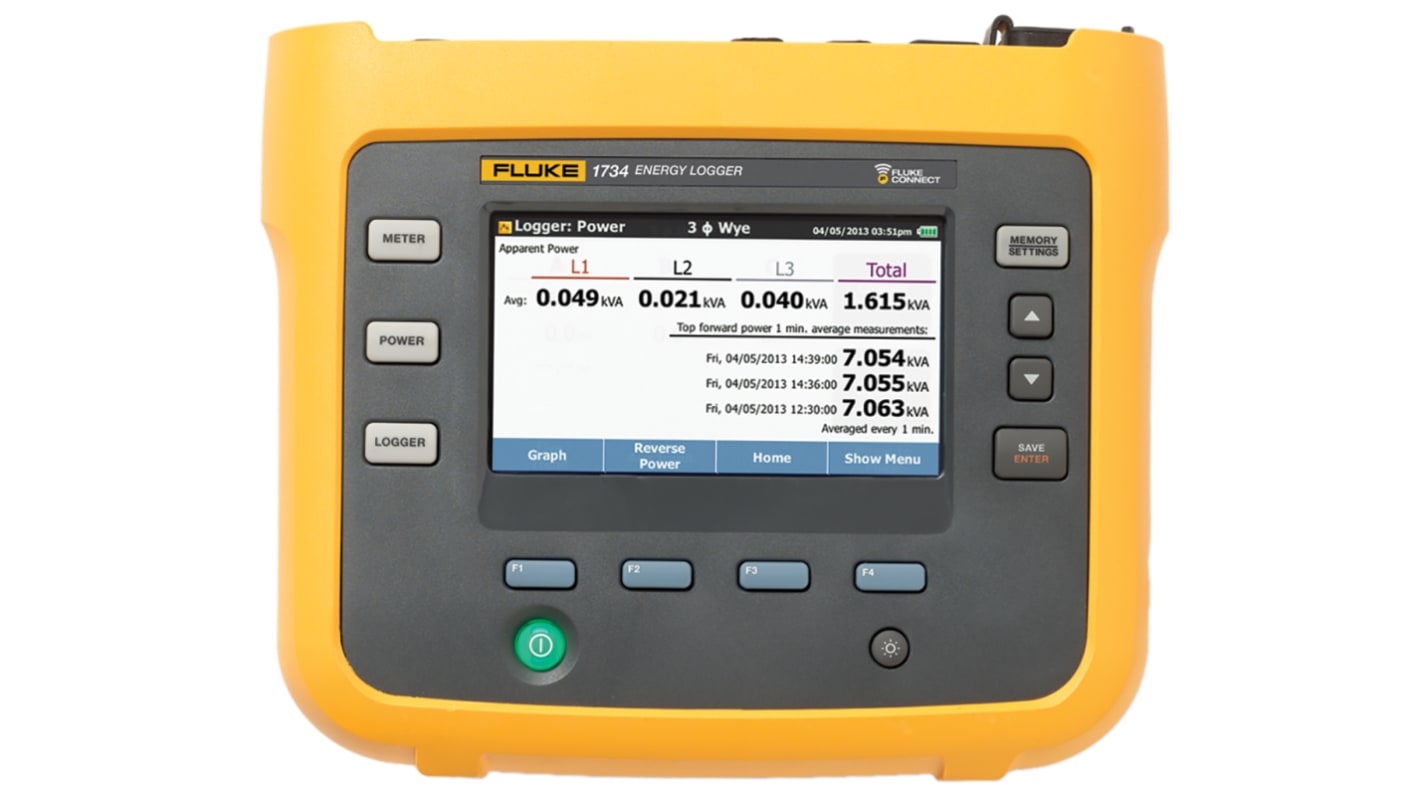

Fluke 1734 3 Phase Electrical Energy Logger

The Fluke 1734 3 phase Electrical Energy logger introduces a new simplicity to discovering sources of electrical energy waste. The Fluke 1734 enables users to capture the data they need to make energy savings in their facilities. The energy logger consists of measurement hardware and application software so that data can be collected and reports created with the minimum of effort. Downloading data is quick, simple and can be written directly to a USB stick without having to use a computer for downloading.;The Energy Analyse application software allows users to download, analyse and compile report in minutes.;Access and share data remotely with your team via the Fluke Connect® app. You can maintain safer working distances and make critical decisions in real time, reducing the need for protective equipment, site visits and check-ins.

Features and Benefits

• Measure all three phases: With included 3 flexible current probes.

• Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments. In fact, all measured values are automatically logged so you never loose measurement trends. They can even be reviewed during logging sessions and before downloading for real-time analysis.

• Optimized user interface: Quick, guided, graphical setup ensures you’re capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty.

• Bright, color touch screen: Perform convenient in-the-field analysis and data checks with full graphical display.

• Optimized user interface: Capture the right data every time with quick, guided, graphical setup and reduce uncertainty about your connections with the intelligent verification function.

• Complete “in-the-field” setup through the front panel or Fluke Connect: No need to return to the workshop for download and setup or to take a computer to the electrical panel.

• Fully integrated logging: Connect other Fluke Connect devices to the Fluke 1734 to simultaneously log up to two other measurement parameters, virtually any parameter available on a Fluke Connect wireless digital multimeter or module.*

• Energy Analyze Plus application software: Download and analyze every detail of energy consumption with our automated reporting.

Fluke 1734/B

Energy logger with Fluke Connect® (excludes current probes), power supply, voltage test leads, alligator clips (4x), soft case, Energy Analyse Plus software, magnetic hanging strap, magnetic voltage probes (4x), line cords, colour coding set and documentation on USB flash drive

Fluke 1734/INTL Contents

Energy logger International with Fluke Connect (includes current probes), power supply, voltage test leads, alligator clips (4x), 12 in 1500 A flexible current probe (3x), soft case, Energy Analyse Plus software, magnetic hanging strap, magnetic voltage probes (4x), WiFi/BLE adapter**, line cords, colour coding set and documentation on USB flash drive

** Not all models are available in all countries.

Fluke 1734/WINTL Contents

Energy logger International wireless version (includes current probes), power supply, voltage test leads, alligator clips (4x), 12 in 1500 A flexible current probe (3x), soft case, Energy Analyse Plus software, magnetic hanging strap, magnetic voltage probes (4x), WiFi/BLE adapter**, line cords, colour coding set and documentation on USB flash drive

**Not all models are available in all countries

Note

CRITICAL SAFETY ALERT - PLEASE READ! Fluke has determined that certain improper use of the test lead set, 3PHVL-1730 or 3PHVL-1735-5M 'Voltage Test Lead, 3-phase + N', included with the 173x Series, 174x Series Power Quality Loggers and 3540FC Power Monitor, may potentially expose users to hazardous conditions, posing the risk of serious personal injury or death.
