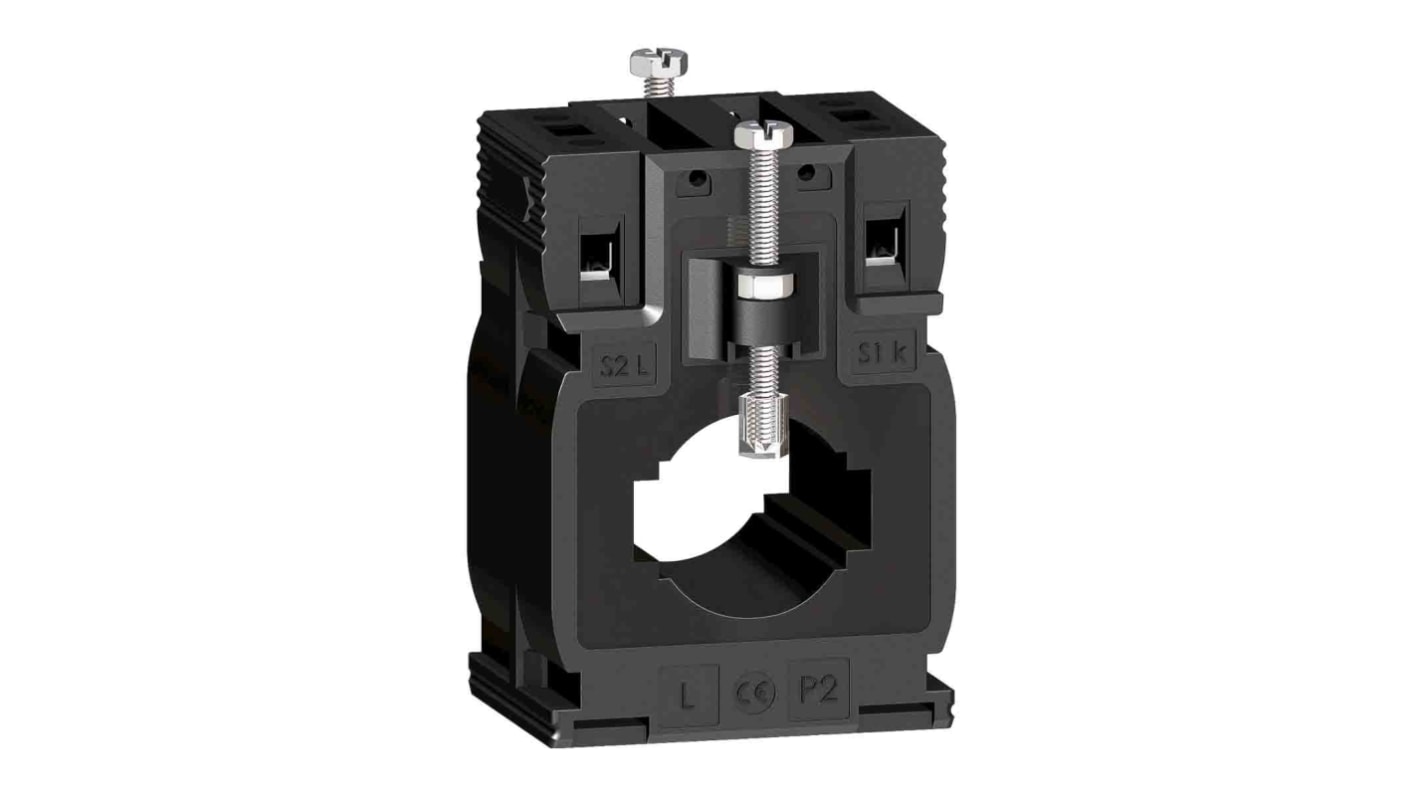

Schneider Electric PowerLogic Series Current Transformer 300 A 300:5 27 mm Bore
- RS Stock No.:
- 198-4495
- Mfr. Part No.:
- METSECT5MA030
- Brand:
- Schneider Electric
Subtotal (1 unit)*
$133.96
(exc. GST)
$147.36
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $133.96 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 198-4495
- Mfr. Part No.:
- METSECT5MA030
- Brand:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Secondary Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 300A | |
| Maximum Operating Temperature | 60°C | |
| Length | 80mm | |
| Depth | 63mm | |
| Width | 56mm | |
| Standards/Approvals | IEC 61869-2, VDE 0414, CE | |
| Weight | 0.3kg | |
| Maximum Operating Frequency | 60Hz | |
| Better World Product | Yes | |
| Mount Type | DIN Rail | |
| Better World Claim | Designed for Disassembly | |
| Minimum Operating Frequency | 50Hz | |
| Bore Size | 27mm | |
| Turns Ratio | 300:5 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Secondary Current 5A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 300A | ||
Maximum Operating Temperature 60°C | ||
Length 80mm | ||
Depth 63mm | ||
Width 56mm | ||
Standards/Approvals IEC 61869-2, VDE 0414, CE | ||
Weight 0.3kg | ||
Maximum Operating Frequency 60Hz | ||
Better World Product Yes | ||
Mount Type DIN Rail | ||
Better World Claim Designed for Disassembly | ||
Minimum Operating Frequency 50Hz | ||
Bore Size 27mm | ||
Turns Ratio 300:5 | ||
Schneider Electric METSECT5MA030 is a current transformer which is tropicalized for bus bar mount having an accuracy Class 0.5 at 3 V ac and Class 1 at 5 V ac This current transformer has Class B electrical insulation class and comes with seal. Comes with an Insulated locking screw mounting mode and a bus bar for support. Schneider ElectricMETSECT5MA030 meets various environmental and other standards such as VDE 0414 and IEC 61869-2. This particular transformer 0.511kg and offers Green Premium product sustainable status.
Wide ratio range 300/5
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
