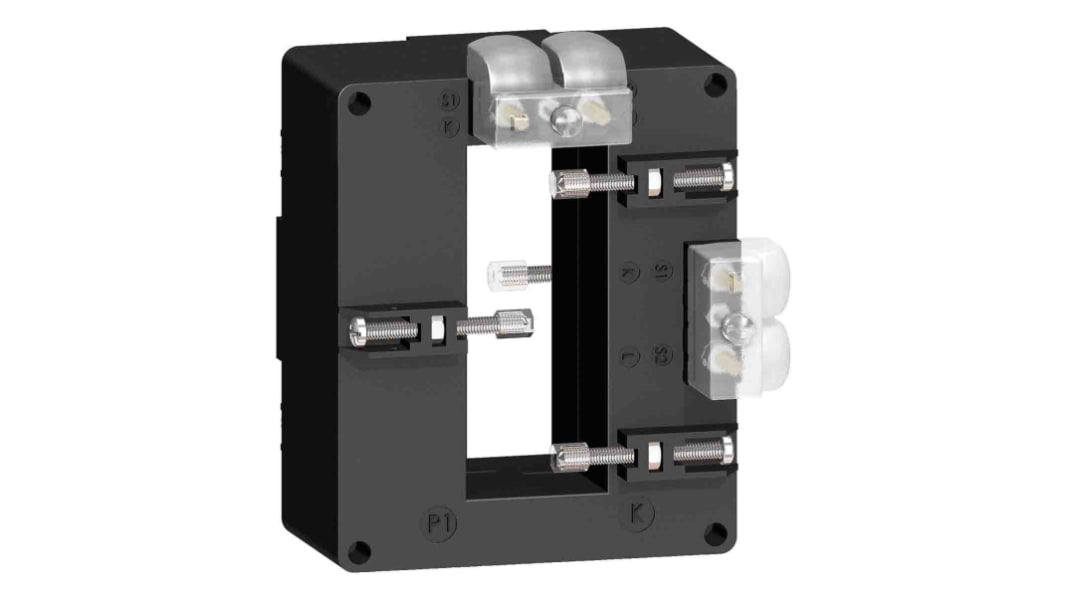

Schneider Electric PowerLogic Series Current Transformer 1500 A 1500:5
- RS Stock No.:
- 198-4484
- Mfr. Part No.:
- METSECT5DD150
- Brand:
- Schneider Electric
Subtotal (1 unit)*
$259.57
(exc. GST)
$285.53
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $259.57 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 198-4484
- Mfr. Part No.:
- METSECT5DD150
- Brand:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Secondary Current | 5A | |
| Minimum Operating Temperature | -25°C | |
| Primary Current | 1500A | |
| Maximum Operating Temperature | 50°C | |
| Weight | 0.68kg | |
| Standards/Approvals | VDE 0414, CE, IEC 61869-2 | |
| Width | 96mm | |
| Depth | 87mm | |
| Length | 116mm | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| Maximum Operating Frequency | 60Hz | |
| Mount Type | Surface | |
| Turns Ratio | 1500:5 | |
| Minimum Operating Frequency | 50Hz | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Secondary Current 5A | ||
Minimum Operating Temperature -25°C | ||
Primary Current 1500A | ||
Maximum Operating Temperature 50°C | ||
Weight 0.68kg | ||
Standards/Approvals VDE 0414, CE, IEC 61869-2 | ||
Width 96mm | ||
Depth 87mm | ||
Length 116mm | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
Maximum Operating Frequency 60Hz | ||
Mount Type Surface | ||
Turns Ratio 1500:5 | ||
Minimum Operating Frequency 50Hz | ||
Schneider Electric METSECT5DD150 is a current transformer which is tropicalized for bus bar mount having an accuracy Class 0.5 at 10 V ac and Class 1 at 15 V ac This current transformer has Class B electrical insulation class and comes with seal. Comes with an Insulated locking screw mounting mode and a bus bar for support. Schneider ElectricMETSECT5DD150 meets various environmental and other standards such as VDE 0414 and IEC 61869-2. This particular transformer 0.511kg and offers Green Premium product sustainable status.
Wide ratio range 1500/5
Tropicalized for cable
5A secondary current
DIN Rail mounting
IP20 protection
