ILSI 0.032768 MHz Crystal Unit 20 ppm Surface Mount 2-Pin 0.9 mm 3.2 mm 1.5 mm
- RS Stock No.:
- 219-2142
- Mfr. Part No.:
- IL3X2-HX5F12.5-32.768KHz
- Brand:
- ILSI

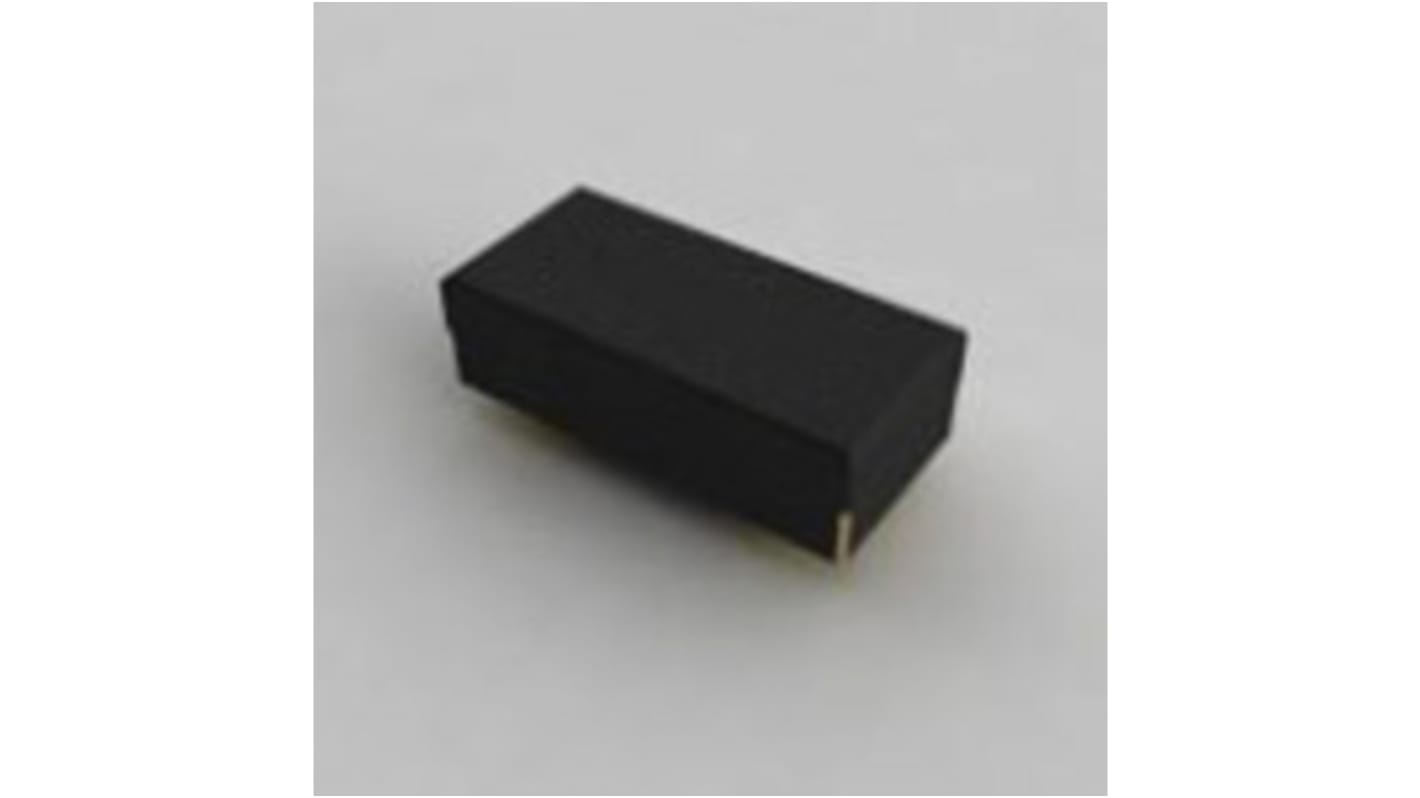

This image is representative of the product range
Bulk discount available
Subtotal (1 tape of 10 units)*
$17.05
(exc. GST)
$18.76
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 740 | $1.705 | $17.05 |
| 750 - 1490 | $1.662 | $16.62 |
| 1500 + | $1.637 | $16.37 |
*price indicative
- RS Stock No.:
- 219-2142
- Mfr. Part No.:
- IL3X2-HX5F12.5-32.768KHz
- Brand:
- ILSI
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ILSI | |
| Standard Frequency | 0.032768MHz | |
| Product Type | Crystal Unit | |
| Mount Type | Surface | |
| Load Capacitance | 12.5pF | |
| Packaging | Tape & Reel | |
| Package Type | Surface Mount | |
| Pin Count | 2 | |
| Length | 3.2mm | |
| Width | 1.5 mm | |
| Height | 0.9mm | |
| Frequency Tolerance | 20 ppm | |
| Minimum Operating Temperature | -40°C | |
| Series Resistance | 70kΩ | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | IL3X2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ILSI | ||
Standard Frequency 0.032768MHz | ||
Product Type Crystal Unit | ||
Mount Type Surface | ||
Load Capacitance 12.5pF | ||
Packaging Tape & Reel | ||
Package Type Surface Mount | ||
Pin Count 2 | ||
Length 3.2mm | ||
Width 1.5 mm | ||
Height 0.9mm | ||
Frequency Tolerance 20 ppm | ||
Minimum Operating Temperature -40°C | ||
Series Resistance 70kΩ | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series IL3X2 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The IL3X2 series crystal has output frequency 32.768 kHz and it is available in SMD package of dimension 3.2 x 1.5 x 0.9mm. It is used as real time clock source and time reference. it is also used in metering and industrial control. It's operating temperature is-40°C to +85°C.
±10ppm Tolerance Available
SMD Package
Low Profile
RoHS and REACH Compliant
