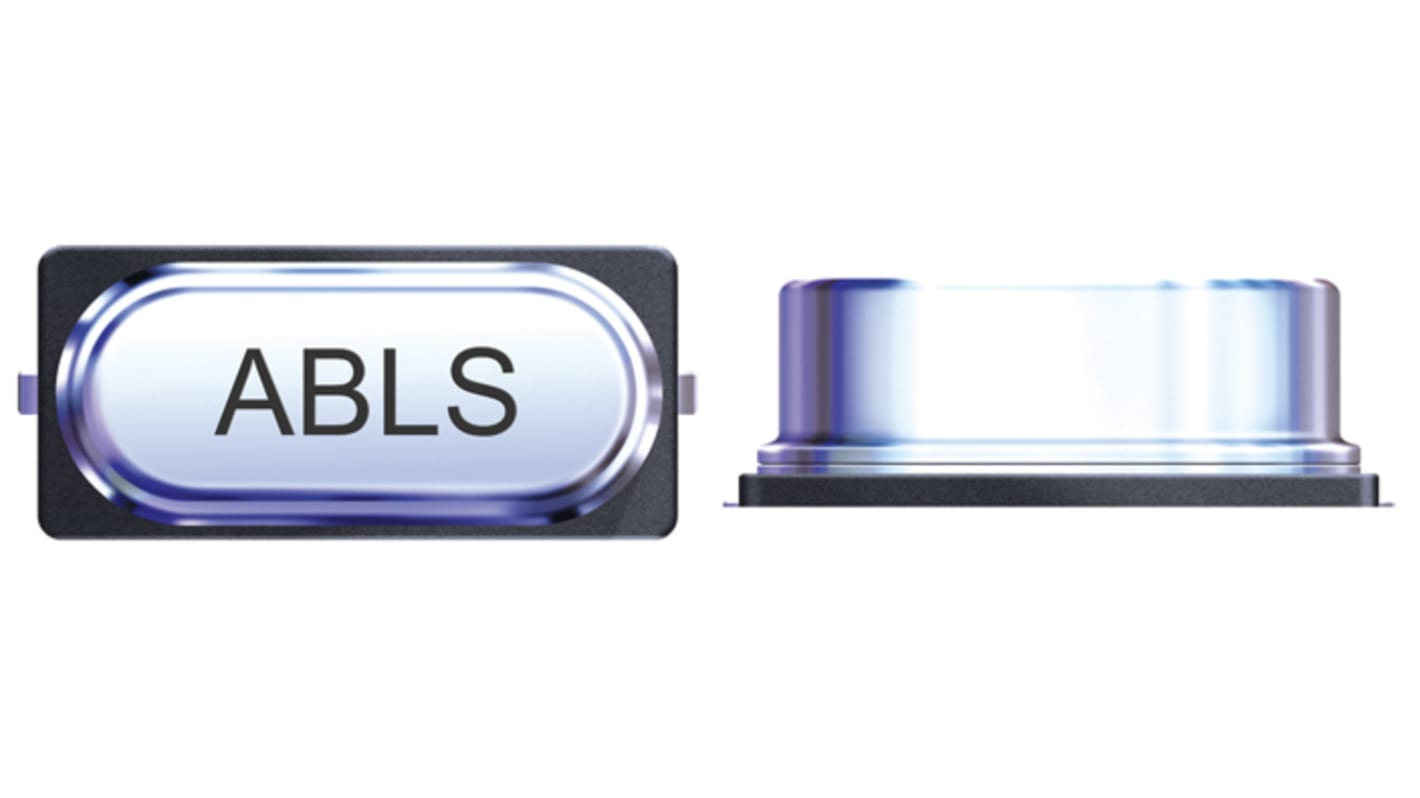

Abracon 16MHz Crystal Unit ±30ppm SMD 2-Pin 11.4 x 4.7 x 4.1mm
- RS Stock No.:
- 187-5754
- Mfr. Part No.:
- ABLS-16.000MHz-16-A-4-H-T
- Brand:
- Abracon
On back order for despatch 01/07/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 1000)
$0.187
(exc. GST)
$0.206
(inc. GST)
| Units | Per unit | Per Reel* |
| 1000 - 1000 | $0.187 | $187.00 |
| 2000 - 3000 | $0.183 | $183.00 |
| 4000 + | $0.18 | $180.00 |
| *price indicative | ||
- RS Stock No.:
- 187-5754
- Mfr. Part No.:
- ABLS-16.000MHz-16-A-4-H-T
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
Available for tight stability & extended temperature range
Applications:
Computers, Modems, Microprocessors
Wireless Applications
Applications:
Computers, Modems, Microprocessors
Wireless Applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Standard Frequency | 16MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 16pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 11.4mm |
| Width | 4.7mm |
| Height | 4.1mm |
| Dimensions | 11.4 x 4.7 x 4.1mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±35ppm |
| Series Resistance | 40Ω |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 60°C |
