MERCURY 8 MHz Crystal ±30 ppm HC-49 2-Pin 4 mm 11.2 mm 4.5 mm
- RS Stock No.:
- 177-5263
- Mfr. Part No.:
- M49-8.000-18-30/50/4085
- Brand:
- MERCURY

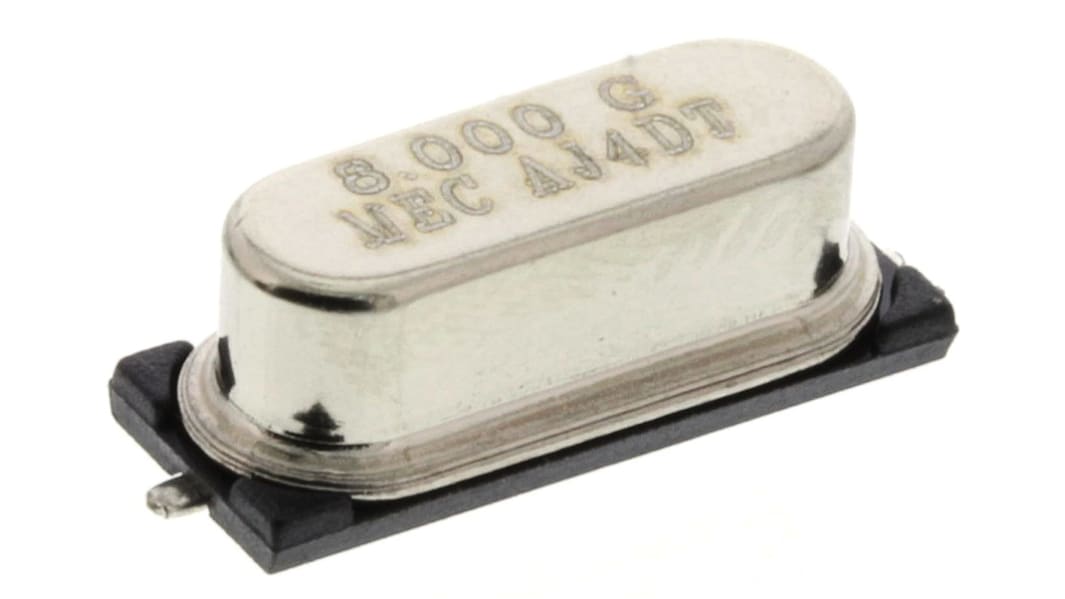

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2500 units)*
$1,412.50
(exc. GST)
$1,555.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | $0.565 | $1,412.50 |
| 5000 - 7500 | $0.551 | $1,377.50 |
| 10000 + | $0.543 | $1,357.50 |
*price indicative
- RS Stock No.:
- 177-5263
- Mfr. Part No.:
- M49-8.000-18-30/50/4085
- Brand:
- MERCURY
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MERCURY | |
| Product Type | Crystal | |
| Standard Frequency | 8MHz | |
| Mount Type | Surface Mount | |
| Load Capacitance | 18pF | |
| Package Type | HC-49 | |
| Packaging | Tape & Reel | |
| Pin Count | 2 | |
| Length | 11.2mm | |
| Width | 4.5 mm | |
| Height | 4mm | |
| Frequency Tolerance | ±30 ppm | |
| Minimum Operating Temperature | -40°C | |
| Frequency Stability | ±50 ppm | |
| Maximum Operating Temperature | 85°C | |
| Series Resistance | 60Ω | |
| Series | M-49 | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand MERCURY | ||
Product Type Crystal | ||
Standard Frequency 8MHz | ||
Mount Type Surface Mount | ||
Load Capacitance 18pF | ||
Package Type HC-49 | ||
Packaging Tape & Reel | ||
Pin Count 2 | ||
Length 11.2mm | ||
Width 4.5 mm | ||
Height 4mm | ||
Frequency Tolerance ±30 ppm | ||
Minimum Operating Temperature -40°C | ||
Frequency Stability ±50 ppm | ||
Maximum Operating Temperature 85°C | ||
Series Resistance 60Ω | ||
Series M-49 | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
M49
Crystals SMT Metal case
