- RS Stock No.:
- 171-0219
- Mfr. Part No.:
- ABLS2-3.6864MHZ-D4Y-T
- Brand:
- Abracon
6000 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (On a Reel of 1000)
$0.30
(exc. GST)
$0.33
(inc. GST)
Units | Per unit | Per Reel* |
1000 - 1000 | $0.30 | $300.00 |
2000 - 9000 | $0.293 | $293.00 |
10000 + | $0.285 | $285.00 |
*price indicative |
- RS Stock No.:
- 171-0219
- Mfr. Part No.:
- ABLS2-3.6864MHZ-D4Y-T
- Brand:
- Abracon
Technical data sheets
Legislation and Compliance
Product Details
ABLS2 Series

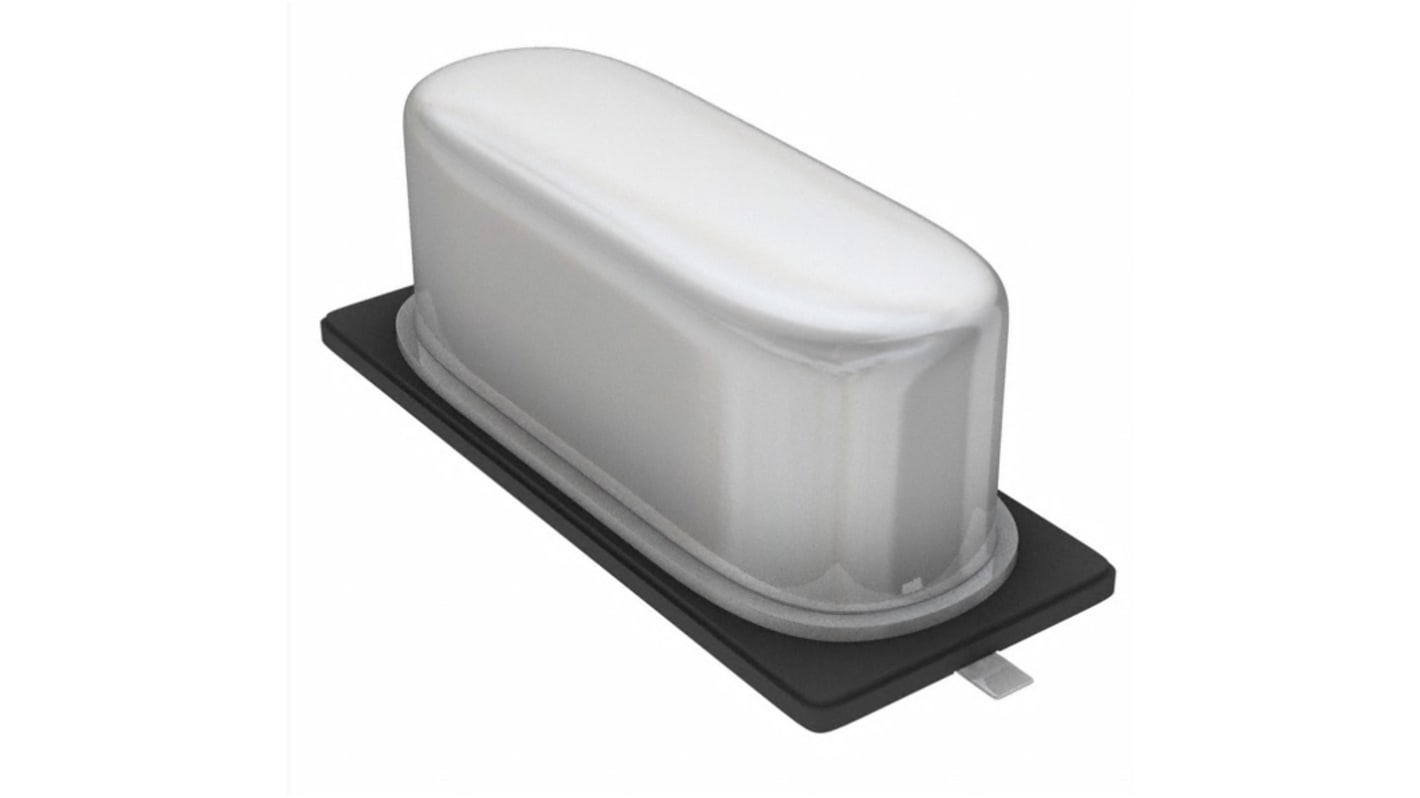

Abracon ABLS2 series HC/49US (AT49) SMD low profile microprocessor crystal has tight stability and extended temperature. Low height reduced to 3.3mm making it suitable for thin equipment.
Applications
Computers
Modems
Microprocessors
Wireless applications
Modems
Microprocessors
Wireless applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Standard Frequency | 3.6864MHz |
Mounting Type | Surface Mount |
Load Capacitance | 18pF |
Package Type | HC49/US |
Length | 11.4mm |
Width | 4.7mm |
Height | 3.3mm |
Dimensions | 11.4 x 4.7 x 3.3mm |
Frequency Tolerance | ±30ppm |
Frequency Stability | ±30ppm |
Maximum Operating Temperature | 85°C |
Minimum Operating Temperature | -40°C |
