Texas Instruments CD4015BE Through Hole Shift Register CMOS PDIP, 16-Pin
- RS Stock No.:
- 268-7474
- Mfr. Part No.:
- CD4015BE
- Brand:
- Texas Instruments

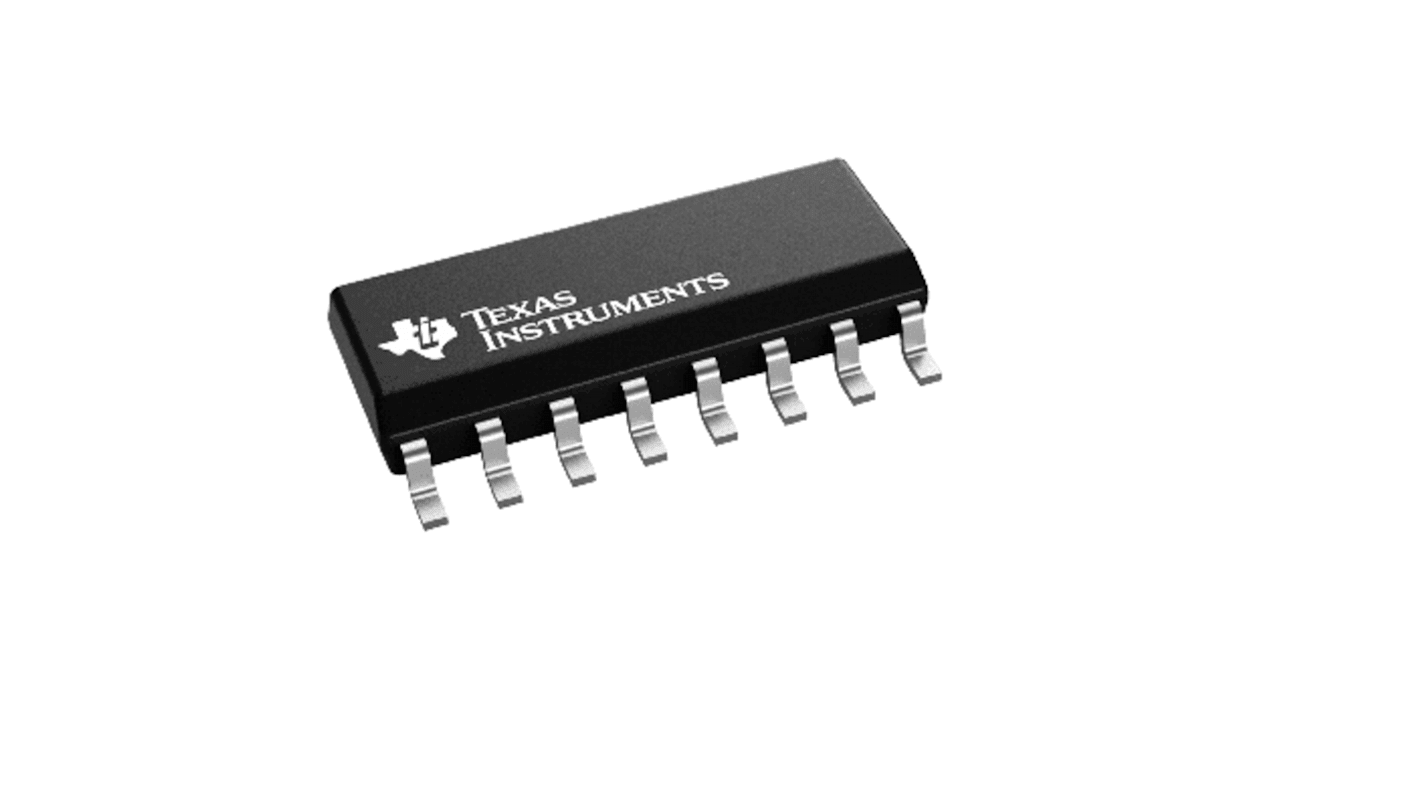

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 25 units)*
$30.125
(exc. GST)
$33.15
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 850 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 75 | $1.205 | $30.13 |
| 100 - 475 | $0.925 | $23.13 |
| 500 - 975 | $0.82 | $20.50 |
| 1000 - 2475 | $0.647 | $16.18 |
| 2500 + | $0.603 | $15.08 |
*price indicative
- RS Stock No.:
- 268-7474
- Mfr. Part No.:
- CD4015BE
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Shift Register | |
| Package Type | PDIP | |
| Logic Family | CMOS | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 3V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 18V | |
| Trigger Type | Positive Edge | |
| Maximum Operating Temperature | 125°C | |
| Series | CD4015B | |
| Width | 13.97 mm | |
| Standards/Approvals | REACH, RoHS | |
| Height | 11230μm | |
| Length | 506mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Shift Register | ||
Package Type PDIP | ||
Logic Family CMOS | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 3V | ||
Pin Count 16 | ||
Maximum Supply Voltage 18V | ||
Trigger Type Positive Edge | ||
Maximum Operating Temperature 125°C | ||
Series CD4015B | ||
Width 13.97 mm | ||
Standards/Approvals REACH, RoHS | ||
Height 11230μm | ||
Length 506mm | ||
The Texas Instruments static shift register consist of duel 4 stage serial input and parallel output register. Each register has independent clock and reset input as well as serial data input and output is available from each of 4 register. All register stages are D type master slave flip flop. This registers resetting of all stages is accomplished by a high level on the reset line.
Provides fully static operation
Standardized and symmetrical output characteristics
100 percent tested for quiescent current at 20 V
