Alpha Wire Alpha Essentials Control Cable, 4 Cores, 0.23 mm², Screened, 30m, Grey PVC Sheath, 24 AWG
- RS Stock No.:
- 828-2405
- Mfr. Part No.:
- 1214C SL005
- Brand:
- Alpha Wire
34 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) 1 Reel of 30 Metre(s)
$397.34
(exc. GST)
$437.07
(inc. GST)
Reel(s) | Per Reel | Per Metre* |
1 + | $397.34 | $13.245 |
*price indicative |
- RS Stock No.:
- 828-2405
- Mfr. Part No.:
- 1214C SL005
- Brand:
- Alpha Wire
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

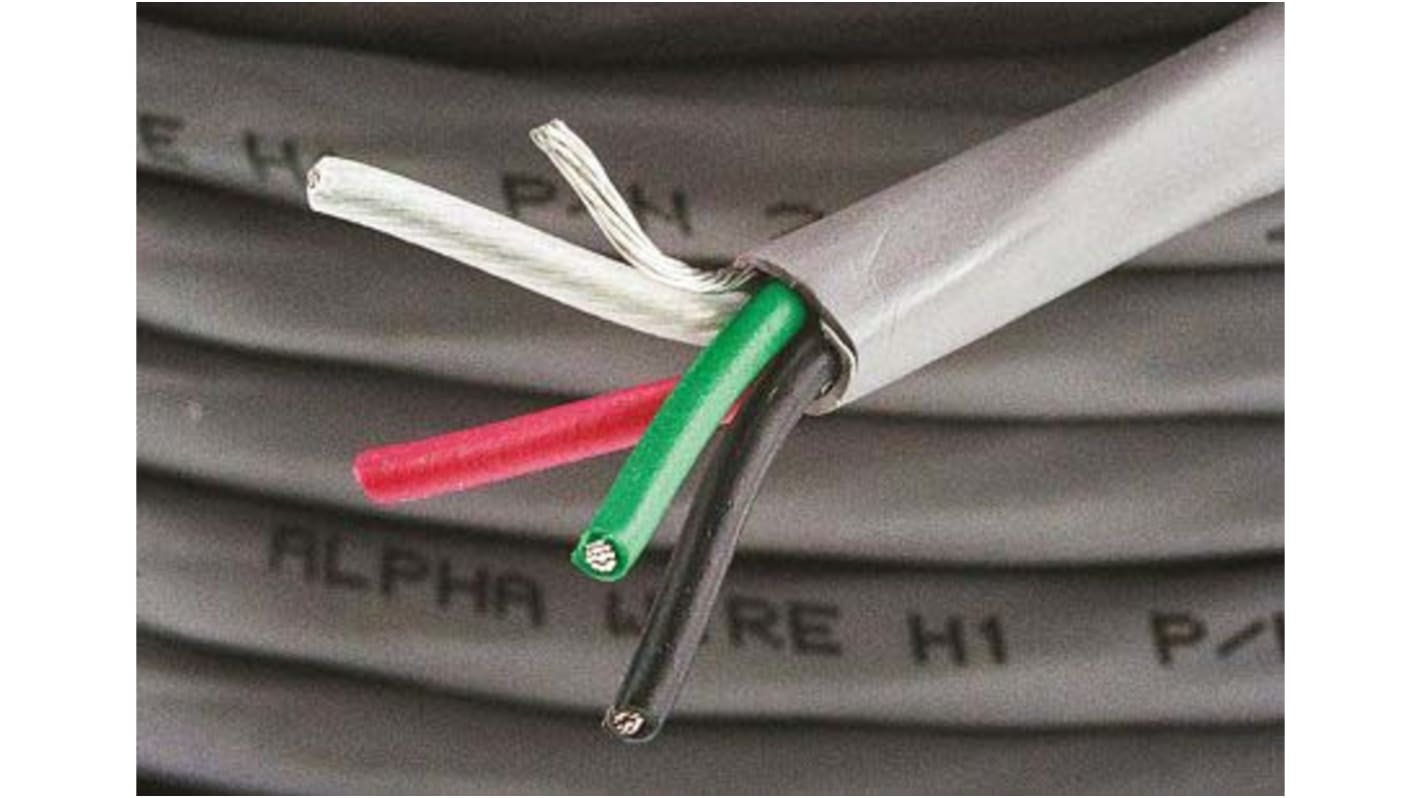

Alpha Wire Control Cable, 4 Cores, 0.23 mm², 30m, Grey PVC Sheath
This is a multi-conductor cable which offers a comprehensive collection of application and installation options so that you can easily select it to meet your most demanding needs. They are also known as multi-core cables, control flex and control flexible cables.
Features and Benefits:
• It is produced with Alum/Mylar Tape, 25% Overlap shield referring to extra protection and strength of the cable
• It has PVC insulation /jacketing materials making it fire resistant and environmentally friendly
• It includes copper conductors of 24 (7/32) AWG preventing corrosion
• It offers a temperature range of -20˚C to 80˚C ensuring flexibility and safety of use
• It has a resilience bend radius which is 10x the cable diameter
• It has PVC insulation /jacketing materials making it fire resistant and environmentally friendly
• It includes copper conductors of 24 (7/32) AWG preventing corrosion
• It offers a temperature range of -20˚C to 80˚C ensuring flexibility and safety of use
• It has a resilience bend radius which is 10x the cable diameter
Applications:
• Audio systems: speakers, microphones, intercoms
• Instrumentation systems
• Business machines including computer peripherals
• Used for mining equipment, crane control
• Security systems such as alarms, cameras, sensors
• Instrumentation systems
• Business machines including computer peripherals
• Used for mining equipment, crane control
• Security systems such as alarms, cameras, sensors
What are the cables electrical properties?
The voltage rating varies to 300 VRMS also, the conductor DCR is 26 Ω/1000ft @20°C, Nominal.
The voltage rating varies to 300 VRMS also, the conductor DCR is 26 Ω/1000ft @20°C, Nominal.
What regulations and standards are met through this cable?
REACH Regulation (EC 1907/2006) meaning this product does not contain Substances of Very High Concern (SVHC). Also, it complies with European Directive 2011/65/EU (RoHS Directive).
Specifications
Attribute | Value |
---|---|
Series | Alpha Essentials |
Number of Cores | 4 |
Cross Sectional Area | 0.23 mm² |
Screened/Unscreened | Screened |
Length | 30m |
Sheath Colour | Grey |
American Wire Gauge | 24 AWG |
Outer Diameter | 4.42mm |
Sheath Material | PVC |
Standards Met | CE, CSA, UL |
Maximum Operating Temperature | +80°C |
Conductor Material | Tinned Copper |
Screen Type | Foil |
Minimum Bend Radius | 10 x Diameter |
Core Strands | 7/0.2 mm |
Voltage Rating | 300 V |
Drain Wire | Yes |
Conductor Resistance | 26 Ω/1000ft |
Insulation Material | PVC |
Minimum Operating Temperature | -20°C |
