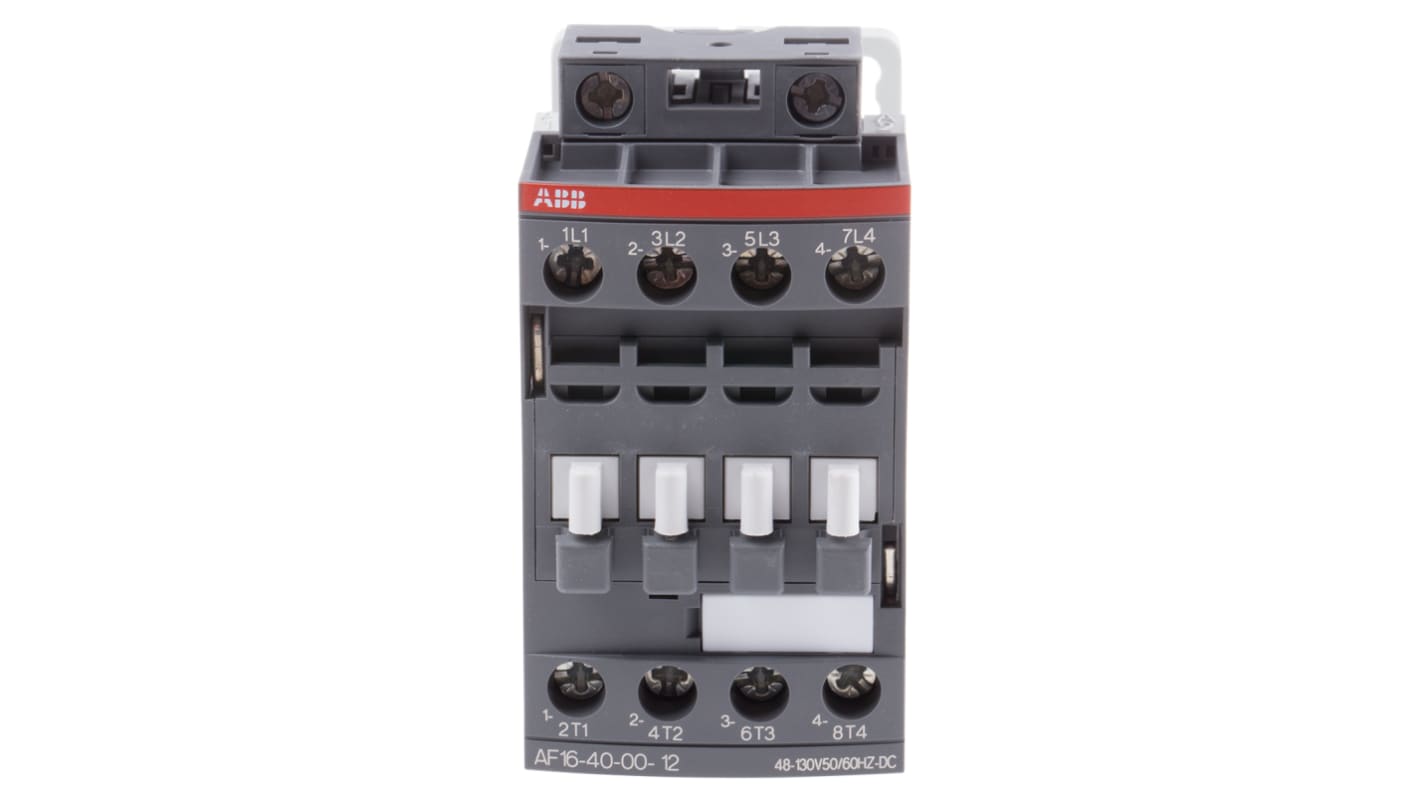

ABB AF16 Contactor, 110V ac/dc Coil, 4-Pole, 7.5 kW 250V, 4 NO, 690V ac

RS Stock No.:: 711-6203
Mfr. Part No.:: 1SBL177201R1200 AF16-40-00-12
Brand:: ABB

ABB AF16 Contactor, 110V ac/dc Coil, 4-Pole, 7.5 kW 250V, 4 NO, 690V ac

View all Contactors

Subtotal (1 unit)*

$152.36

(exc. GST)

$167.60

(inc. GST)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	$152.36

*price indicative

RS Stock No.:: 711-6203
Mfr. Part No.:: 1SBL177201R1200 AF16-40-00-12
Brand:: ABB

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Contactor
	Coil Voltage	110V ac/dc
	Number of Poles	4
	Contact Voltage	690V ac
	Power Rating	7.5kW
	Series	AF16
	Mount Type	DIN Rail
	Function	Motor Control
	Normal State Configuration	4 NO
	Terminal Type	Screw
	Minimum Operating Temperature	-40°C
	Contactor Application	Motor Control
	Operational Current Ie	30A
	Control Circuit Voltage Uc	250V
	Maximum Operating Temperature	70°C
	Standards/Approvals	IEC 60947-4-1
	Width	45mm
	Length	80mm
	Depth	77mm
	Pole and Throw Configuration	4

	Select all
	Brand ABB
	Product Type Contactor
	Coil Voltage 110V ac/dc
	Number of Poles 4
	Contact Voltage 690V ac
	Power Rating 7.5kW
	Series AF16
	Mount Type DIN Rail
	Function Motor Control
	Normal State Configuration 4 NO
	Terminal Type Screw
	Minimum Operating Temperature -40°C
	Contactor Application Motor Control
	Operational Current Ie 30A
	Control Circuit Voltage Uc 250V
	Maximum Operating Temperature 70°C
	Standards/Approvals IEC 60947-4-1
	Width 45mm
	Length 80mm
	Depth 77mm
	Pole and Throw Configuration 4

ABB AF Series Contactor, 4NO Configuration, 4 Pole - 1SBL177201R1200 AF16-40-00-12

The ABB contactor is a high-performance electrical component designed to provide reliable motor protection and control in various industrial applications. With a coil voltage of 110 VAC/DC, a contact current rating of 30 A, and a contact voltage rating of 690 V ac, this contactor ensures optimal performance and safety. The AF16-40-00-12 series offers advanced features to meet the demanding requirements of automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Reliable motor protection and control

• 4NO configuration for versatility in applications

• Screw terminal type for easy installation

• High power rating of 7.5kW for robust performance

• Wide operating temperature range from -40 °C to +70 °C

• Compact design for space-saving installation

Applications

• Used for motor control and power switching in industrial machinery

• Ideal for contactor and motor protection applications in automation systems

• Suitable for use in control panels, switchgear, and distribution boards

Can it withstand extreme temperatures?

Yes, the ABB contactor is designed to operate in a wide temperature range from -40 °C to +70 °C.

Will it fit in standard control panels?

Yes, the compact design of the contactor makes it suitable for installation in various control panels.

Is it easy to install?

With its screw terminal type, the contactor offers easy installation for seamless integration into electrical systems.
