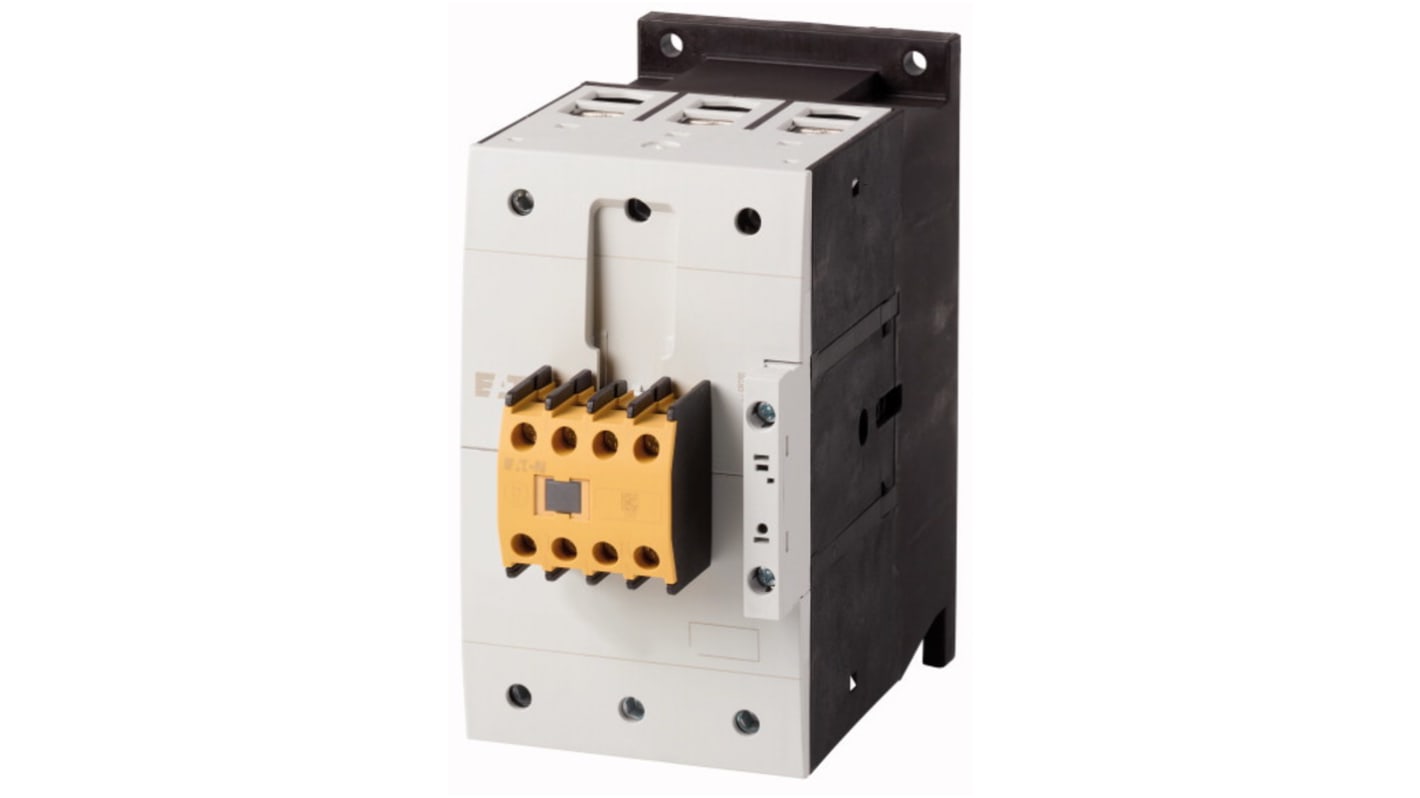

Eaton DILMS150-22(RAC240) Contactor, 230V, 240 V Coil, 3-Pole, 150 A, 75 kW, 2 NO/2 NC, 400V
- RS Stock No.:
- 250-9816
- Mfr. Part No.:
- 191752 DILMS150-22(RAC240)
- Brand:
- Eaton
Subtotal (1 unit)*
$2,392.67
(exc. GST)
$2,631.94
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Stocked by manufacturer
- Ready to ship from 06 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $2,392.67 |
*price indicative
- RS Stock No.:
- 250-9816
- Mfr. Part No.:
- 191752 DILMS150-22(RAC240)
- Brand:
- Eaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Coil Voltage | 230V, 240V | |
| Product Type | Contactor | |
| Number of Poles | 3 | |
| Contact Voltage | 400V | |
| Contact Current | 150A | |
| Series | DILMS150-22(RAC240) | |
| Power Rating | 75kW | |
| Function | Installation Contactor | |
| Normal State Configuration | 2 NO/2 NC | |
| Number of Auxiliary Contacts | 2 | |
| Terminal Type | Screw | |
| Operational Current Ie | 150A | |
| Contactor Application | Installation Contactor | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 175mm | |
| Width | 90mm | |
| Standards/Approvals | UL, IEC/EN 60947, CSA, VDE 0660 | |
| Length | 175mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Coil Voltage 230V, 240V | ||
Product Type Contactor | ||
Number of Poles 3 | ||
Contact Voltage 400V | ||
Contact Current 150A | ||
Series DILMS150-22(RAC240) | ||
Power Rating 75kW | ||
Function Installation Contactor | ||
Normal State Configuration 2 NO/2 NC | ||
Number of Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Operational Current Ie 150A | ||
Contactor Application Installation Contactor | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Depth 175mm | ||
Width 90mm | ||
Standards/Approvals UL, IEC/EN 60947, CSA, VDE 0660 | ||
Length 175mm | ||
- COO (Country of Origin):
- RO
The Eaton Contactors for motors having non-inductive or slightly inductive loads and current rating is up to 170 A. This contactor is also suitable for motors with efficiency class IE3. This contactor having screw termination technique.
Conventional free air thermal current
Screw terminal
UL, CCC, CE certified
