NCS2202AMUTBG onsemi 1-Channel Comparator Open Drain O/P, 35 μs 6 V 0.85 V 6-Pin UDFN
- RS Stock No.:
- 920-9859
- Mfr. Part No.:
- NCS2202AMUTBG
- Brand:
- onsemi

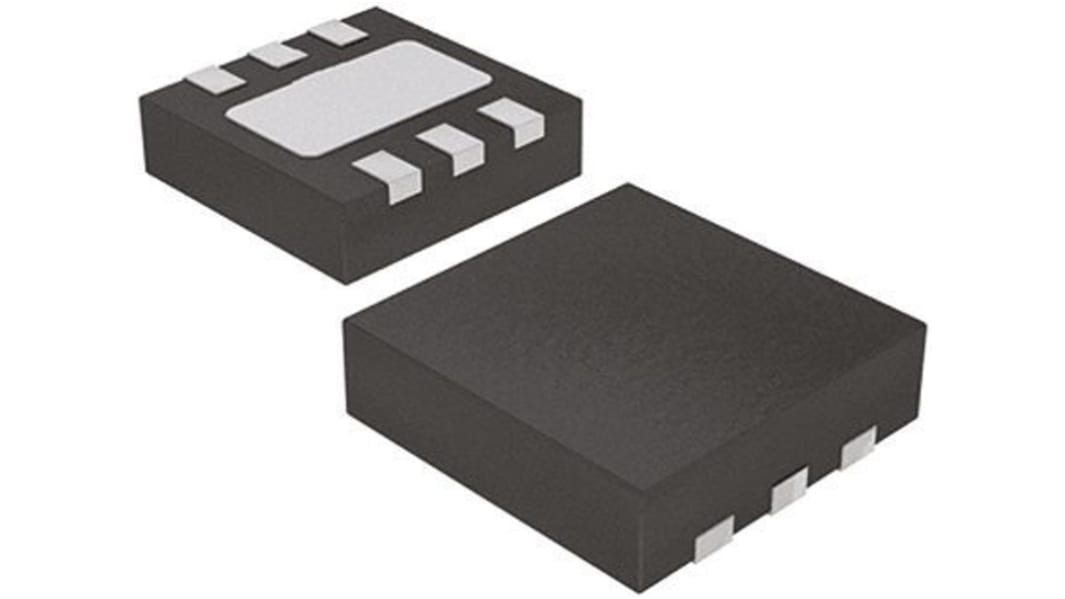

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$7.69
(exc. GST)
$8.46
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 2,935 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 745 | $1.538 | $7.69 |
| 750 - 1495 | $1.532 | $7.66 |
| 1500 + | $1.518 | $7.59 |
*price indicative
- RS Stock No.:
- 920-9859
- Mfr. Part No.:
- NCS2202AMUTBG
- Brand:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Comparator Type | Low Power | |
| Product Type | Comparator | |
| Mount Type | Surface | |
| Package Type | UDFN | |
| Output Type | Open Drain | |
| Number of Channels | 1 | |
| Typical Response Time | 35μs | |
| Pin Count | 6 | |
| Maximum Supply Voltage | 6V | |
| Minimum Supply Voltage | 0.85V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Width | 1 mm | |
| Standards/Approvals | No | |
| Length | 1.2mm | |
| Height | 0.5mm | |
| Series | NCS2200 | |
| Supply Current | 17μA | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Comparator Type Low Power | ||
Product Type Comparator | ||
Mount Type Surface | ||
Package Type UDFN | ||
Output Type Open Drain | ||
Number of Channels 1 | ||
Typical Response Time 35μs | ||
Pin Count 6 | ||
Maximum Supply Voltage 6V | ||
Minimum Supply Voltage 0.85V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Width 1 mm | ||
Standards/Approvals No | ||
Length 1.2mm | ||
Height 0.5mm | ||
Series NCS2200 | ||
Supply Current 17μA | ||
Automotive Standard AEC-Q100 | ||
Comparators, STMicroelectronics
High-Speed Comparators, with fast response times
Low-Power Comparators with operating currents as low as 210nA
High-Temperature qualified devices
Automotive-grade Comparators are AEC-Q100 and AEC-Q101 qualified
Comparators, STMicroelectronics
