Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ROHM
	Comparator Type	Low Current CMOS
	Mounting Type	Surface Mount
	Package Type	SSOP
	Power Supply Type	Dual, Single
	Output Type	Open Drain
	Number of Channels per Chip	1
	Pin Count	5
	Typical Single Supply Voltage	1.8 → 5.5 V
	Dimensions	2.9 x 1.6 x 1.1mm
	Length	2.9mm
	Width	1.6mm
	Height	1.1mm
	Typical CMRR	80dB
	Maximum Operating Temperature	105 °C
	Typical PSRR	80dB
	Typical Dual Supply Voltage	±0.9 to ±2.75V
	Typical Voltage Gain	90 dB
	Minimum Operating Temperature	-40 °C

	Select all
	Brand ROHM
	Comparator Type Low Current CMOS
	Mounting Type Surface Mount
	Package Type SSOP
	Power Supply Type Dual, Single
	Output Type Open Drain
	Number of Channels per Chip 1
	Pin Count 5
	Typical Single Supply Voltage 1.8 → 5.5 V
	Dimensions 2.9 x 1.6 x 1.1mm
	Length 2.9mm
	Width 1.6mm
	Height 1.1mm
	Typical CMRR 80dB
	Maximum Operating Temperature 105 °C
	Typical PSRR 80dB
	Typical Dual Supply Voltage ±0.9 to ±2.75V
	Typical Voltage Gain 90 dB
	Minimum Operating Temperature -40 °C

Datasheet BU7230SG-TR

COO (Country of Origin):: DE

BU7230SG is input full swing and open drain comparator. This comparator have an expanded operating temperature range. These features low operating supply voltage of +1.8V to +5.5V, low supply current and extremely low input bias current.

Low Operating Supply Voltage
Low Supply Current
Input Full Swing
Open Drain Output Type
Wide Operating Temperature Range
Low Input Bias Current

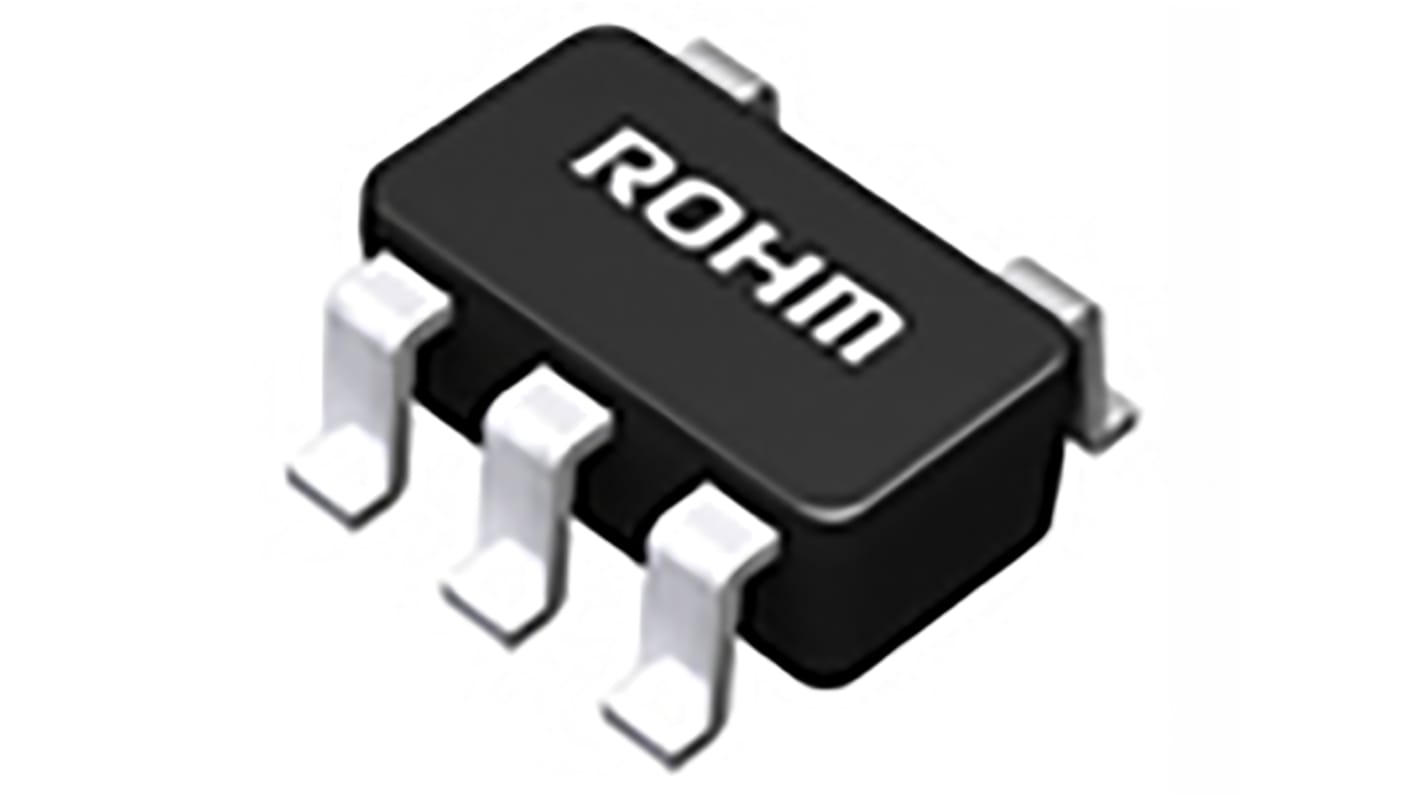

BU7230SG-TR ROHM, Comparator, Open Drain O/P, 1.8 → 5.5 V 5-Pin SSOP
