LM293DR2G onsemi, Dual Comparator, Open Collector O/P, 1.3μs 3 → 28 V 8-Pin SOIC

RS Stock No.:: 170-3426
Mfr. Part No.:: LM293DR2G
Brand:: onsemi

LM293DR2G onsemi, Dual Comparator, Open Collector O/P, 1.3μs 3 → 28 V 8-Pin SOIC

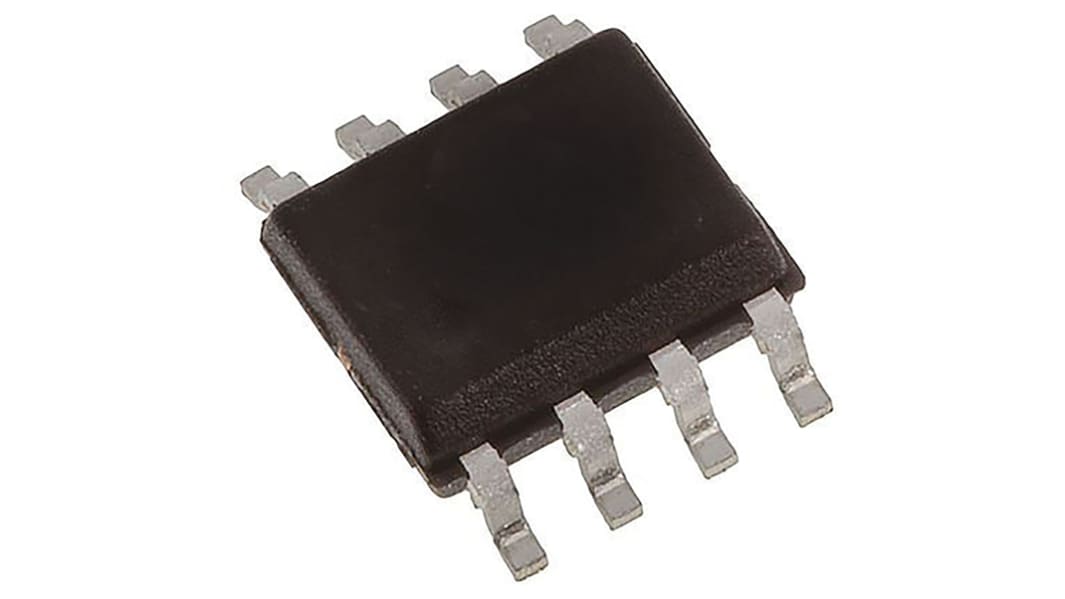

This image is representative of the product range

4195 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (On a Reel of 2500)

$0.149

(exc. GST)

$0.164

(inc. GST)

Units	Per unit	Per Reel*
2500 - 2500	$0.149	$372.50
5000 - 7500	$0.146	$365.00
10000 +	$0.143	$357.50

*price indicative

RS Stock No.:: 170-3426
Mfr. Part No.:: LM293DR2G
Brand:: onsemi

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Comparator Type	General Purpose
Mounting Type	Surface Mount
Package Type	SOIC
Power Supply Type	Dual, Single
Output Type	Open Collector
Number of Channels per Chip	2
Typical Response Time	1.3µs
Pin Count	8
Typical Single Supply Voltage	3 → 28 V
Dimensions	5 x 4 x 1.5mm
Length	5mm
Width	4mm
Height	1.5mm
Typical Voltage Gain	106.02 dB
Typical Dual Supply Voltage	±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Minimum Operating Temperature	-25 °C
Maximum Operating Temperature	+85 °C

LM293DR2G onsemi, Dual Comparator, Open Collector O/P, 1.3μs 3 → 28 V 8-Pin SOIC

Comparators, ON Semiconductor
