onsemi 2-Channel Comparator Rail to Rail O/P, 0.5 μs 6 V 0.85 V 8-Pin UDFN
- RS Stock No.:
- 162-9570
- Mfr. Part No.:
- NCS2220AMUT1G
- Brand:
- onsemi

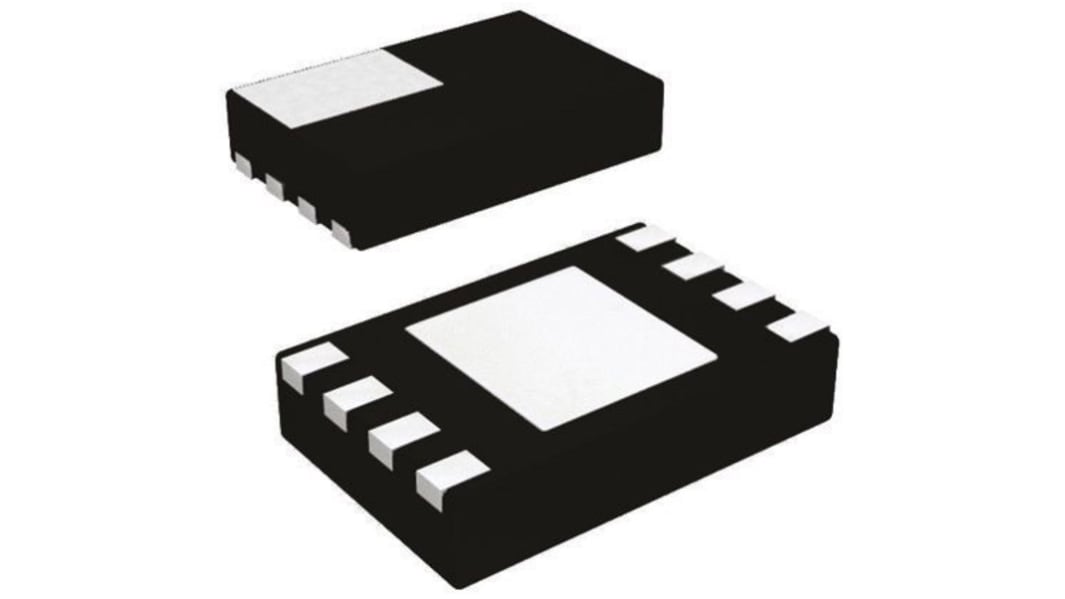

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 3000 units)*
$2,169.00
(exc. GST)
$2,385.00
(inc. GST)
Add 3000 units to get free delivery
Temporarily out of stock
- Shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | $0.723 | $2,169.00 |
| 6000 - 9000 | $0.705 | $2,115.00 |
| 12000 + | $0.694 | $2,082.00 |
*price indicative
- RS Stock No.:
- 162-9570
- Mfr. Part No.:
- NCS2220AMUT1G
- Brand:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Comparator Type | Low Power | |
| Product Type | Comparator | |
| Mount Type | Surface | |
| Package Type | UDFN | |
| Output Type | Rail to Rail | |
| Number of Channels | 2 | |
| Typical Response Time | 0.5μs | |
| Pin Count | 8 | |
| Minimum Supply Voltage | 0.85V | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Height | 0.5mm | |
| Series | NCS2220A | |
| Width | 1.6 mm | |
| Length | 1.6mm | |
| Supply Current | 17μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Comparator Type Low Power | ||
Product Type Comparator | ||
Mount Type Surface | ||
Package Type UDFN | ||
Output Type Rail to Rail | ||
Number of Channels 2 | ||
Typical Response Time 0.5μs | ||
Pin Count 8 | ||
Minimum Supply Voltage 0.85V | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Height 0.5mm | ||
Series NCS2220A | ||
Width 1.6 mm | ||
Length 1.6mm | ||
Supply Current 17μA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
Comparators, ON Semiconductor
Comparators, ON Semiconductor
