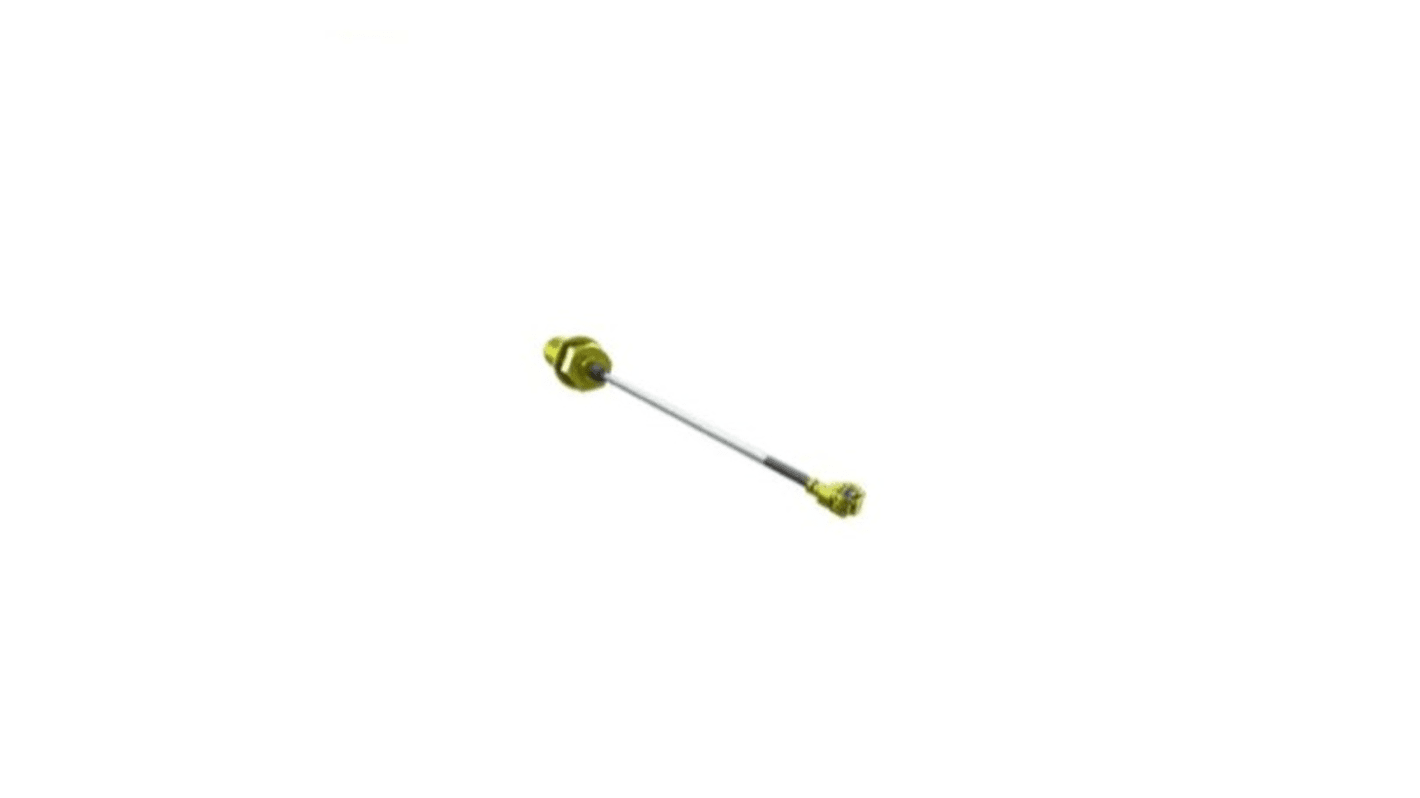

Samtec Male MHF1 to Male MHF1 Coaxial Cable, 70mm, RF Coaxial, Terminated
- RS Stock No.:
- 225-6225
- Mfr. Part No.:
- MH081-MH1RP-MH1RP-0070
- Brand:
- Samtec
On back order for despatch 14/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$10.75
(exc. GST)
$11.83
(inc. GST)
| Units | Per unit |
| 1 - 9 | $10.75 |
| 10 - 24 | $10.42 |
| 25 - 49 | $10.10 |
| 50 - 99 | $9.88 |
| 100 + | $9.66 |
- RS Stock No.:
- 225-6225
- Mfr. Part No.:
- MH081-MH1RP-MH1RP-0070
- Brand:
- Samtec
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
Product Details
The Samtec micro high frequency RF Cable Assembly has diameter of 0.81 mm with performance up to 3 GHz.
36 AWG, 0.81 mm (.032") diameter cable
50 ohm impedance
Available with MHF1 type plug, MHF3 type plug or SMA bulkhead jack terminations
50 ohm impedance
Available with MHF1 type plug, MHF3 type plug or SMA bulkhead jack terminations
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Connector 1 | MHF1 |
| Terminated/Unterminated | Terminated |
| Coaxial Type | RF |
| Connector 2 | MHF1 |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Outer Diameter | 0.81mm |
| Characteristic Impedance | 50 Ω |
| Length | 70mm |
