RS PRO Clamp Meter, 80A dc, Max Current 80A ac CAT III 600V

RS Stock No.:: 146-9096
Distrelec Article No.:: 303-91-473
Brand:: RS PRO

RS PRO Clamp Meter, 80A dc, Max Current 80A ac CAT III 600V

Subtotal (1 unit)**

$289.84

(exc. GST)

$318.82

(inc. GST)

1 In AU stock for next working day delivery*

308 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 +	$289.84

**price indicative

RS Stock No.:: 146-9096
Distrelec Article No.:: 303-91-473
Brand:: RS PRO

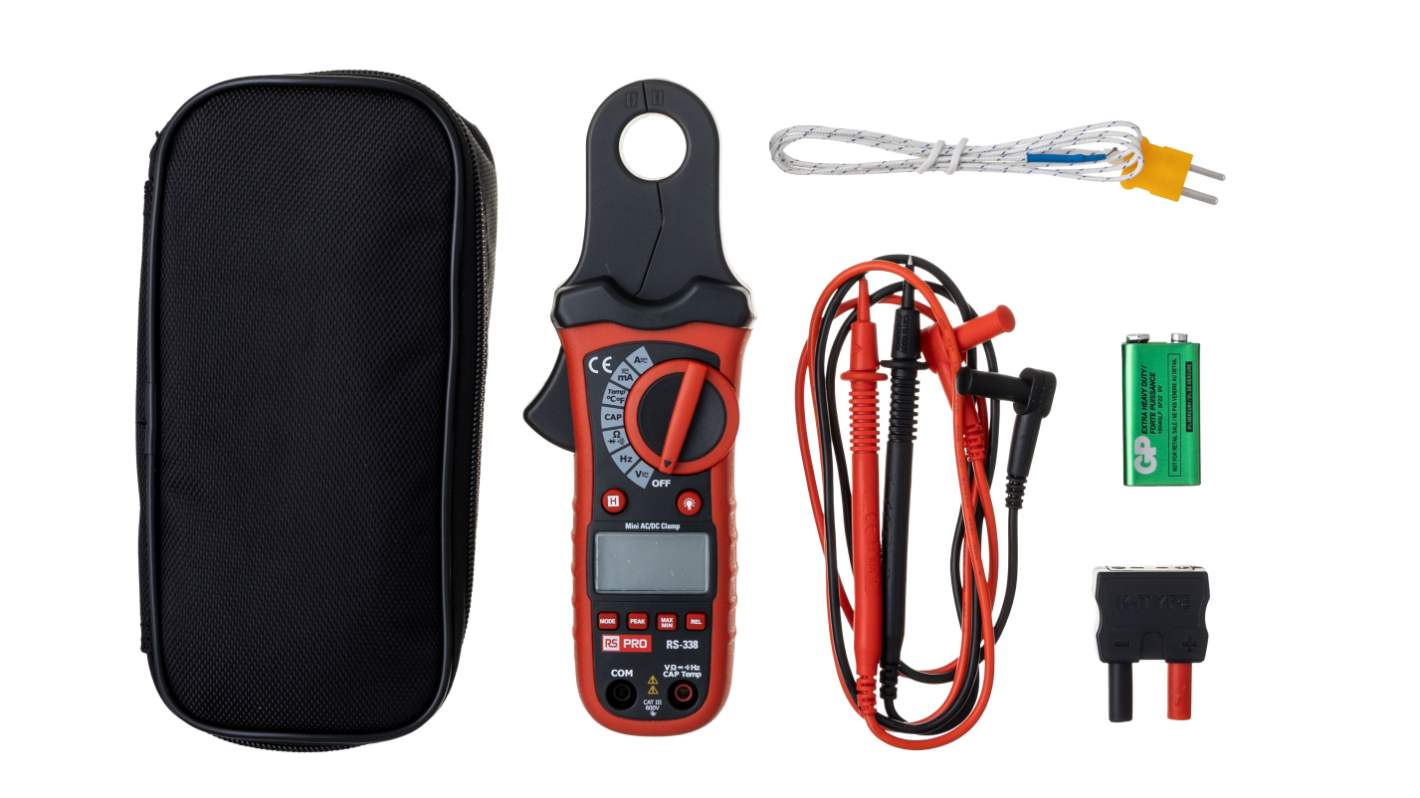

RS PRO Mini AC/DC Clamp Meter

The mini AC/DC clamp meter from RS PRO is a highly reliable device designed to verify the presence of electrical parameters such as load current, voltage, resistance and more. The small design of the meter and jaws make this device ideal for hand held operation and working on the go, with a large back lit display for enhanced readability. The RS PRO mini clamp meter offers a wide measurement range from a very small to large current, providing a powerful yet versatile device. The RS mini AC/DC clamp meter features a test lead mA range with high 1 mA resolution for HVAC and process control applications data. This durable true RMS clamp meter also includes an auto power off feature to preserve battery life and a data hold function, allowing you to freeze the meter reading on the LCD screen.

Features and benefits

• Compact design ideal for working on the go
• Auto power off function to preserve battery life
• Large back lit LCD display screen
• Data hold function to freeze meter readings
• Test lead mA range with high 1 mA resolution for HVAC and process control applications data
• Wide measurement range
• Ideal for measuring various functions such as AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
• Safety category level: CAT III 600V
• True RMS

Applications

Clamp meters are an electrical test tool used to measure electrical characteristics such as AC current, AC and DC voltage, resistance, continuity and more. Clamp meters are often a combination of a basic digital multimeter and a current sensor, offering a versatile electrical measurement tool. Clamp meters are commonly used by:

• Industrial maintenance technicians
• Control technicians
• Electricians – in-house and contractors
• Facilities, building maintenance and HVAC technicians
• Service organisations

FAQs

What battery does this require?

The RS PRO mini AC/DC requires a 9V battery for operation.

What is the maximum opening on the jaw?

The maximum opening of the clamp jaw is approximately 19 mm.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Absolute Maximum AC Current Measurement	80A ac
	Absolute Maximum DC Current Measurement	80A dc
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	40MΩ
	AC Current Measurement Resolution	1mA
	DC Current Measurement Resolution	1mA
	Best DC Current Accuracy	±(3% rdg + 8dgts)
	Clamp Meter Type	Mini AC/DC Clamp Meter
	Best AC Current Accuracy	±(3% rdg + 8dgts)
	Best AC Voltage Accuracy	±(2% rdg + 5dgts)
	True RMS	Yes
	Jaw Capacity Busbars	19mm
	Best DC Voltage Accuracy	±(1.5% rdg + 2dgts)
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
	Resistance Measurement Resolution	100mΩ
	Width	37mm
	Absolute Maximum Temperature Measurement	+760°C
	Power Source	Battery
	Safety Category Voltage	600V
	Battery Type	9V
	Display Type	Backlight
	Safety Category	CAT III 600V
	Best Resistance Measurement Accuracy	±1.5 %
	AC Voltage Measurement Resolution	100µV
	Height	210mm
	DC Voltage Measurement Resolution	100µV
	Dimensions	70 x 37 x 210mm
	Length	70mm
	Temperature Measurement Resolution	0.1°C
	Weight	200g
	Safety Category Level	CAT III
	Best Temperature Measurement Accuracy	±2 °C
