Fluke 325 Clamp Meter, 400A dc, Max Current 400A ac CAT III 600V, CAT IV 300V
- RS Stock No.:
- 765-3660
- Mfr. Part No.:
- FLUKE 325
- Manufacturer:
- Fluke
View all Clamp Meters
49 In stock for delivery within 1 working day(s)
Price (ex. GST) Each
$414.00
(exc. GST)
$455.40
(inc. GST)
| units | Per unit |
| 1 + | $414.00 |
- RS Stock No.:
- 765-3660
- Mfr. Part No.:
- FLUKE 325
- Manufacturer:
- Fluke
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

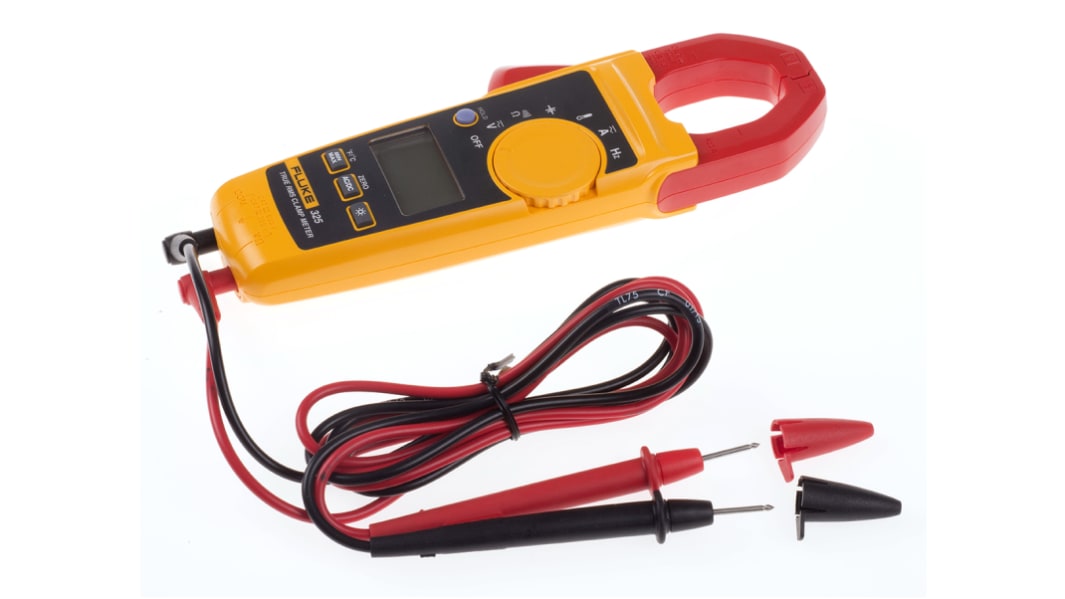

Fluke 325 True-RMS Clamp Meter
The Fluke 320 series True-RMS clamp meter measures current up to 400A AC/DC and voltage up to 600V AC/DC. This product is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. It also offers DC and frequency measurements and is supplied with test leads, a soft case and a user manual. You can trust the 325 to help you confidently diagnose all kinds of electrical problems. It is an ideal troubleshooting tool for commercial and residential electricians.
Features and Benefits:
40kohm resistance measurement
True RMS AC voltage and current for accurate measurements on non-linear signals
Temperature and capacitance measurement
Operating temperature ranges between -10°C and 50°C
Frequency measurement
Slim, ergonomic design
Large, easy to read backlight display
Hold button
The 325 clamp meter can measure:
AC/DC current up to 400 A through jaw
AC/DC voltage to 600 V using test leads
Frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
Temperature from -10 °C to 400 °C with included K-type thermocouple
Min/Max function records important values
True RMS AC voltage and current for accurate measurements on non-linear signals
Temperature and capacitance measurement
Operating temperature ranges between -10°C and 50°C
Frequency measurement
Slim, ergonomic design
Large, easy to read backlight display
Hold button
The 325 clamp meter can measure:
AC/DC current up to 400 A through jaw
AC/DC voltage to 600 V using test leads
Frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
Temperature from -10 °C to 400 °C with included K-type thermocouple
Min/Max function records important values
Applications
Electricians
Commercial sites
Residential plant maintenance
Home inspections
Commercial sites
Residential plant maintenance
Home inspections
Certifications
CE certified
cUS approved
TUV approved
cUS approved
TUV approved
Supplied with
Fluke 325 True-RMS Clamp Meter
TL75 Test Leads
Type K Thermocouple
Two AAA Batteries (Installed)
Soft Case
TL75 Test Leads
Type K Thermocouple
Two AAA Batteries (Installed)
Soft Case
Specifications
| Attribute | Value |
| Absolute Maximum AC Current Measurement | 400A ac |
| Absolute Maximum DC Current Measurement | 400A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 40kΩ |
| Model Number | 325 |
| AC Current Measurement Resolution | 10mA |
| DC Current Measurement Resolution | 10mA |
| Best DC Current Accuracy | ±(2% rdg +5 Digits) |
| Clamp Meter Type | AC/DC Clamp Meter |
| Best AC Current Accuracy | ±(2% rdg +5 Digits) |
| Best AC Voltage Accuracy | ±(1.5% rdg +5 Digits) |
| Best DC Voltage Accuracy | ±(1% rdg +5 Digits) |
| True RMS | Yes |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Frequency, Resistance, Temperature |
| Maximum Operating Temperature | +50°C |
| Absolute Maximum Temperature Measurement | +400°C |
| Temperature Measurement Resolution | 0.1°C |
| Jaw Capacity Busbars | 30mm |
| AC Voltage Measurement Range | 600 V ac |
| Maximum Conductor Size | 30mm |
| DC Current Measurement Range | 40 → 400 A dc |
| Width | 75mm |
| Battery Type | AAA |
| Safety Category Voltage | 300 V, 600 V |
| Safety Category Level | CAT III, CAT IV |
| Weight | 283g |
| AC Current Measurement Range | 40 → 400 A ac |
| AC Voltage Measurement Resolution | 100mV |
| Safety Category | CAT III 600V, CAT IV 300V |
| Resistance Measurement Resolution | 100mΩ |
| Length | 207mm |
| Power Source | Battery |
| Display Type | LCD |
| Height | 34mm |
| Minimum Operating Temperature | -10°C |
| Dimensions | 207 x 75 x 34mm |
| DC Voltage Measurement Resolution | 100mV |
