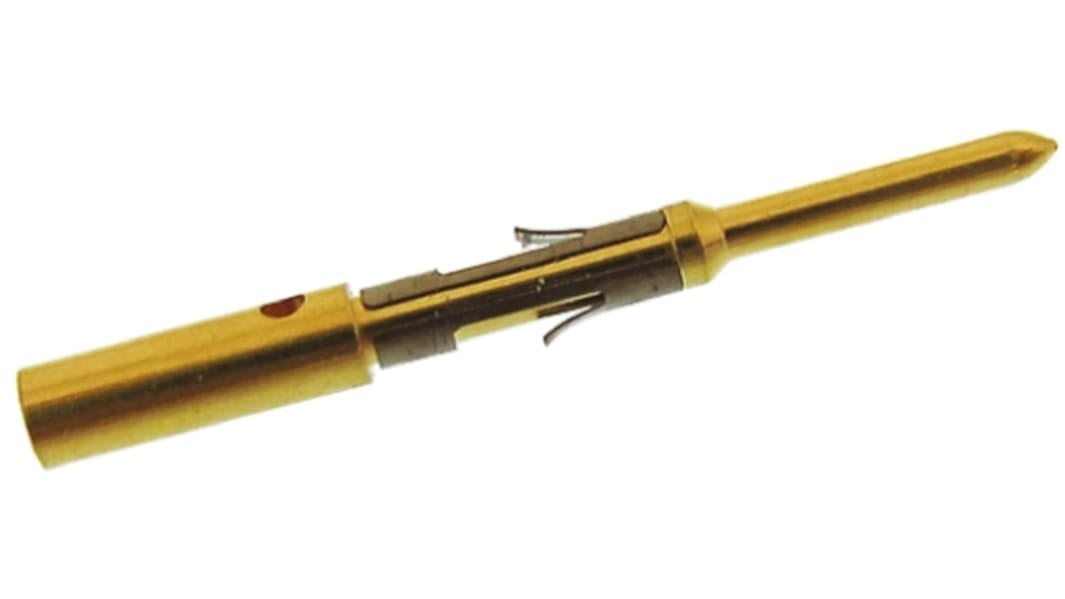

    Lemo Male Crimp Circular Connector Contact, Contact Size 0.9mm, Wire Size 24 → 20

    RS Stock No.:
    760-0098
    Mfr. Part No.:
    FGN.0M.560.05C
    Manufacturer:
    Lemo
    Lemo
    View this category
    85 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each (In a Pack of 5)

    Was $6.762

    You pay

    $6.424

    (exc. GST)

    $7.066

    (inc. GST)

    unitsPer unitPer Pack*
    5 - 20$6.424$32.12
    25 - 120$6.376$31.88
    125 - 245$6.304$31.52
    250 +$6.106$30.53
    *price indicative
    RS Stock No.:
    760-0098
    Mfr. Part No.:
    FGN.0M.560.05C
    Manufacturer:
    Lemo
    COO (Country of Origin):
    CH

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CH

    Product Details

    Lemo M Series Gold Plated Contacts for M Series Connectors


    Lemo M Series gold plated contacts for use with M Series connectors, plugs, free and fixed sockets.

    Gold plated brass contacts (male)
    Gold plated bronze contacts (female)

    Note

    For typical connectors see typically: 760-0102 , 760-0165 , 760-0124 and associated ranges. For positioners see : 760-0180 , 760- 0187 , 760-0183 , 760-0196 for extraction tools see : 760-0199 and 760-0193


    Lemo M series Connectors


    Lemo M series connectors are constructed of high grade high strength anodized aluminium and offer IP68 rating when mated. The M-Series connector is one of the smallest multi-pin, vibration-secure and sealed connectors with high pin-count density and 3600 EMC shielding protection. These Lemo M series connectors are ideal for many applications such as vehicle-mounted and aircraft electronics, military and motorsport. The Lemo M series circular connector range provides significant size and weight advantages over MIL-38999 connectors. Designed for use in harsh environments the Lemo M Series connectors have been tested to the full range of MIL tests including , gunfire, altitude, vibration, lightning, temperature, immersion, chemical and flammability.

    Specifications

    AttributeValue
    GenderMale
    Contact Size0.9mm
    Wire Size24 → 20
    Termination MethodCrimp
    SeriesM
    For Use WithM Series Connectors
    Contact PlatingGold
    Contact MaterialBrass
    Minimum Operating Temperature-55°C
    Mounting TypeCable Mount
    Maximum Operating Temperature+200°C
