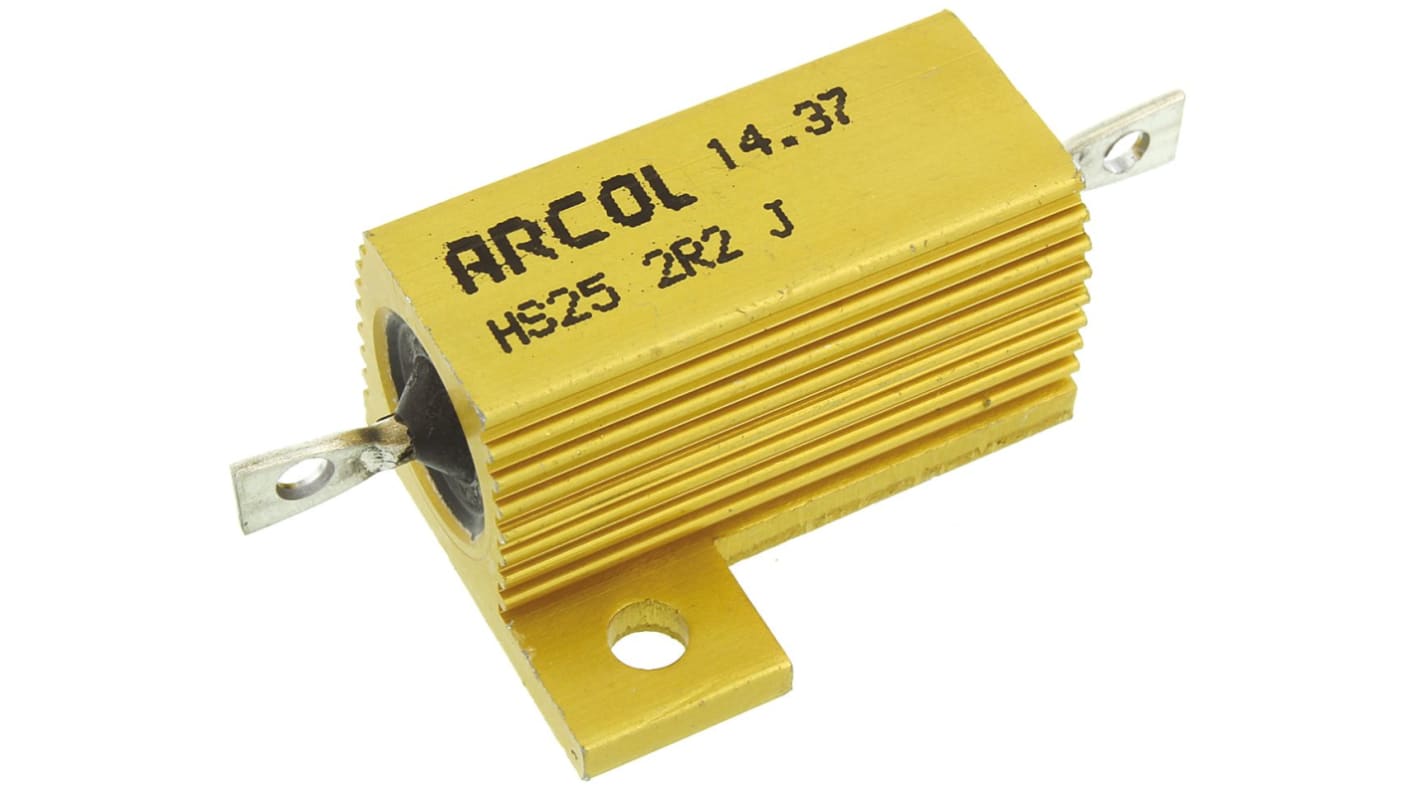

Name: Arcol, 2.2Ω 25W Wire Wound Chassis Mount Resistor HS25 2R2 J ±5%
Brand: Arcol
SKU: 166-4089
Price: 4.71 AUD
Availability: InStock

25W Aluminium housed wirewound power resistor, HS Series

From Arcol, the HS25 series of aluminium housed resistors are high power and offer a balance of pulse power capability and volume. These 25 W panel mount resistors are manufactured in line with IEC 115 and MIL 18546. These panel mount resistors are designed for direct heatsink mounting with thermal compound, which ensures maximum performance.

Features and Benefits:

At high ambient temperatures, dissipation derates linearly to zero at +200 °C

Wirewound to maximise high pulse capability

Compact size for power rating

Note

To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.

Units	Per unit	Per Bag**
25 - 25	$4.283	$107.075
50 - 75	$4.176	$104.40
100 +	$4.111	$102.775

Select all	Attribute	Value
	Brand	Arcol
	Resistance	2.2Ω
	Power Rating	25W
	Series	HS25
	Package/Case	Aluminium Housed
	Tolerance	±5%
	Technology	Wire Wound
	Termination Style	Axial
	Minimum Temperature Coefficient	-100ppm/°C
	Maximum Temperature Coefficient	+100ppm/°C
	Dimensions	14.6 x 51 x 28mm
	Overall Length	51mm
	Overall Width	28mm
	Overall Height	14.6mm

	Select all
	Brand Arcol
	Resistance 2.2Ω
	Power Rating 25W
	Series HS25
	Package/Case Aluminium Housed
	Tolerance ±5%
	Technology Wire Wound
	Termination Style Axial
	Minimum Temperature Coefficient -100ppm/°C
	Maximum Temperature Coefficient +100ppm/°C
	Dimensions 14.6 x 51 x 28mm
	Overall Length 51mm
	Overall Width 28mm
	Overall Height 14.6mm
