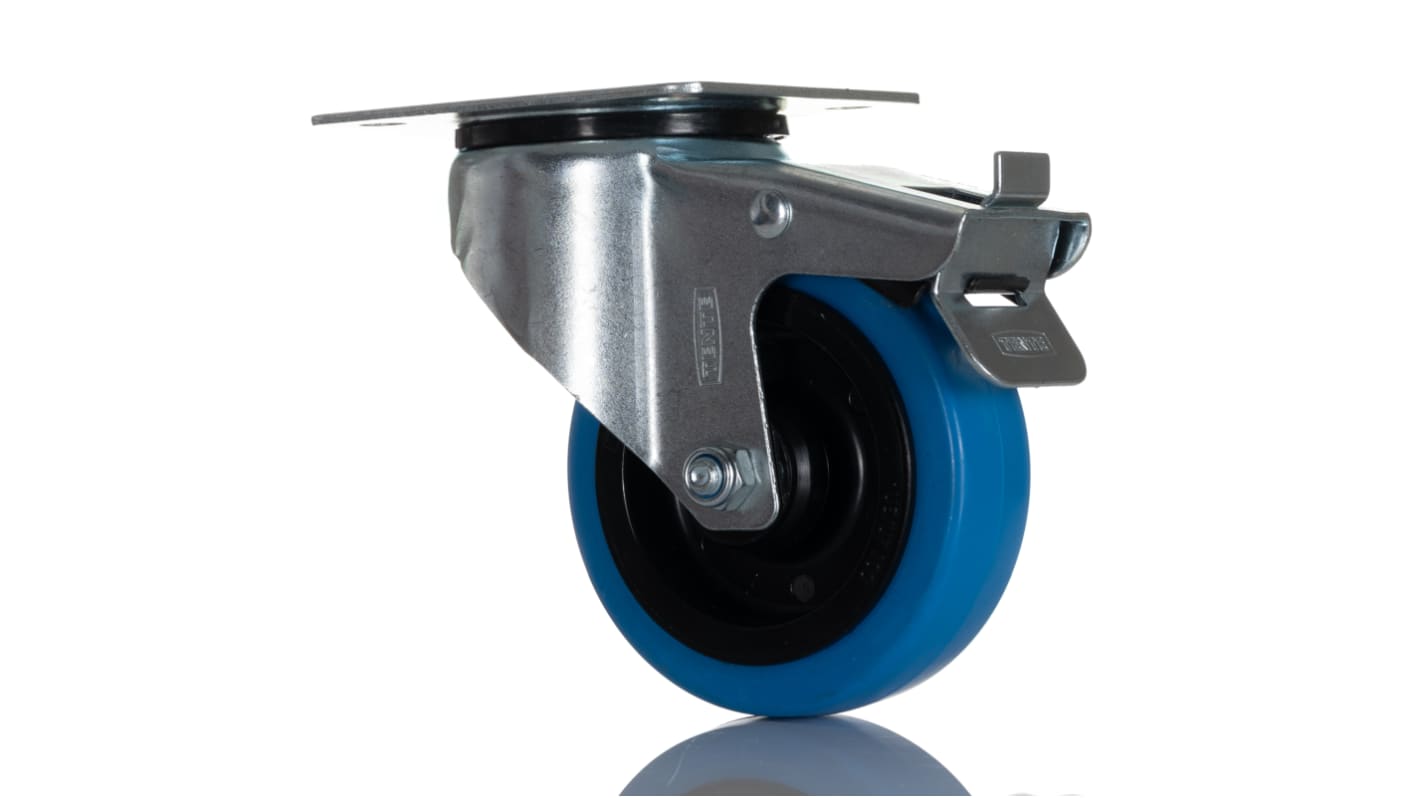

Tente Swivel Castor Wheel, 150kg Capacity, 100mm Wheel

RS Stock No.:: 454-1139
Mfr. Part No.:: 902197
Brand:: Tente

Tente Swivel Castor Wheel, 150kg Capacity, 100mm Wheel

216 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$71.51

(exc. GST)

$78.66

(inc. GST)

Units	Per unit
1 - 5	$71.51
6 - 11	$70.77
12 +	$69.63

RS Stock No.:: 454-1139
Mfr. Part No.:: 902197
Brand:: Tente

Technical data sheets

Legislation and Compliance

RoHS Status: Not Applicable

Product Details

Tente Alpha Castor Wheel

The Alpha series from Tente is a practical castor system with technical components allowing central locking, variable fitting options and optimised steering.

Features and Benefits

Total lock for simultaneously locking the wheel and swivel housing

User friendly central lock for simultaneously locking more than one castor using a central actuation lever

Optimised steering with a directional lock for steering around bends as well as straight lines

Variable fitting options for a large range of applications

Double ball bearing swivel head for easy steering

Low vibration and shock absorbing properties due to extra soft wheels

Ergonomically friendly wheels with optimised rolling resistance

Wheels made from heat resistant materials for extreme environments

Low wear and tear

All metal components made from stainless steel

Swivel bearing with dust ring for uninterrupted movement

Sealed bearings to protect against water spray and dirt

Quiet rolling for a noise reduced working environment

Product Application Information

The Alpha range of castors from Tente have been specially designed to be used on induction trolleys and other transport devices.

ALPHA 3377UFR100P62 blue

Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of Polyamide, Tread: elastic-tyre, non-marking, roller bearing.

Rubber tyred wheels are available in a wide range of sizes, load capacities and colours with a choice of nylon, plastic, cast iron and pressed metal centres. Rubber tyred wheels are suitable for use on most floors.

Specifications

Attribute	Value
Wheel Diameter	100mm
Load Capacity	150kg
Mounting Type	Plate
Includes Brake	Yes
Overall Height	128mm
Wheel Width	34mm
Rotation	Swivel
Tyre Material	Rubber
Fixing Centres	80 x 60mm
Fixing Plate Dimensions	105 x 80mm
Number of Fixing Holes	4
Fixing Hole Size	9mm
Weight Class	Heavy Duty
Hub Bearing Type	Roller Bearing
Hub Material	Polyamide
