RS PRO Capacitive switch Latching NO Illuminated, Blue, White, IP68 Brass

View all Capacitive Switches
Bulk discount available
View bulk pricing options

Subtotal (1 unit)*

$85.28

(exc. GST)

$93.81

(inc. GST)

Add to Basket
Select or type quantity
Being discontinued
  • Plus 48 unit(s) shipping from 27 April 2026
  • Plus 22 unit(s) shipping from 04 May 2026
  • Final 96 unit(s) shipping from 15 September 2026

Units
Per unit
1 - 23$85.28
24 - 119$84.25
120 +$69.34

*price indicative

Packaging Options:
RS Stock No.:
823-2741
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Capacitive switch

Switch Operation

Latching

Switch Type

Capacitive

Switch Function

NO

Housing Material

Polycarbonate

LED Colour

Blue, White

Illuminated

Yes

Maximum Input Voltage

30V dc

Minimum Input Voltage

5V dc

Housing Colour

Black

Actuator Colour

Black

IP Rating

IP68

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Contact Material

Brass

Height

20mm

Standards/Approvals

RoHS

Depth

20mm

COO (Country of Origin):
TW

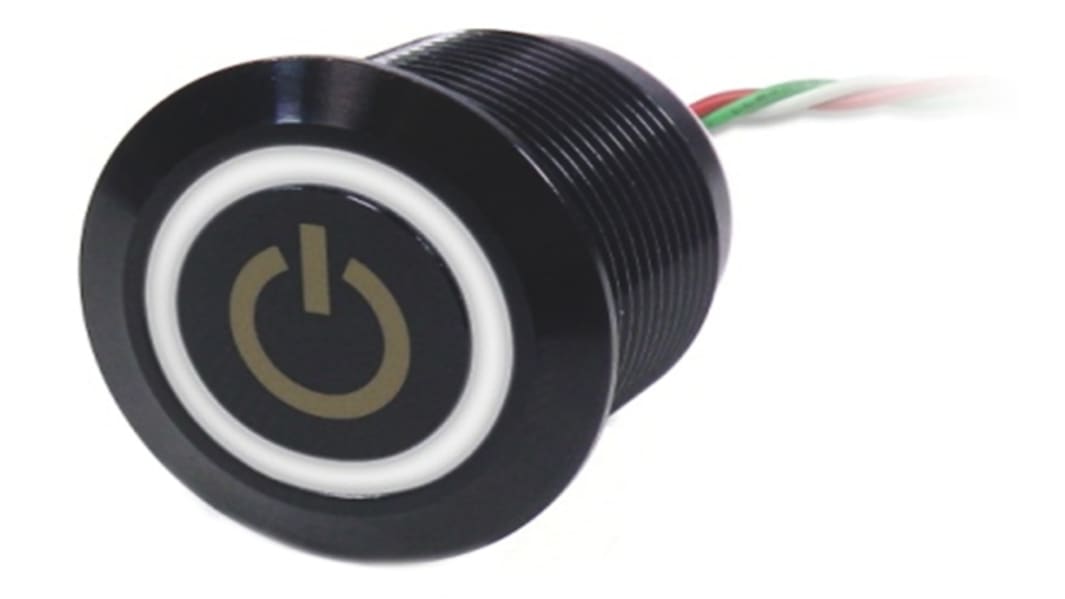

RS PRO Capacitive Touch Switch Latching NO, Illuminated Blue, White, IP68 Brass


When you need a switch that's easy to operate, this RS PRO touch button is a handy solution. It's capacitive, so it's ideal for workers in food processing plants and medical laboratories as it can be used while wearing gloves.

The tough anodised aluminium case has a high protection rating of IK10, so it can withstand 20 joules of impact. The electrical life of this button is 1,000,000 cycles at full load, so it's a durable option for appliances and machinery in constant use.

This switch has been thoroughly temperature, salt spray and water-proof tested and has an Ingress Protection (IP) rating of IP68, so it's suitable for marine equipment and water processing plant applications. It's also useful in areas regularly cleaned for hygiene purposes such as hospitals. The thermoplastic housing meets the UL94 V-0 flammability standard for safety and is resistant to UVA and UVB light so suitable for use in strong sunlight or under artificial lamps.

Features and Benefits


• Black actuator colour

• Black case colour

• Brass contact material

• Current rating of 1.5 A at 30 V DC

• Illuminated

• IP68 rated

• Blue, white LED colour

• Input voltage range of 5 V DC to 30 V DC

• No switch function

• Latching switch operation

• Capacitive switch type
