- RS Stock No.:
- 433-0850
- Mfr. Part No.:
- 52103320+52106810
- Brand:
- Lapp
105 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$17.54
(exc. GST)
$19.29
(inc. GST)
Units | Per unit | Per Pack* |
5 - 20 | $17.54 | $87.70 |
25 - 45 | $17.324 | $86.62 |
50 + | $16.918 | $84.59 |
*price indicative |
- RS Stock No.:
- 433-0850
- Mfr. Part No.:
- 52103320+52106810
- Brand:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

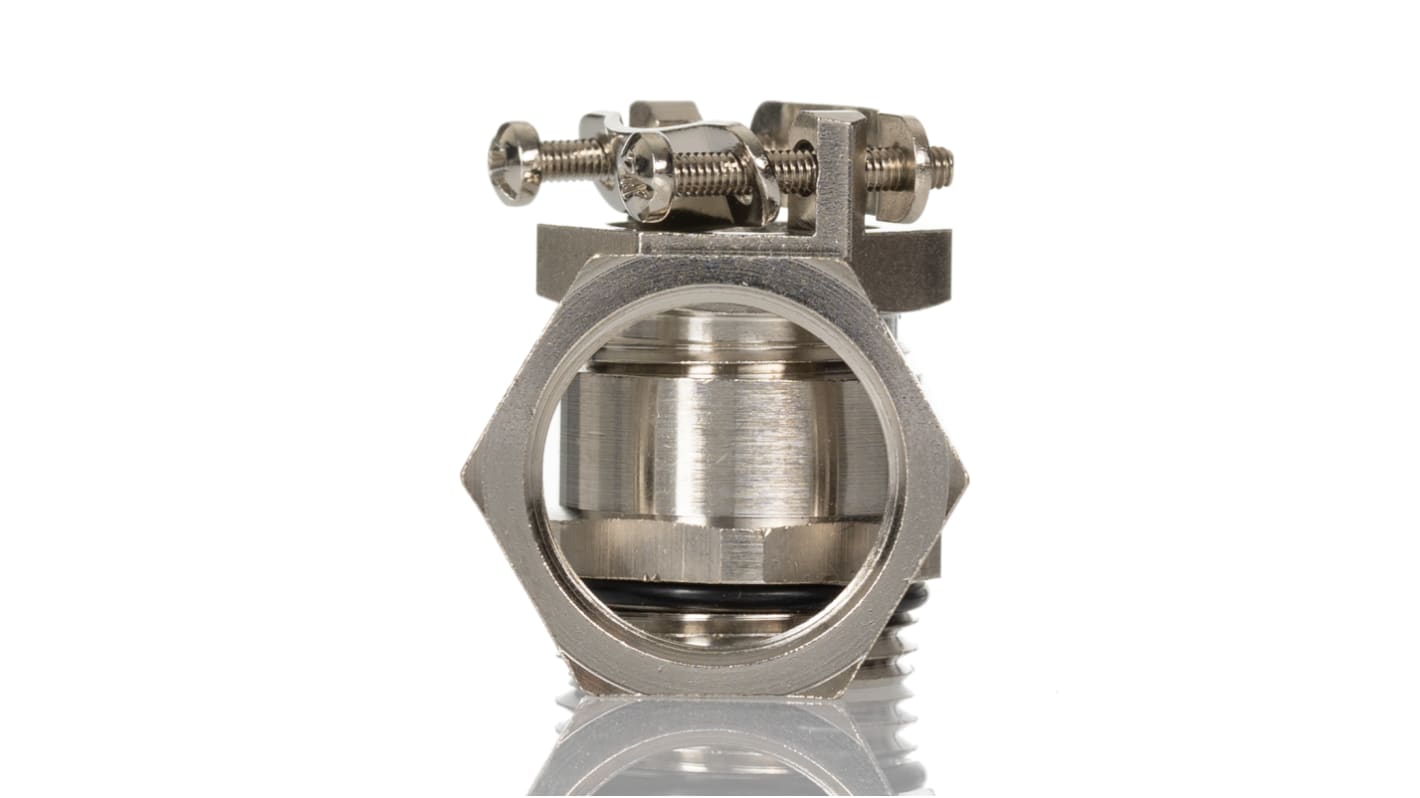

Lapp IP55 PG/Metric Strain Relief Gland
The Lapp IP55 Skindicht SKZ cable glands are equipped with two solid brass saddle clamps that guarantee reliable strain relief.
The nickel plated brass, double saddle clamp arrangement accommodates a wide range of cables, which are clamped concentrically.
Features and Benefits
Resistant to corrosion and the effects of sea water
High mechanical stability and strain relief
Wide clamping range
Operating temperature from -20° to +80°C
Typical Applications
These glands are suitable for applications on connectors, switches and consoles in harsh application conditions.
Supplied with
Lock nut
Lapp SKINDICHT Cable Gland, Metallic, IP55, Nickel Plated Brass, M20 - 52103320
This cable gland from Lapp offers high-quality performance with its metallic construction and IP55 rating. Made of nickel-plated brass with an M20 thread sise, this cable gland ensures secure cable connections while providing protection against varying temperatures.
Features & Benefits
• Counter nuts with cutting edges for optimal EMC contact
• Suitable for all metric glands used in earthing and EMC applications
• Temperature range of -40°C to +100°C for versatility
• Suitable for all metric glands used in earthing and EMC applications
• Temperature range of -40°C to +100°C for versatility
Applications
• Designed for use with lacquered, anodised, or powder-coated housings
Can the SKINDICHT SM-PE-M cable gland withstand high temperatures?
This cable gland has a temperature range of -40°C to +100°C, making it suitable for various environments.
Will the cutting edges of this cable gland ensure optimum EMC contact?
Yes, the cutting edges cut through the insulating layer to guarantee an ideal EMC contact.
Is the SKINDICHT SM-PE-M suitable for all metric glands used in earthing applications?
Yes, this cable gland is compatible with all metric glands used in earthing and EMC applications.
Specifications
Attribute | Value |
---|---|
Thread Size | M20 |
Maximum Cable Diameter | 12mm |
Minimum Cable Diameter | 7mm |
Material | Nickel Plated Brass |
Colour | Metallic |
Series | SKINDICHT |
IP Rating | IP55 |
Locknut Included | Yes |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -30°C |
Reference | SKINDICHT |
