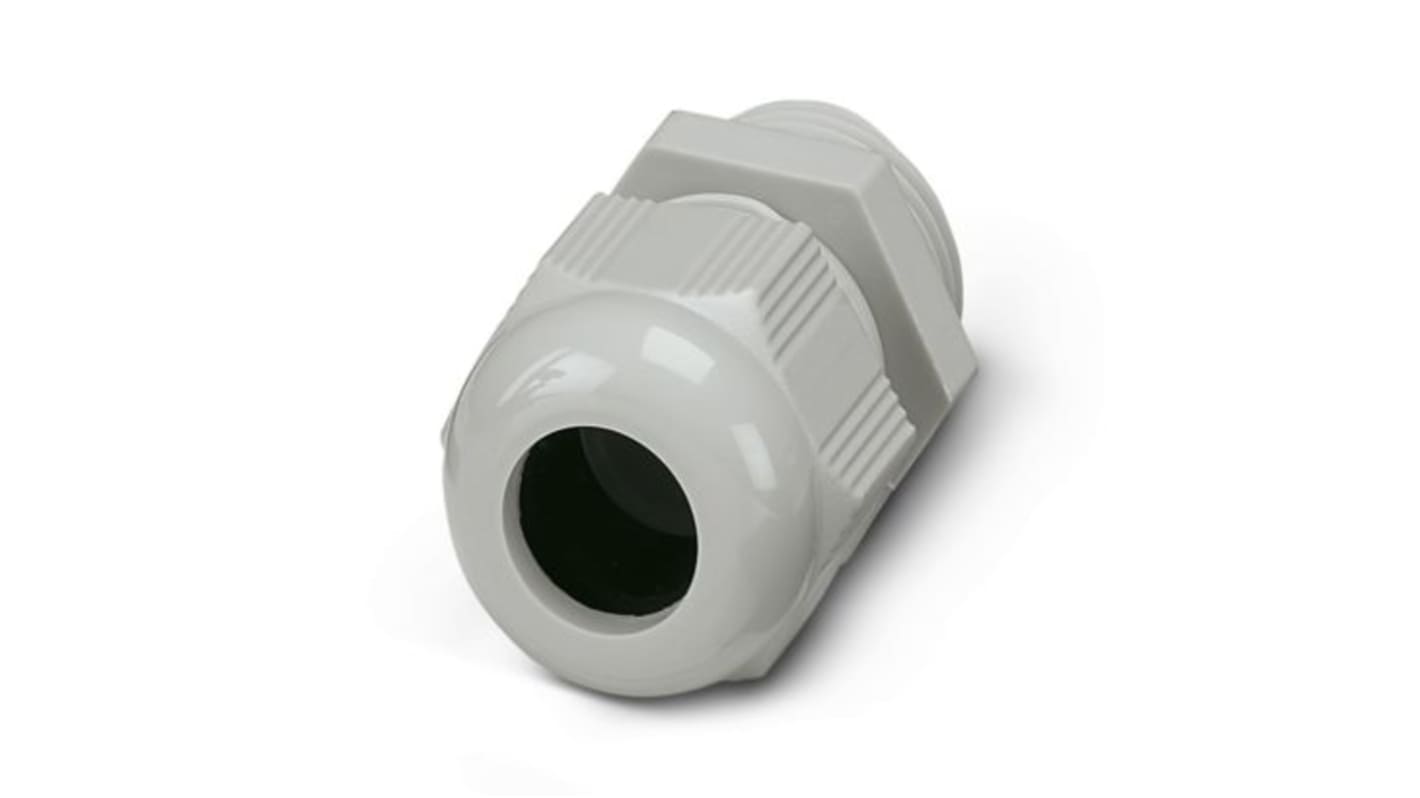

Phoenix Contact BM15 Series Light Grey Polyamide Cable Gland, M25 x 1.5 Thread, 13 mm min., 18 mm max., IP66, IP68

RS Stock No.:: 535-686
Mfr. Part No.:: 1424472
Brand:: Phoenix Contact

Phoenix Contact BM15 Series Light Grey Polyamide Cable Gland, M25 x 1.5 Thread, 13 mm min., 18 mm max., IP66, IP68

Subtotal (1 pack of 5 units)*

$10.17

(exc. GST)

$11.19

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

8 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Pack(s)	Per Pack	Per unit*
1 +	$10.17	$2.034

*price indicative

RS Stock No.:: 535-686
Mfr. Part No.:: 1424472
Brand:: Phoenix Contact

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Thread Size	M25 x 1.5
	Product Type	Cable Gland
	Maximum Cable Diameter	18mm
	Minimum Cable Diameter	13mm
	Material	Polyamide
	Colour	Light Grey
	Series	BM15
	IP Rating	IP66, IP68
	Hazardous Area Certification	No
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Standards/Approvals	CSA 115116, cUL E199260, DNV TAE00003WX, UL 514B, UL 746C f1, UL 94V-2, UL E199260

	Select all
	Brand Phoenix Contact
	Thread Size M25 x 1.5
	Product Type Cable Gland
	Maximum Cable Diameter 18mm
	Minimum Cable Diameter 13mm
	Material Polyamide
	Colour Light Grey
	Series BM15
	IP Rating IP66, IP68
	Hazardous Area Certification No
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Standards/Approvals CSA 115116, cUL E199260, DNV TAE00003WX, UL 514B, UL 746C f1, UL 94V-2, UL E199260

Datasheet - 1424472

COO (Country of Origin):: TR

The Phoenix Contact Cable Gland is designed with precision to enhance the integration and secure connection of cables within various industrial applications. Constructed from high quality PA material, it not only meets standard application requirements but also offers exceptional robustness against environmental factors. Its user friendly design ensures easy installation through a screw connection mechanism, facilitating a dependable seal that prevents ingress of dust and moisture. Its thoughtful engineering and compliance with industry standards make it suitable for diverse sectors, ensuring you can maintain operational efficiency while safeguarding your electrical installations.

Designed for straightforward assembly and reduced installation time

Minimalist design supports efficient use of space within cable management systems

Conforms to stringent industry standards enhancing reliability in critical applications

Incorporates various approvals assuring compliance with safety regulations

Highly versatile catering to numerous applications in different industries

Phoenix Contact BM15 Series Light Grey Polyamide Cable Gland, M25 x 1.5 Thread, 13 mm min., 18 mm max., IP66, IP68
