Texas Instruments SN74AVC1T45DCKT Bus Transceiver, 1-Bit Non-Inverting CMOS, 6-Pin SC-70
- RS Stock No.:
- 660-7367
- Mfr. Part No.:
- SN74AVC1T45DCKT
- Brand:
- Texas Instruments

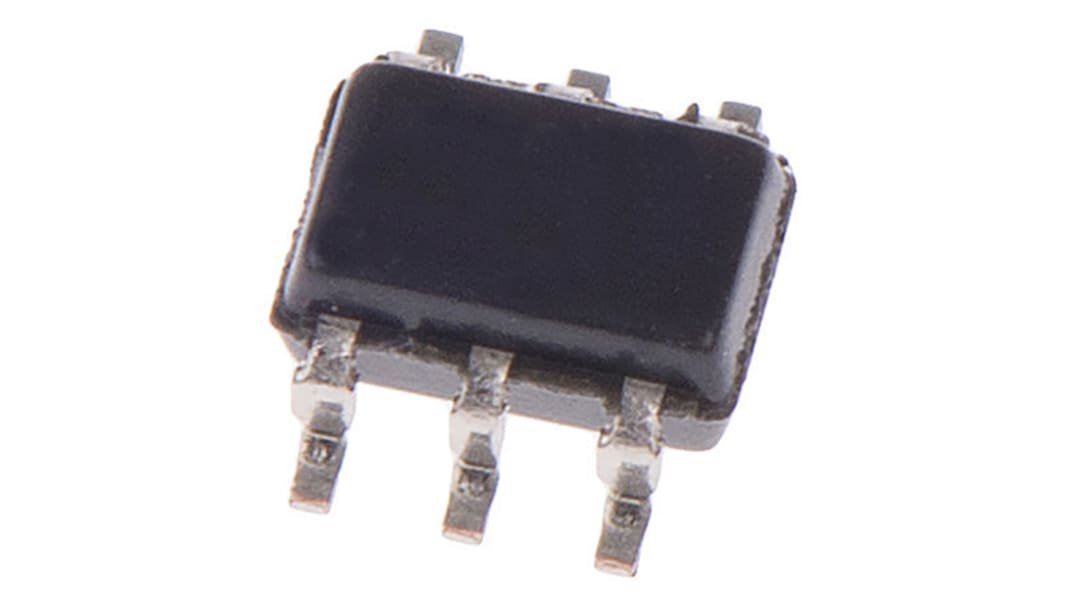

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
$5.85
(exc. GST)
$6.45
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 2,760 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 60 | $1.17 | $5.85 |
| 65 - 120 | $1.156 | $5.78 |
| 125 + | $1.134 | $5.67 |
*price indicative
- RS Stock No.:
- 660-7367
- Mfr. Part No.:
- SN74AVC1T45DCKT
- Brand:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Bus Transceiver | |
| Logic Family | AVC | |
| Logic Function | Bus Transceiver | |
| Number of Channels | 1 | |
| Polarity | Non-Inverting | |
| Mount Type | Surface | |
| Package Type | SC-70 | |
| Minimum Supply Voltage | 1.2V | |
| Pin Count | 6 | |
| Maximum Supply Voltage | 3.6V | |
| Input Level | CMOS | |
| Output Level | CMOS | |
| Maximum Propagation Delay Time @ CL | 2.7ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -12mA | |
| Maximum Operating Temperature | 85°C | |
| Length | 2mm | |
| Series | SN74AVC1T45 | |
| Standards/Approvals | No | |
| Maximum Low Level Output Current | 12mA | |
| Width | 1.25 mm | |
| Height | 0.9mm | |
| Output Type | 3 State | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Bus Transceiver | ||
Logic Family AVC | ||
Logic Function Bus Transceiver | ||
Number of Channels 1 | ||
Polarity Non-Inverting | ||
Mount Type Surface | ||
Package Type SC-70 | ||
Minimum Supply Voltage 1.2V | ||
Pin Count 6 | ||
Maximum Supply Voltage 3.6V | ||
Input Level CMOS | ||
Output Level CMOS | ||
Maximum Propagation Delay Time @ CL 2.7ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -12mA | ||
Maximum Operating Temperature 85°C | ||
Length 2mm | ||
Series SN74AVC1T45 | ||
Standards/Approvals No | ||
Maximum Low Level Output Current 12mA | ||
Width 1.25 mm | ||
Height 0.9mm | ||
Output Type 3 State | ||
Automotive Standard No | ||
74AVCxT Family, Texas Instruments
Advanced Very Low-Voltage CMOS logic
Single gate package
Operating Voltage: 1.2 to 3.6
Compatibility: Input LVCMOS, Output LVCMOS
Latch-up performance exceeds 100 mA per JESD 78 Class II
ESD protection exceeds JESD 22
74AVCxT Family
