Nexperia 74LVC4245ADB,112, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SSOP

RS Stock No.:: 380-0493
Mfr. Part No.:: 74LVC4245ADB,112
Brand:: Nexperia

Nexperia 74LVC4245ADB,112, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SSOP

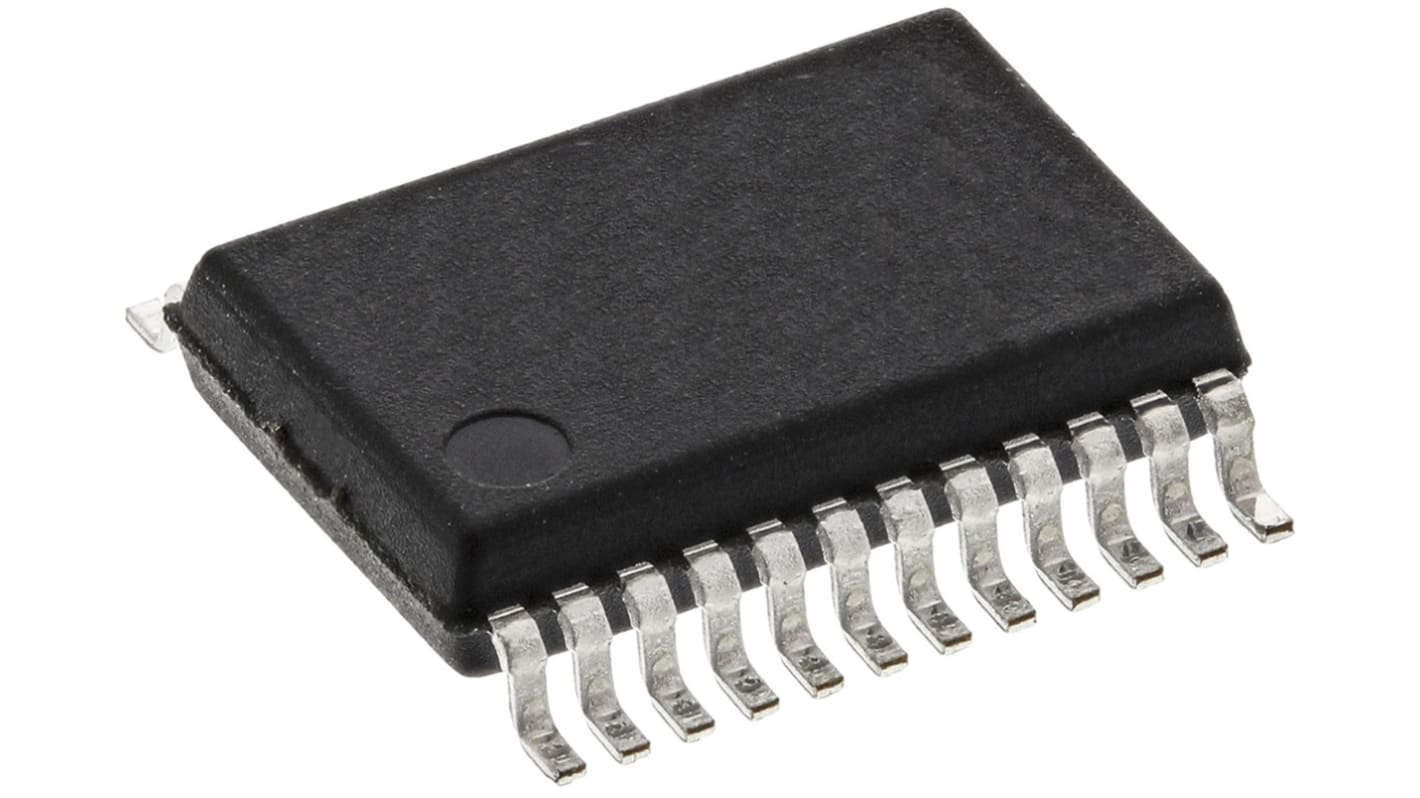

This image is representative of the product range

Price Each**

$1.10

(exc. GST)

$1.21

(inc. GST)

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 +	$1.10

**price indicative

RS Stock No.:: 380-0493
Mfr. Part No.:: 74LVC4245ADB,112
Brand:: Nexperia

Octal Dual Supply Translating Transceiver 3-state Datasheet
ESD Control Selection Guide V1

Attribute	Value
Logic Family	LVC
Logic Function	Bus Transceiver
Number of Elements per Chip	1
Number of Channels per Chip	8
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SSOP
Pin Count	24
Input Level	LVTTL
Output Level	LVTTL
Maximum High Level Output Current	-24mA
Maximum Low Level Output Current	24mA
Maximum Propagation Delay Time @ Maximum CL	3.6 ns@ 5 V
Propagation Delay Test Condition	50pF
Dimensions	8.4 x 5.4 x 1.8mm
Height	1.8mm
Minimum Operating Supply Voltage	1.5 V
Width	5.4mm
Minimum Operating Temperature	-40 °C
Maximum Operating Supply Voltage	3.6 V, 5.5 V
Maximum Operating Temperature	+125 °C
Length	8.4mm

Nexperia 74LVC4245ADB,112, 1 Bus Transceiver, 8-Bit Non-Inverting LVTTL, 24-Pin SSOP
