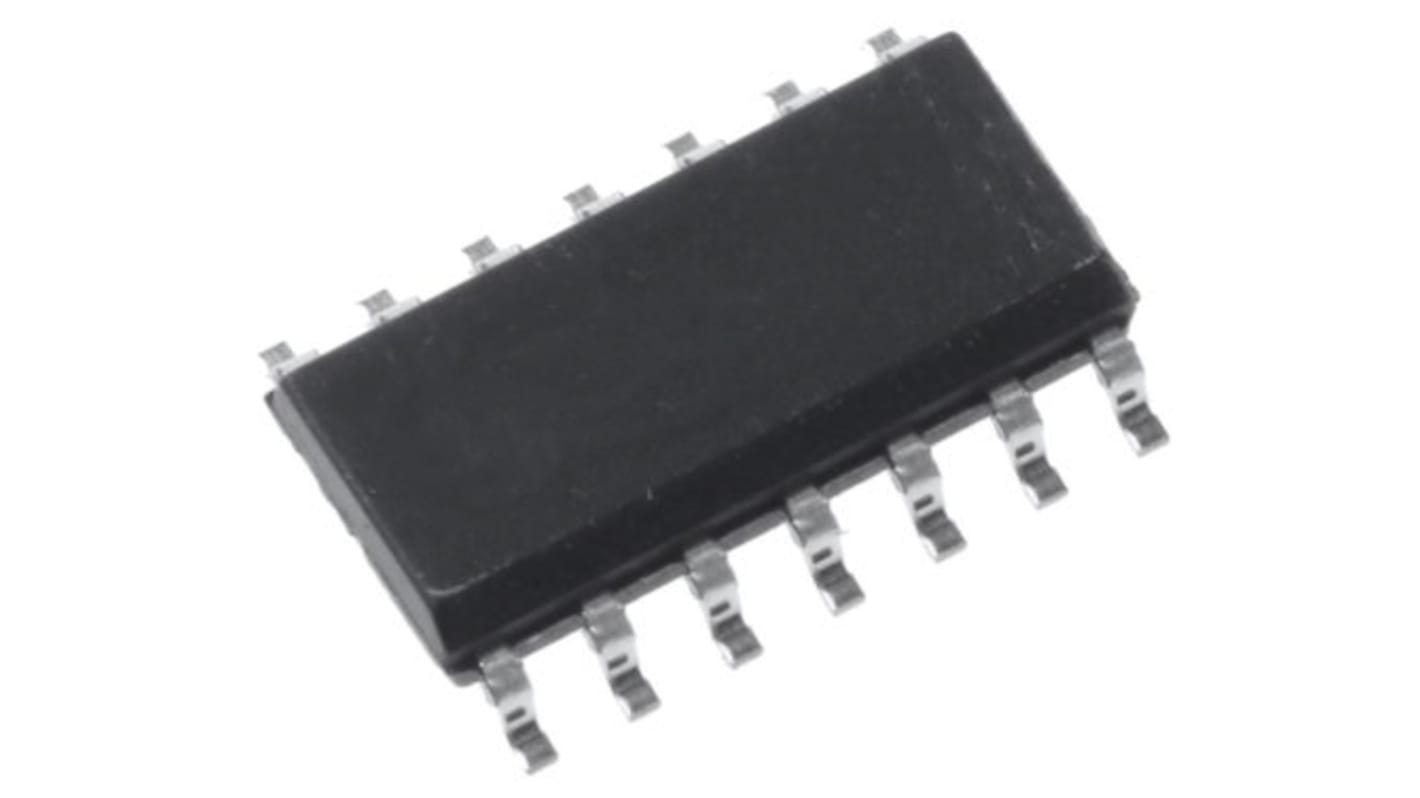

onsemi MC74LCX125DG, 4-Channel Non-Inverting 3 State Buffer, 14-Pin SOIC
- RS Stock No.:
- 186-8396
- Mfr. Part No.:
- MC74LCX125DG
- Brand:
- onsemi
This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
$17.95
(exc. GST)
$19.75
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | $0.718 | $17.95 |
| 125 + | $0.71 | $17.75 |
*price indicative
- RS Stock No.:
- 186-8396
- Mfr. Part No.:
- MC74LCX125DG
- Brand:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | LCX | |
| Product Type | Buffer | |
| Logic Function | Buffer | |
| Number of Channels | 4 | |
| Schmitt Trigger Input | No | |
| Input Type | TTL | |
| Mount Type | Surface | |
| Output Type | 3 State | |
| Polarity | Non-Inverting | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 2.3V | |
| Maximum Supply Voltage | 3.6V | |
| Pin Count | 14 | |
| Maximum High Level Output Current | -24mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 7.2ns | |
| Maximum Operating Temperature | 85°C | |
| Maximum Low Level Output Current | 24mA | |
| Standards/Approvals | No | |
| Width | 4 mm | |
| Series | MC74LCX125 | |
| Height | 1.5mm | |
| Length | 8.75mm | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 10μA | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Logic Family LCX | ||
Product Type Buffer | ||
Logic Function Buffer | ||
Number of Channels 4 | ||
Schmitt Trigger Input No | ||
Input Type TTL | ||
Mount Type Surface | ||
Output Type 3 State | ||
Polarity Non-Inverting | ||
Package Type SOIC | ||
Minimum Supply Voltage 2.3V | ||
Maximum Supply Voltage 3.6V | ||
Pin Count 14 | ||
Maximum High Level Output Current -24mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 7.2ns | ||
Maximum Operating Temperature 85°C | ||
Maximum Low Level Output Current 24mA | ||
Standards/Approvals No | ||
Width 4 mm | ||
Series MC74LCX125 | ||
Height 1.5mm | ||
Length 8.75mm | ||
Automotive Standard AEC-Q100 | ||
Supply Current 10μA | ||
The MC74LCX125 is a high performance, non-inverting quad buffer operating from a 2.3 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX125 inputs to be safely driven from 5V devices. The MC74LCX125 is suitable for memory address driving and all TTL level bus oriented transceiver applications. Current drive capability is 24mA at the outputs. The Output Enable(OEnbar) inputs, when HIGH, disable the outputs by placing them in a HIGH Z condition.
Designed for 2.3 to 3.6V V CC Operation
5V Tolerant - Interface Capability With 5V TTL Logic
Supports Live Insertion and Withdrawal
IOFF Specification Guarantees High Impedance When VCC = 0V
LVTTL Compatible
LVCMOS Compatible
24mA Balanced Output Sink and Source Capability
Near Zero Static Supply Current in All Three Logic States (10mA) Substantially Reduces System Power Requirements
Latchup Performance Exceeds 500mA
ESD Performance: Human Body Model >2000V, Machine Model >200V
