- RS Stock No.:
- 825-3669
- Mfr. Part No.:
- TLV61225DCKT
- Brand:
- Texas Instruments
815 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 5)
$2.134
(exc. GST)
$2.347
(inc. GST)
Units | Per unit | Per Pack* |
5 - 60 | $2.134 | $10.67 |
65 - 120 | $2.08 | $10.40 |
125 + | $2.048 | $10.24 |
*price indicative |
- RS Stock No.:
- 825-3669
- Mfr. Part No.:
- TLV61225DCKT
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Up (Boost) DC/DC Converters (Integrated Switch), Texas Instruments
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
---|---|
Regulator Function | Boost Converter |
Maximum Output Current | 400mA |
Number of Outputs | 1 |
Maximum Input Voltage | 3.3 V |
Line Regulation | 0.5 % |
Load Regulation | 0.5 % |
Mounting Type | Surface Mount |

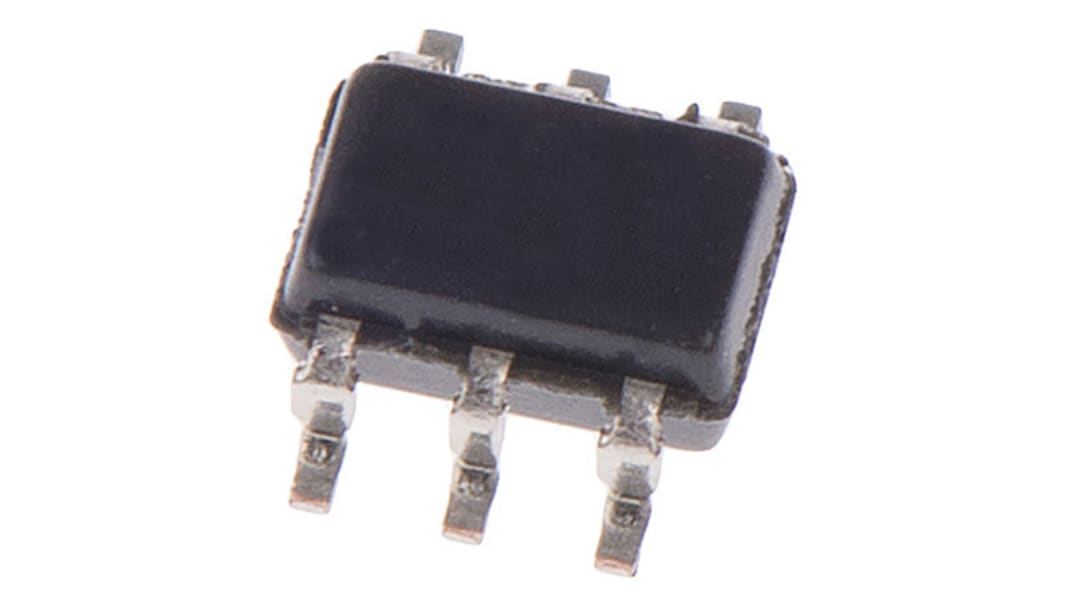

Package Type | SC-70 |
Pin Count | 6 |
Output Type | Fixed |
Dimensions | 2.15 x 1.4 x 1mm |
Height | 1mm |
Maximum Output Voltage | 3.3 V |
Width | 1.4mm |
Maximum Operating Temperature | +150 °C |
Length | 2.15mm |
Minimum Operating Temperature | -40 °C |
Minimum Input Voltage | 0.7 V |
