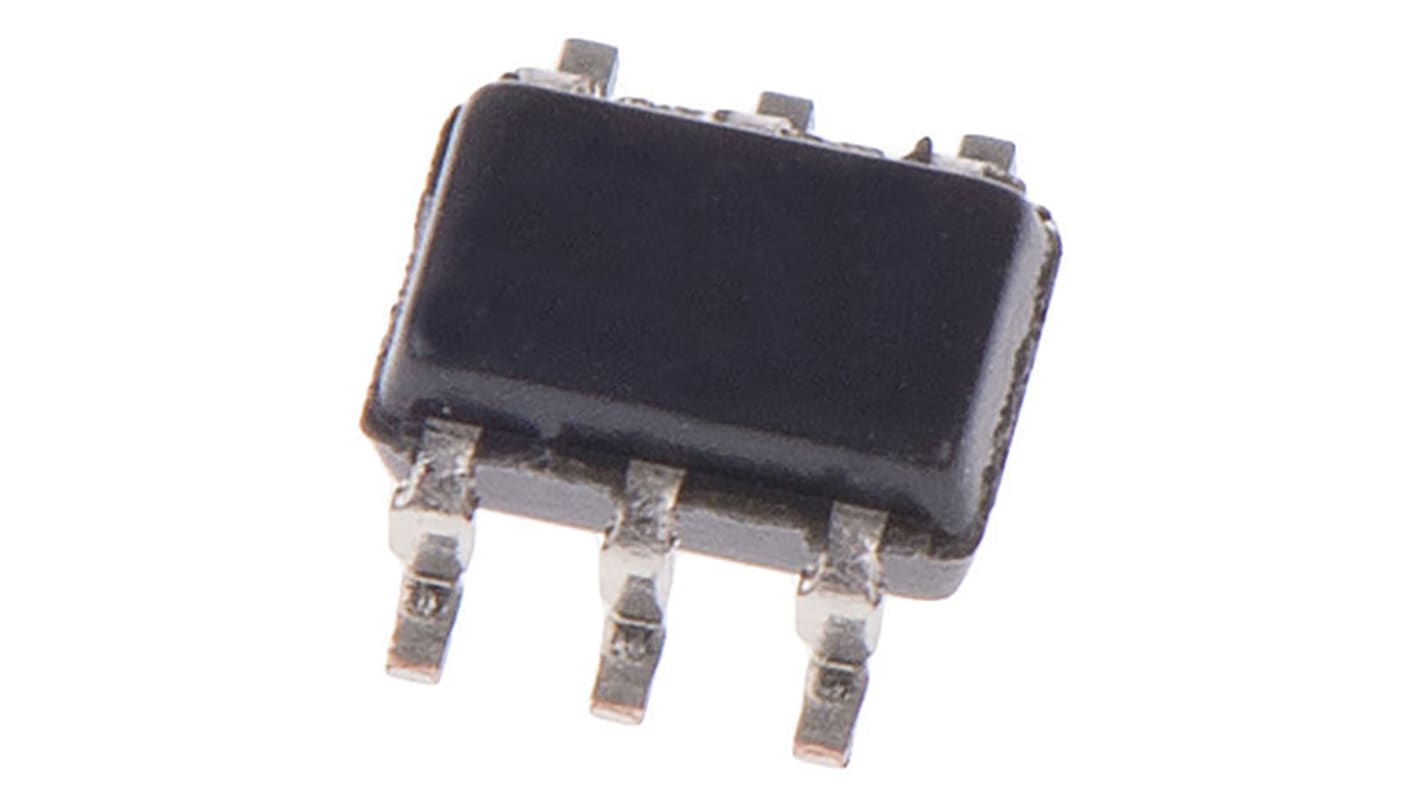

- RS Stock No.:
- 822-6828
- Mfr. Part No.:
- LTC3525ESC6-3.3#TRMPBF
- Brand:
- Analog Devices
18 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 2)
$8.44
(exc. GST)
$9.28
(inc. GST)
Units | Per unit | Per Pack* |
2 + | $8.44 | $16.88 |
*price indicative |
- RS Stock No.:
- 822-6828
- Mfr. Part No.:
- LTC3525ESC6-3.3#TRMPBF
- Brand:
- Analog Devices
Technical data sheets
Legislation and Compliance
Product Details
Step-Up (Boost) Regulators, Micropower Boost Regulators, Linear Technology
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
Specifications
Attribute | Value |
---|---|
Maximum Output Voltage | 3.3 V |
Minimum Input Voltage | 1 V |
Maximum Input Voltage | 1.6 V |
Maximum Output Current | 400mA |
Converter Type | Step Up |
Number of Outputs | 1 |
Output Type | Fixed |
Mounting Type | Surface Mount |
Package Type | SC-70 |
Pin Count | 6 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Length | 2.2mm |
Dimensions | 2.2 x 1.35 x 0.9mm |
Width | 1.35mm |
Height | 0.9mm |
