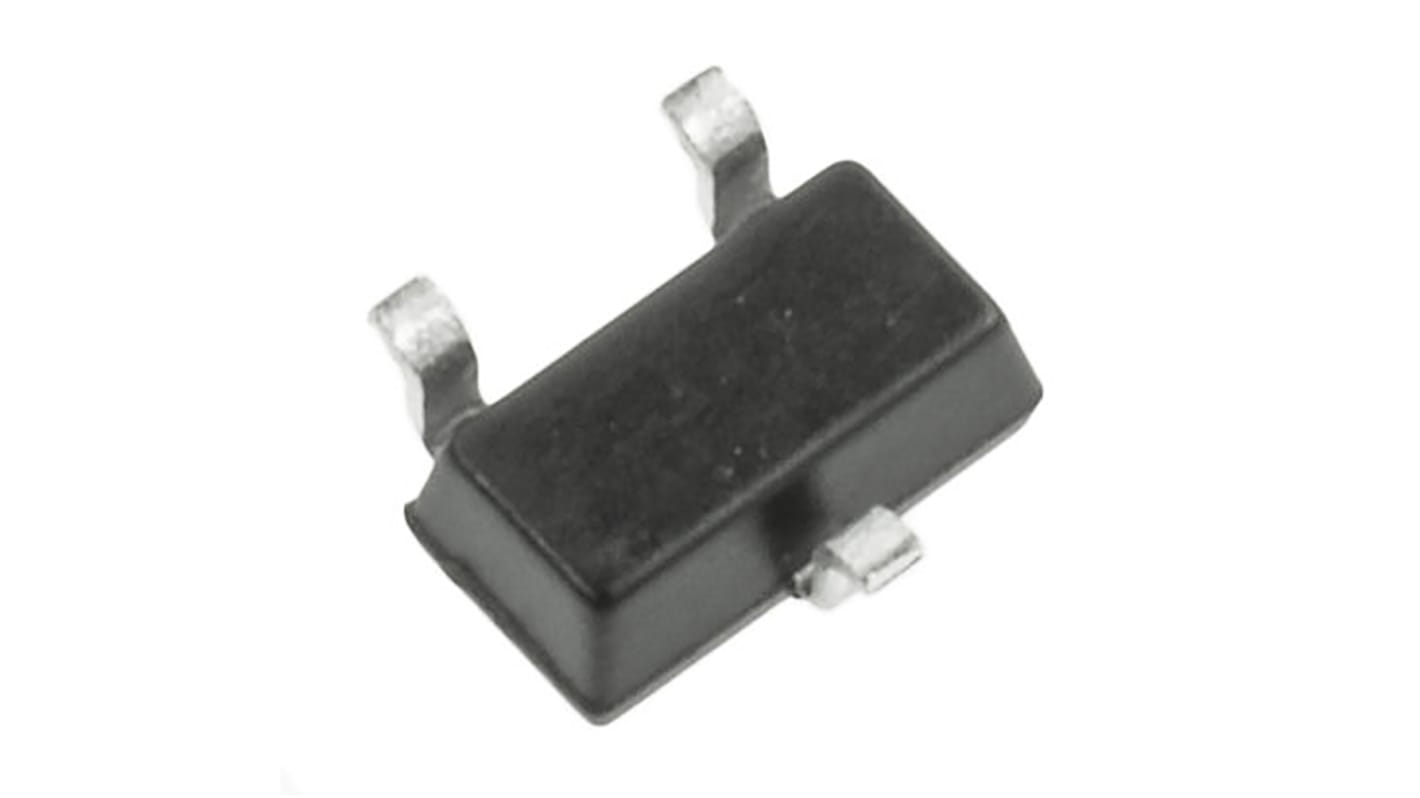

Name: Infineon BCR196WH6327XTSA1 PNP Digital Transistor, 50 V, 3-Pin SOT-323
Brand: Infineon
SKU: 857-8337
Price: 0.10 AUD
Availability: Discontinued

Dual Resistor Digital Transistors, Infineon

A range of bipolar junction transistors from Infineon equipped with integrated resistors allowing the devices to be directly driven from digital sources without additional components. Dual resistor devices have a series input resistor plus a resistor connected between the transistor base and emitter.

Digital Transistors, Infineon

Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.

Select all	Attribute	Value
	Brand	Infineon
	Transistor Type	PNP
	Maximum Collector Emitter Voltage	50 V
	Package Type	SOT-323 (SC-70)
	Mounting Type	Surface Mount
	Maximum Power Dissipation	250 mW
	Transistor Configuration	Single
	Maximum Emitter Base Voltage	10 V
	Pin Count	3
	Number of Elements per Chip	1
	Maximum Operating Temperature	+150 °C
	Typical Resistor Ratio	2.13
	Typical Input Resistor	47 kΩ
	Dimensions	2 x 1.25 x 0.8mm

	Select all
	Brand Infineon
	Transistor Type PNP
	Maximum Collector Emitter Voltage 50 V
	Package Type SOT-323 (SC-70)
	Mounting Type Surface Mount
	Maximum Power Dissipation 250 mW
	Transistor Configuration Single
	Maximum Emitter Base Voltage 10 V
	Pin Count 3
	Number of Elements per Chip 1
	Maximum Operating Temperature +150 °C
	Typical Resistor Ratio 2.13
	Typical Input Resistor 47 kΩ
	Dimensions 2 x 1.25 x 0.8mm
