NSK-RHP Bearing Insert 30 mm ID 62 mm OD J1030-30GCR
- RS Stock No.:
- 192-9886
- Mfr. Part No.:
- J1030-30GCR
- Brand:
- NSK-RHP

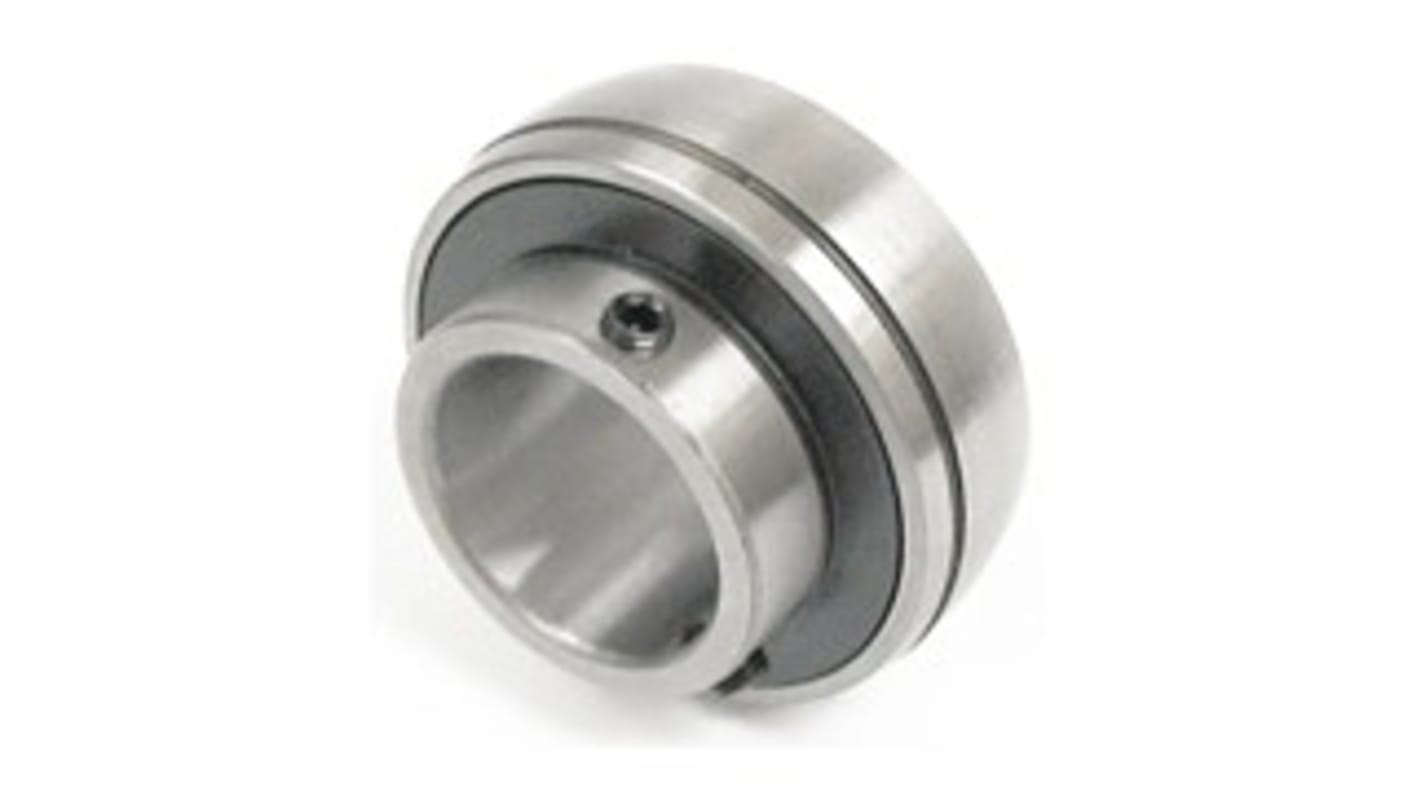

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$158.26
(exc. GST)
$174.09
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $158.26 |
| 13 - 24 | $151.92 |
| 25 + | $148.78 |
*price indicative
- RS Stock No.:
- 192-9886
- Mfr. Part No.:
- J1030-30GCR
- Brand:
- NSK-RHP
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK-RHP | |
| Inside Diameter | 30 mm | |
| Product Type | Bearing Insert | |
| Outside Diameter | 62 mm | |
| Material | Stainless Steel | |
| Static Load Rating | 9050N | |
| Locking Type | Set Screw | |
| Dynamic Load Rating | 15000N | |
| Standards/Approvals | No | |
| Overall Width | 38.1mm | |
| Bore Type | Round | |
| Series | J1020 | |
| Limiting Speed | 2180rpm | |
| Select all | ||
|---|---|---|
Brand NSK-RHP | ||
Inside Diameter 30 mm | ||
Product Type Bearing Insert | ||
Outside Diameter 62 mm | ||
Material Stainless Steel | ||
Static Load Rating 9050N | ||
Locking Type Set Screw | ||
Dynamic Load Rating 15000N | ||
Standards/Approvals No | ||
Overall Width 38.1mm | ||
Bore Type Round | ||
Series J1020 | ||
Limiting Speed 2180rpm | ||
- COO (Country of Origin):
- GB
Stainless Insert for 30mm Shaft 62x38.1x16mm
