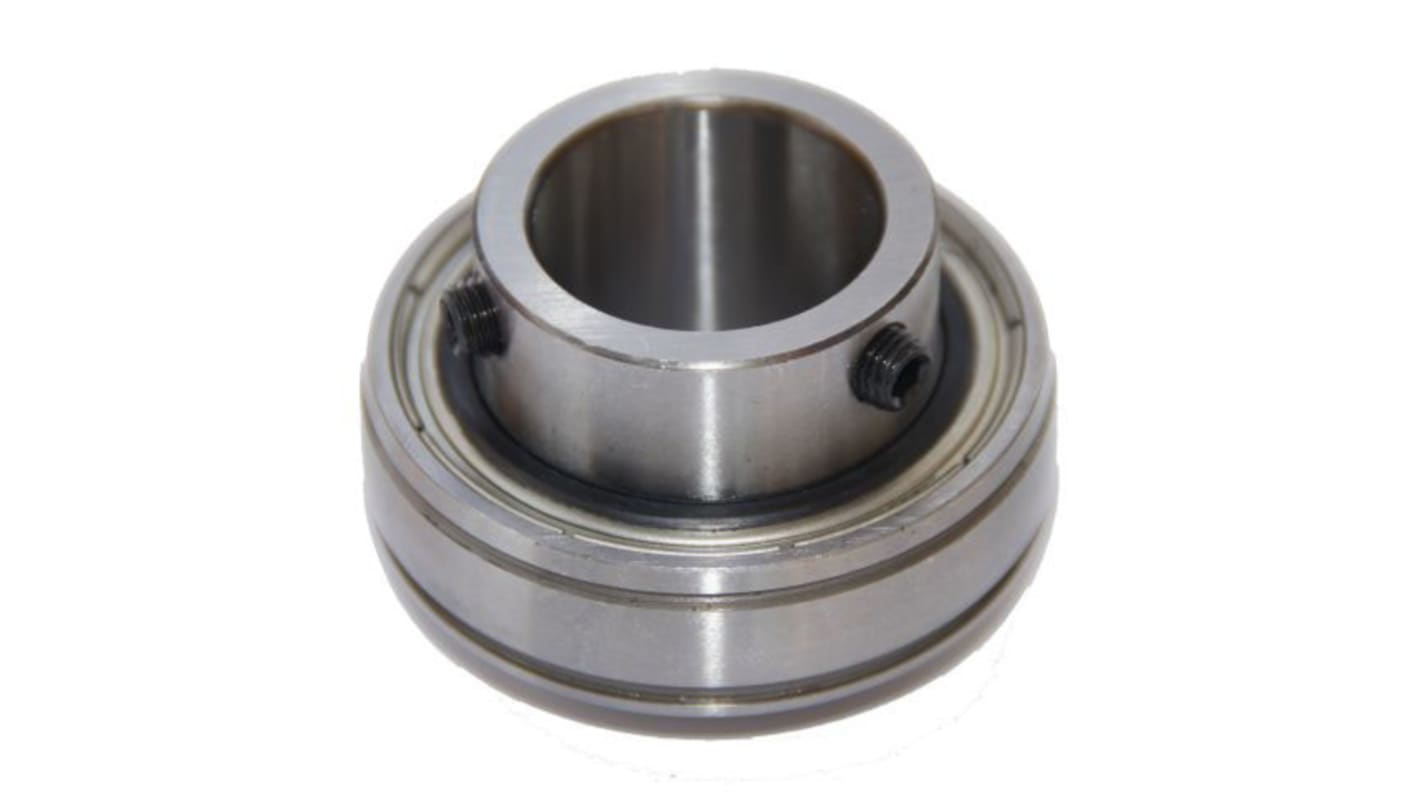

NSK-RHP Bearing Insert 20 mm ID 47 mm OD 1120-20CG
- RS Stock No.:
- 192-9869
- Mfr. Part No.:
- 1120-20CG
- Brand:
- NSK-RHP
This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$55.44
(exc. GST)
$60.98
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 05 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $55.44 |
| 13 - 24 | $54.36 |
| 25 + | $52.89 |
*price indicative
- RS Stock No.:
- 192-9869
- Mfr. Part No.:
- 1120-20CG
- Brand:
- NSK-RHP
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK-RHP | |
| Product Type | Bearing Insert | |
| Inside Diameter | 20mm | |
| Outside Diameter | 47mm | |
| Material | Steel | |
| Static Load Rating | 6650N | |
| Dynamic Load Rating | 12800N | |
| Locking Type | Set Screw | |
| Bore Type | Round | |
| Standards/Approvals | No | |
| Overall Width | 15.88mm | |
| Series | NSK | |
| Limiting Speed | 6700rpm | |
| Select all | ||
|---|---|---|
Brand NSK-RHP | ||
Product Type Bearing Insert | ||
Inside Diameter 20mm | ||
Outside Diameter 47mm | ||
Material Steel | ||
Static Load Rating 6650N | ||
Dynamic Load Rating 12800N | ||
Locking Type Set Screw | ||
Bore Type Round | ||
Standards/Approvals No | ||
Overall Width 15.88mm | ||
Series NSK | ||
Limiting Speed 6700rpm | ||
Self lube Bearing Insert 20mm Shaft 20x47x31
