SKF 619/8-2Z 1 Row Ball Bearing - 8 mm ID, 19 mm OD
- RS Stock No.:
- 207-7032
- Mfr. Part No.:
- 619/8-2Z
- Brand:
- SKF
Subtotal (1 unit)*
$31.54
(exc. GST)
$34.69
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 94 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $31.54 |
*price indicative
- RS Stock No.:
- 207-7032
- Mfr. Part No.:
- 619/8-2Z
- Brand:
- SKF
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 8mm | |
| Outside Diameter | 19mm | |
| Race Width | 6mm | |
| Cage Material | Sheet Metal | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Double Shielded | |
| Number of Rows | 1 | |
| Static Load Rating | 465kN | |
| Dynamic Load Rating | 1.46kN | |
| Standards/Approvals | No | |
| Series | 619/8-2Z | |
| Bore Type | Parallel | |
| Limiting Speed | 43000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Flange Outside Diameter | 19mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 8mm | ||
Outside Diameter 19mm | ||
Race Width 6mm | ||
Cage Material Sheet Metal | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Double Shielded | ||
Number of Rows 1 | ||
Static Load Rating 465kN | ||
Dynamic Load Rating 1.46kN | ||
Standards/Approvals No | ||
Series 619/8-2Z | ||
Bore Type Parallel | ||
Limiting Speed 43000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
Flange Outside Diameter 19mm | ||

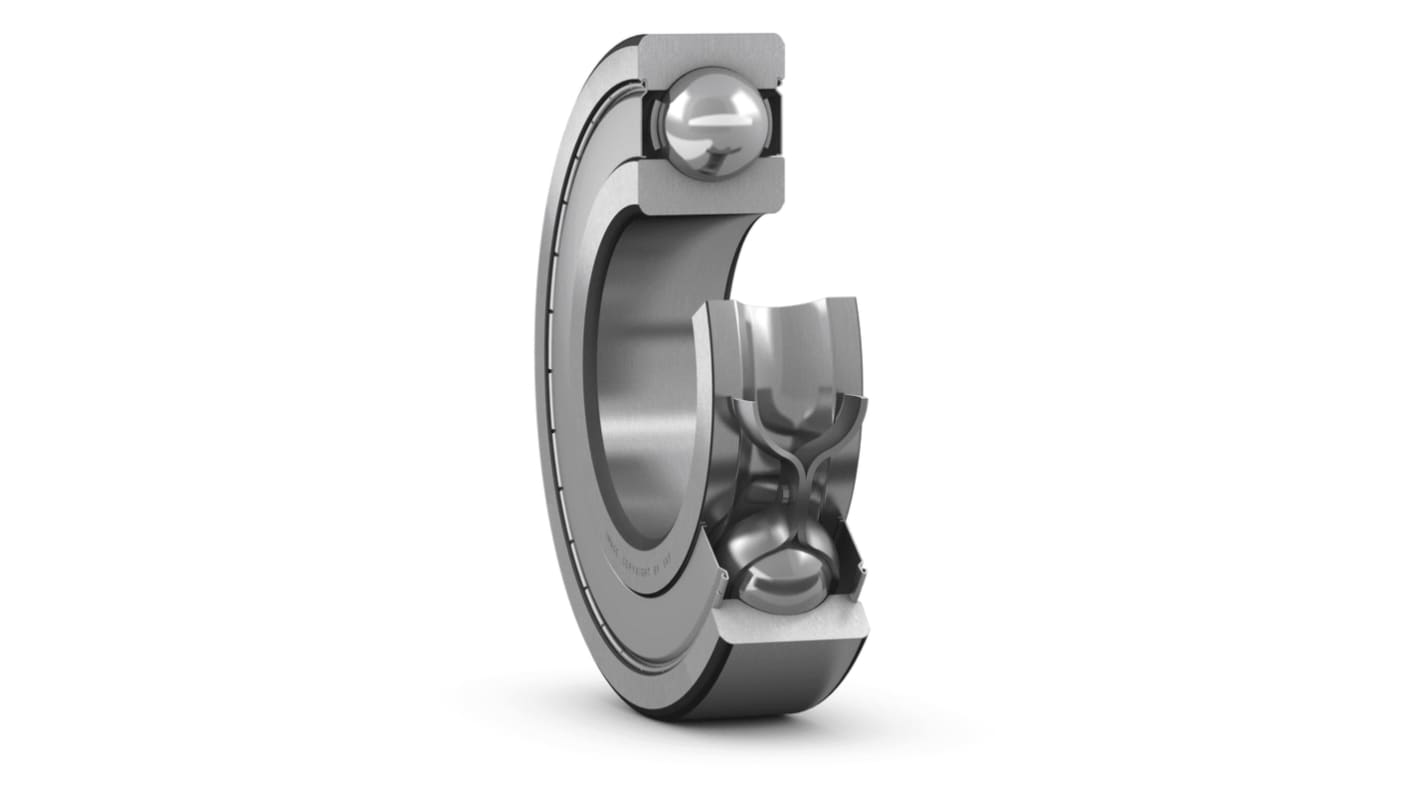

SKF Ball Bearing, Deep-Groove Bearing Type, Shielded, 8mm ID, 19mm OD - 619/8-2Z
When there's a need for speed, use this single-row ball bearing from SKF to support your machines and motors. It has a deep-groove raceway to accommodate radial and axial loads in both directions while reducing friction and vibration. This means it can continuously turn at 43,000rpm without any problems. Shielding on both sides keeps the rolling parts lubricated and stops dirt from getting inside, so you can expect a long service life with little maintenance.
Features & Benefits
• Simple cylindrical design makes it easy to mount
• Dynamic load rating of 1.46kN to handle heavy forces while in motion
• Stainless steel material gives it strength and resistance to corrosion
Applications
• Pumps and fans
• Conveyors
• Machine tools
• Motors
• Domestic appliances
Does this ball bearing need a lot of mounting space?
Not at all. This ball bearing has an inside diameter of 8mm and an outside diameter of 19mm, so you can slot it into small appliances, power tools and motors. A race width of 6mm means there's no trouble squeezing onto a shaft in setups where space is at a premium.
